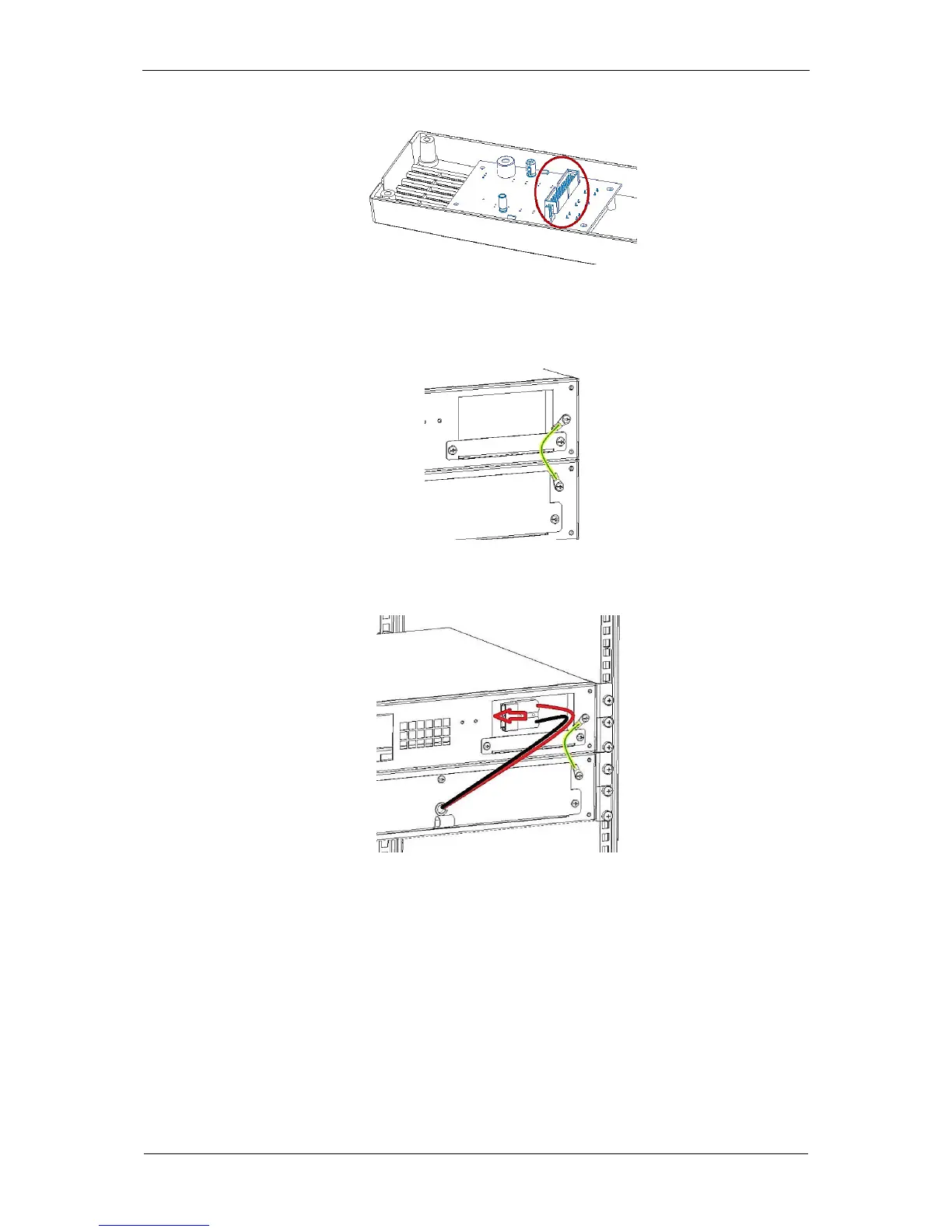

6. Disconnect the conductors from the front panel (Fig. 33).
Fig. 33: Disconnecting the conductors
7. Connect the yellow and green earthing conductor between the battery module
and the UPS (Fig. 34).
Fig. 34: Connecting the PE conductor
8. Connect the battery module's terminal to the UPS battery terminal (Fig. 35).
Fig. 35: Connecting the terminals of the battery module and the UPS
9. Remove the caps (A) in the bottom right of the UPS unit's front panel (Fig. 36)
and the bottom right of the batter module front panel (Fig. 37). To remove the
cap, make a cut in it first and then break it away (Fig. 38).
