66
Electrical System
Windlass Up/Windlass Down
Two momentary switches that control the wind-
lass, which is mounted in a compartment below
the deck at the bow. Press and hold the WIND-
LASS DOWN switch to pay the anchor line out.
Press and hold the WINDLASS UP switch to pull
the anchor line in. The switches return to the OFF
position when released.
Starboard Hardtop Switch Panel
The following is a description of the accessories
controlled by the starboard accessory switch panel
in the hardtop above the helm:
Fresh Water
Activates the pump that supplies water pres-
sure for the fresh water system. The pump is
the pressure demand type. A pressure switch
automatically controls the water pump when the
system is activated and properly primed.
Raw Water
Activates the seawater system pump that supplies
the raw water washdown hose connector in the cock-
pit. The pump is the pressure demand type. A pres-
sure switch automatically controls the water pump
when the system is activated and properly primed.
Fishbox
Activates the macerator pump that drains the forward
shbox.
BW Pumps & Lights
Activates the pumps that supply seawater to the
baitwells. Also activates the baitwell Lights.
Aft Bilge Pump 1
Manually activates aft bilge pump #1 located
in the aft systems compartment bilge near the
transom. The pump moves water out a thru-hull
tting in the hull. The pump is also activated by
an automatic switch whenever the batteries are
connected. This pump will run as needed when-
ever water in the bilge accumulates high enough
to be activated by the automatic switch and turn
o when the water is removed.
Aft Bilge Pump 2
Manually activates the aft emergency bilge pump
# 2 located behind the aft bilge pump in the aft
systems compartment bilge near the transom.
The pump moves water out a thru-hull tting in the
hull. The pump is also activated by an automatic
switch whenever the batteries are connected. This
pump will run as needed whenever water in the
bilge accumulates high enough to be activated by
the automatic switch and turn o when the water
is removed.
Notice:
The bilge pumps will start automatically
when there is sucient water in the bilge
to activate the oat switch. Each automatic
switch is protected by a labeled fuse located
in a panel behind the helm and are always
supplied current when the batteries are con-
nected.
Windshield Up/Windshield Down
Two momentary switches that activate the hy-
draulic rams that raise and lower the windshield
to provide ventilation for the helm area and/or im-
prove visibility. Press and hold the DOWN switch
to lower the windshield. Press and hold the UP
switch to raise the windshield. The switches return
to the OFF position when released.

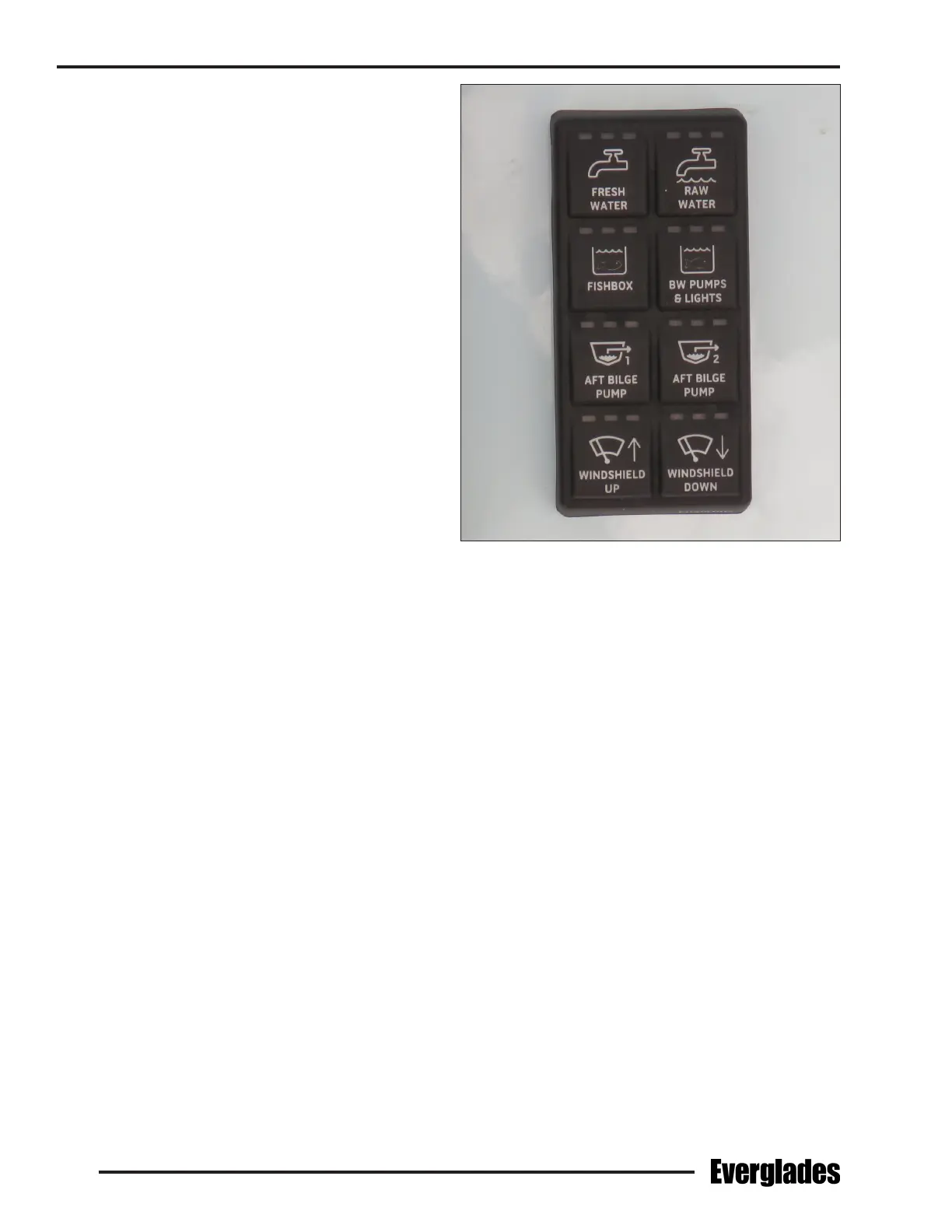

Starboard Hardtop Switch Panel
