Electrical System
Digital DC Electrical System Control
Output Module Circuit Protection
Accessory circuits activated by the digital switches
are protected by circuit breakers located in the
output modules. The circuits controlled by each
module are numbered and labeled for the acces-
sory activated and protected by the module.
Most main circuit breakers are located behind
access door in aft head compartment or near the
battery switches in the aft systems compartment.
The modules are located behind the helm, behind
hardtop instrument panel and near the House
battery switch in the aft systems compartment.
To reset a circuit breaker in a control module,
use the arrow buttons to scroll to the circuit with
the blown breaker. Then press the RESET/AUTO
switch to reset the breaker.
In addition to circuit protection, the control mod-
ules are equipped with a manual circuit bypass
feature that allows any circuit controlled by an
output module to be activated manually.
To bypass the controller and activate a circuit
manually, use the arrow buttons to scroll to the
circuit that needs to be activated. Then press the
MAN ON/MAN OFF switch to activate the circuit.
Press the MAN ON/MAN OFF switch again to de-
activate the circuit.
Refer to the Garmin digital switching system op-
eration manual for additional information on the
digital switching system.

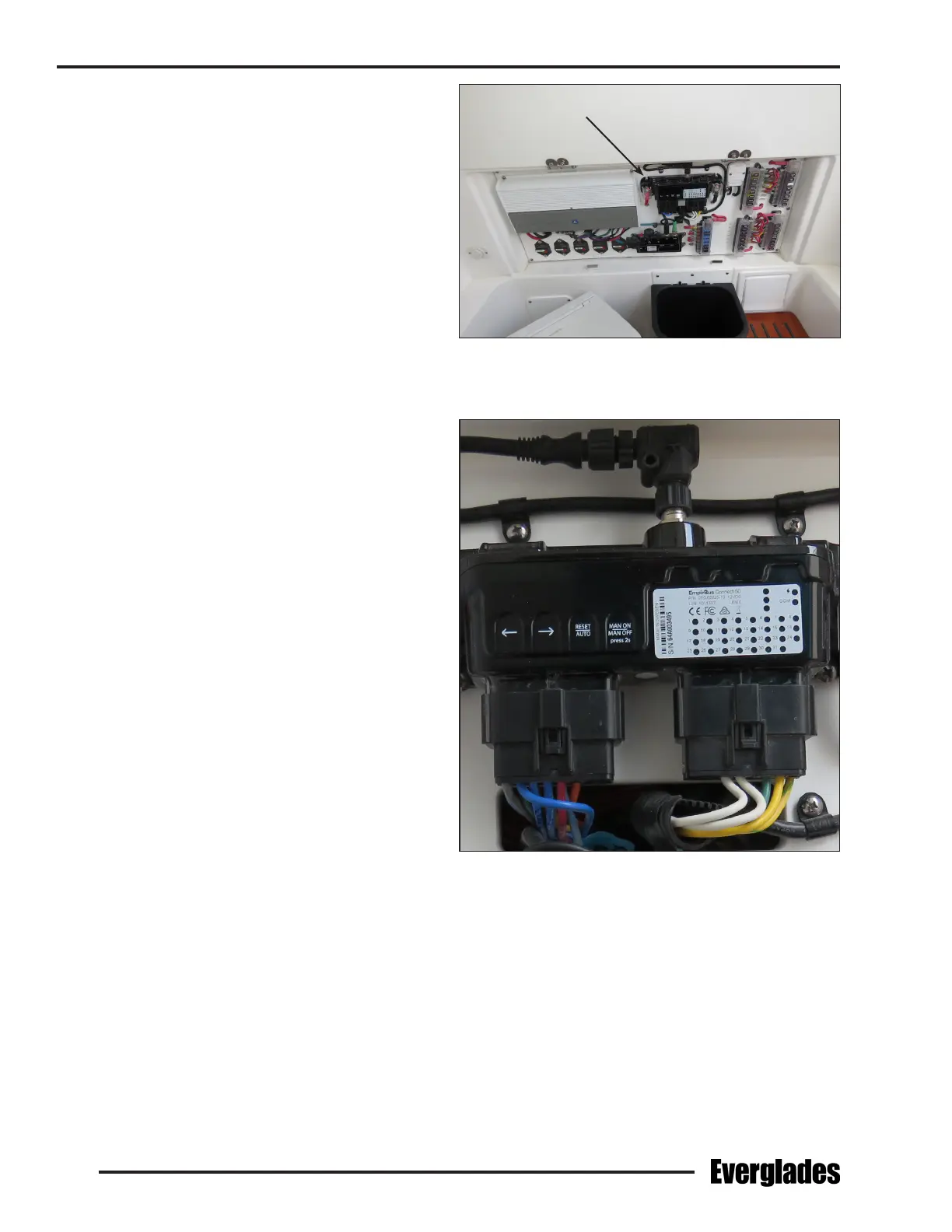

Digital Switching Control Module
