Electrical System
The following are the main circuits supplied and
protected by heavy duty circuit breakers:
Main 1 & 2
Protects the circuits that supply 12 volt current to
the digital switching modules, accessory switch
panels and most DC accessories. These circuits are
deactivated when the House battery switch is o.
Seakeeper
Protects the circuit that supplies 12 volt current to the
Seakeeper main circuit. This circuit is deactivated
when the House battery switch is o.
Amp
Protects the circuit that supplies 12 volt current to
the stereo amplier. This circuit is deactivated when
the House battery switch is o.
DCM 1,2
Protects the circuits that supply 12 volt current to
the digital switch control modules. These circuits are
deactivated when the House battery switch is o.
Windshield
Protects the circuit that supplies 12 volt current to the
windshield hydraulic system main circuit. This circuit
is deactivated when the House battery switch is o.
Hardtop
Protects the circuit that supplies 12 volt current to the
hardtop accessory circuits. This circuit is deactivated
when the House battery switch is o.

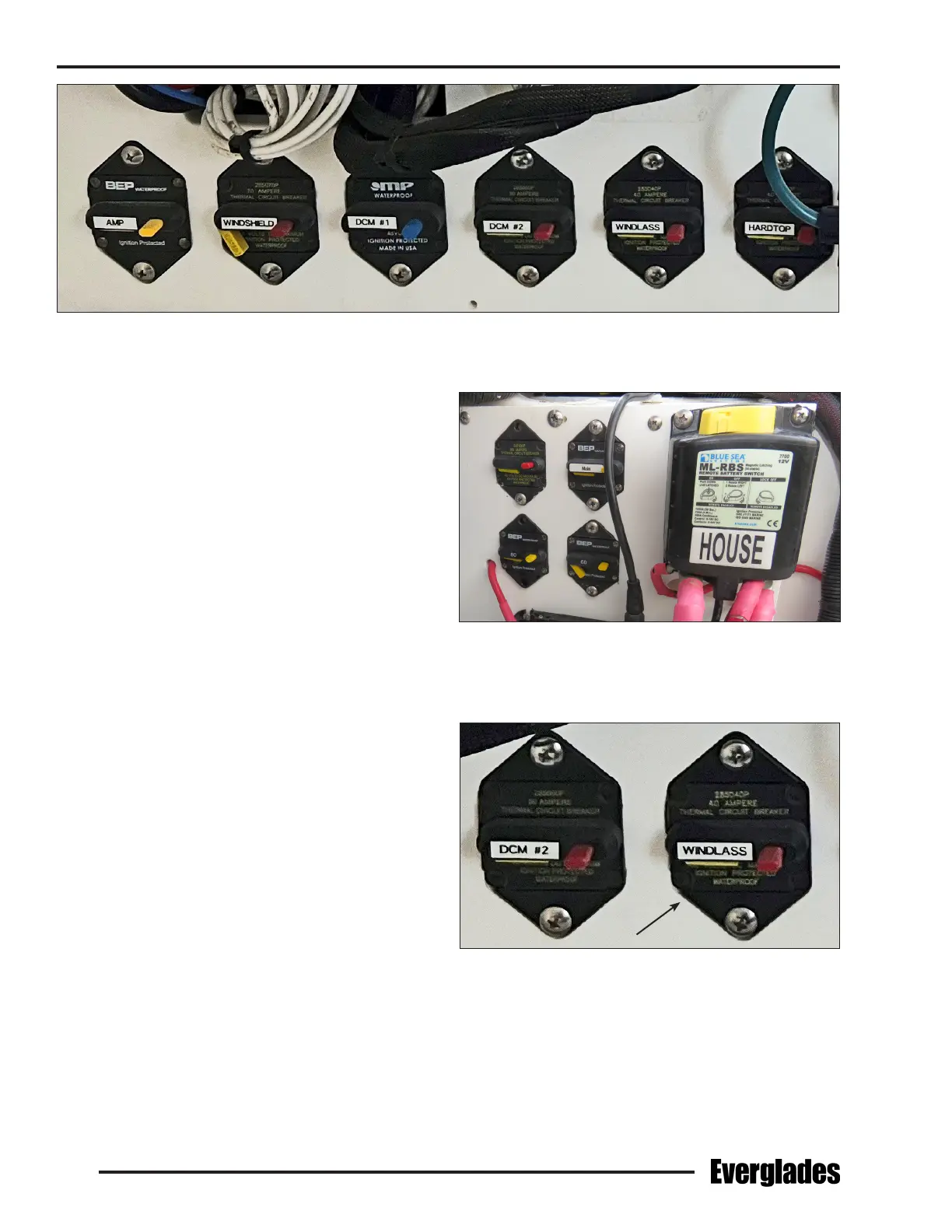

Main Circuit Breakers Behind Access Door In Aft Head Compartment
Main Circuit Breakers Near House Battery Switch
in Aft Systems Compartment
Windlass Circuit Breaker
Windlass
A heavy duty circuit breaker in the DCM panel
Behind Access Door In Aft Head Compartment
that protects the circuit that supplies 12 volt cur-
rent to the windlass main circuit. This circuit is
deactivated when the House battery switch is o.
