Electrical System
Continuous Power Fuse Panels
These fuses protect circuits that are always active
and not turned o by the battery switches. The
continuous power circuits are always supplied current
when the house batteries are connected.
The fuses in these panels provide continuous
power and protect the circuits for the follow-
ing accessories:
House Batt
Protects the circuit for the switch that controls the
remote battery switch for the House 12 volt electri-
cal system.
Port Batt
Protects the circuit for the switch that controls the
remote battery switch for the port engine 12 volt
electrical system.
STBD Batt
Protects the circuit for the switch that controls the
remote battery switch for the Starboard engine 12
volt electrical system.
Aft 1
Protects the circuit for the automatic switch that
activates the aft bilge pump located in the aft bilge.
A light in the Aft 1 Bilge Pump switch will be lit when-
ever the pump is activated.
Aft 2
Protects the circuit for the automatic switch that
activates the emergency aft bilge pump located in
the aft bilge behind the aft bilge pump. A light in
the Aft 2 Bilge Pump switch will be lit whenever the
pump is activated.
Alarm
Protects the circuit for the automatic switch in the
aft bilge that activates the high water alarm. The
high water alarm will sound to alert the operator of
unusually high water in the bilge.
Stereo Memory
Protects the circuit that supplies continuous 12 volt
electrical current to the memory circuit in the stereo.
Notice:
The continuous power circuit fuses are always
supplied current when the batteries are con-
nected. These circuits are not deactivated
when the battery switches are o.
Accessory Circuit Fuse Panels Behind Helm
CAUTION
PROPER FUSE OR BREAKER PROTECTION MUST BE
PROVIDED FOR ALL 12 VOLT EQUIPMENT ADDED. DO NOT
OVERLOAD THE ACCESSORY CIRCUIT BREAKERS, FUSE
PANELS OR OTHER CIRCUITRY THROUGH ADDITIONAL 12
VOLT EQUIPMENT.

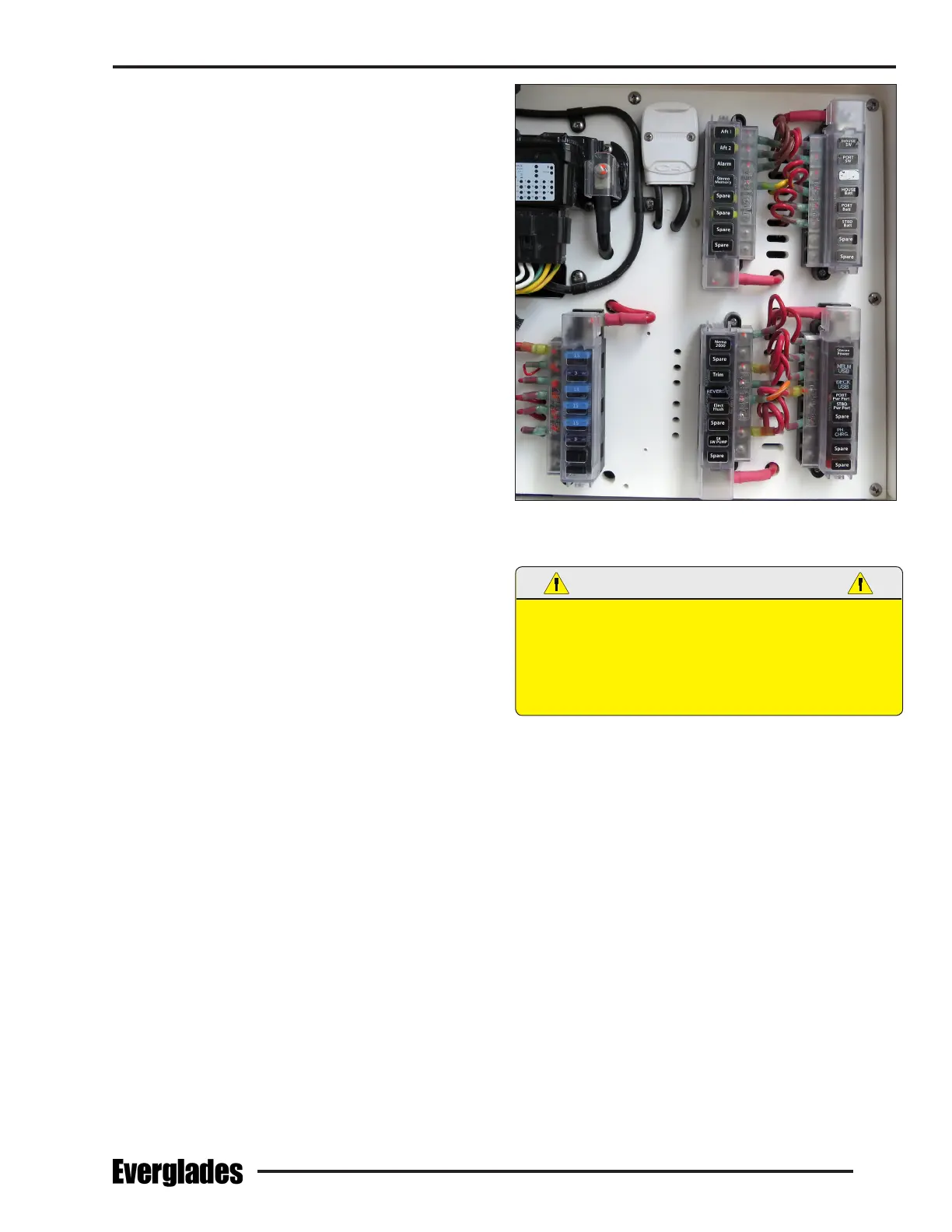

Electronics and Accessory Fuse Panels
The accessory fuse panels located behind access
door in the aft head compartment and in the com-
partment behind the hardtop electronics panel are
supplied power by the DC Main breakers. Fuses
in the panels protect the individual circuits for
electronics or other accessories mounted in your
boat. The circuits are labeled for the electronics
or accessories they protect. The circuits in these
panels are deactivated when the House battery
switch is o.
The helm fuse panels are accessed through a
hinged access hatch on the aft head compartment
bulkhead. The accessory fuse panel and digital
switch control module behind the hardtop instru-
ment panel is accessed by removing the access
plate below the panel.
