3.2.1 Header strip
The header strip is always visible except when the rinse top layer is displayed (see “5.3” on page 55).
3.2.2 Top layer
3.2.3 Footer strip
The footer strip is always visible and buttons differ according to settings.

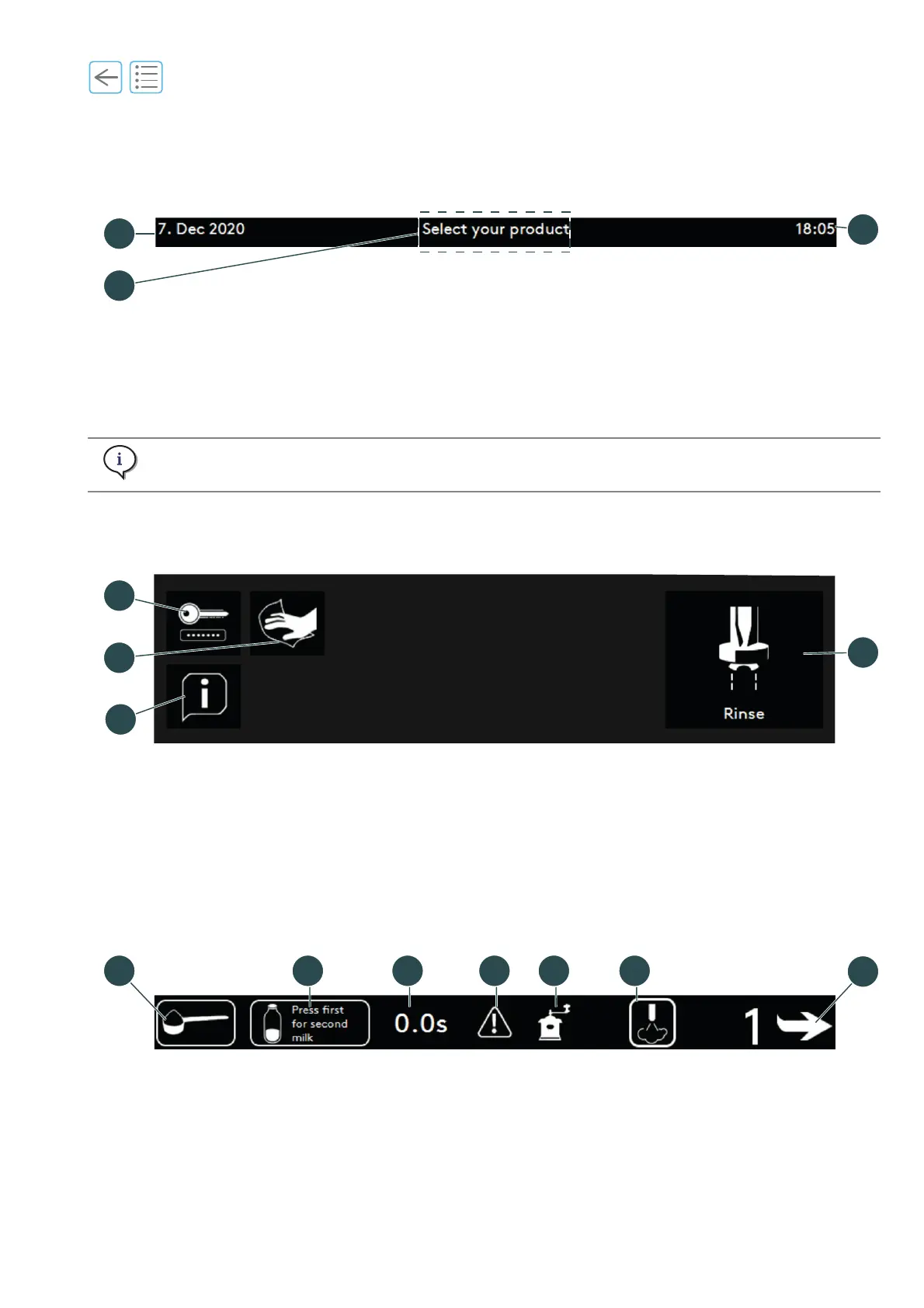

Fig. 3-2Header strip
(1) Login access area (long press to open: See
“6.1” on page 66
) or press to open the top
layer
“3.2.2” on page 47
(2) Date (day, month and year)
(3) Time
To change the language, time zone and date, please refer to “11.3.3 Display” on page 126.
Fig. 3-3Top layer
(1) Info menu
(2) Clean the screen button (See “7.3.5” on
page 87)
(3) Login access area See “6.1” on page 66
(4) Rinse button (See “5.3” on page 55)
Fig. 3-4Footer strip
(1) Decaf. button (See “5.6.6” on page 60)
(2) Milk two button (press to select milk two)
(3) Extraction time (seconds)
(4) Warning message (
See “8.1” on page 91)
(5) Grinder button (
See “3.4” on page 49)
(6) Purge button (
See “5.6.5” on page 59)
(7) Product layer page # (press to access other
products)
To Next Page
