2.3. DREAMCATCHER SERVER CONNECTION OVERVIEW
Error! Reference source not found.1 below shows the available connections for DreamCatcher
1. Redundant power supplies
2. Serial Port - Currently unused
3. IPMI Port - Currently unused
4. 4x USB 2.0 Ports
5. ETH 0 - 1G DreamCatcher Communication Network
6. ETH 1 - 1G Infrastructure Network
7. VGA Port - Currently unused
8. 2x USB 3.0 Ports
9. ETH 2 – 10G Distributed Network
10. ETH 3 – 10G Redundant Distributed Network
11. DVI Port
12. Display Port 1
13. Display Port 2
14. Reference In
15. 8x Inputs/Outputs
16. RS-422 Connector

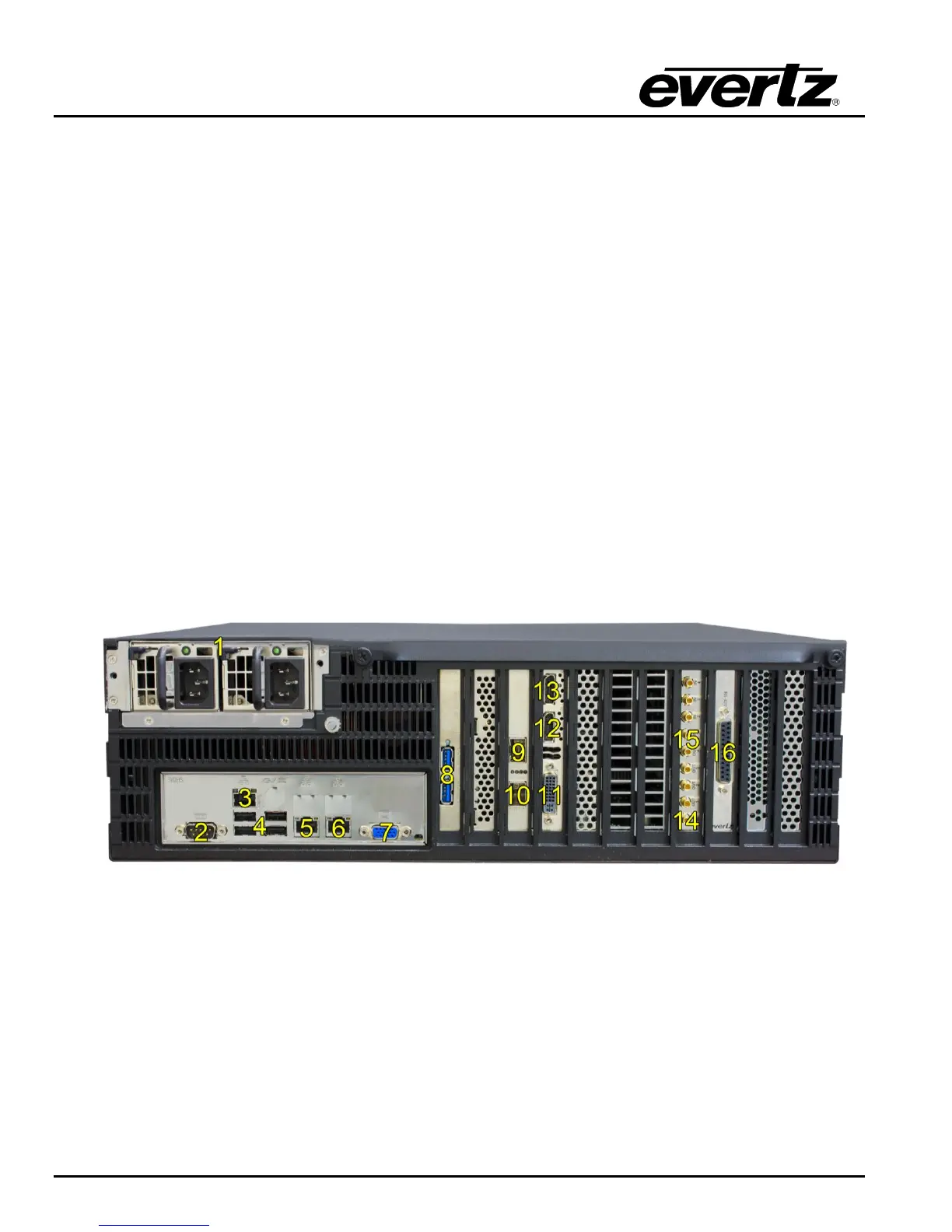

Figure 2-1: DreamCatcher Server Connections
