DreamCatcher Replay System

Page 12 Revision 1.13

 The remaining outputs will connect incrementally following output 1.

 The first input connection will be connected to the DIN immediately following the last output.

 Use Figure 2-9 and Table 2-1, Table 2-2 and Table 2-3 below for all possible Input/Output

configurations.

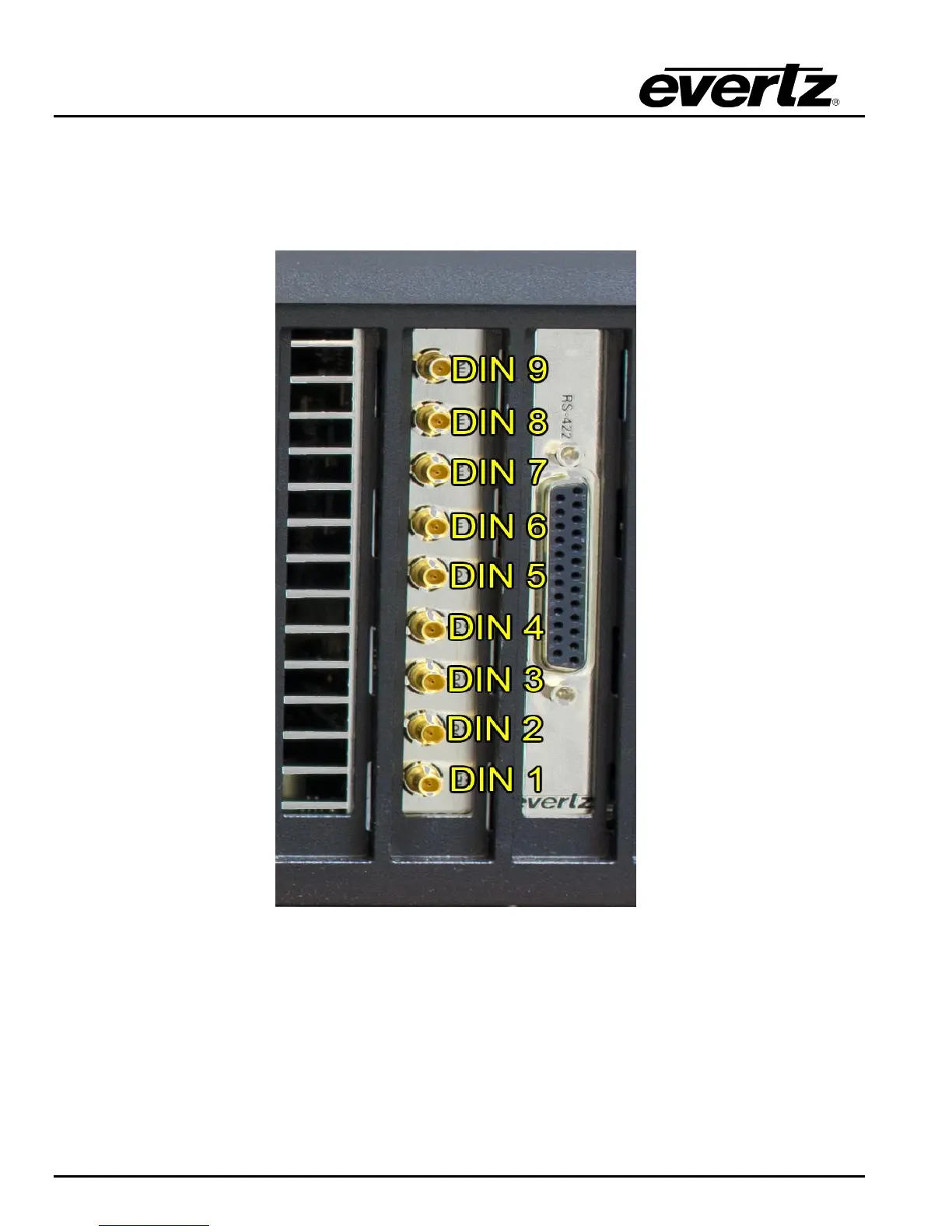

Figure 2-9: DIN Connectors
