DreamCatcher Replay SystemDream Catcher
Revision 1.13 Page 5
2.4. DREAMCATCHER PANEL CONNECTION OVERVIEW

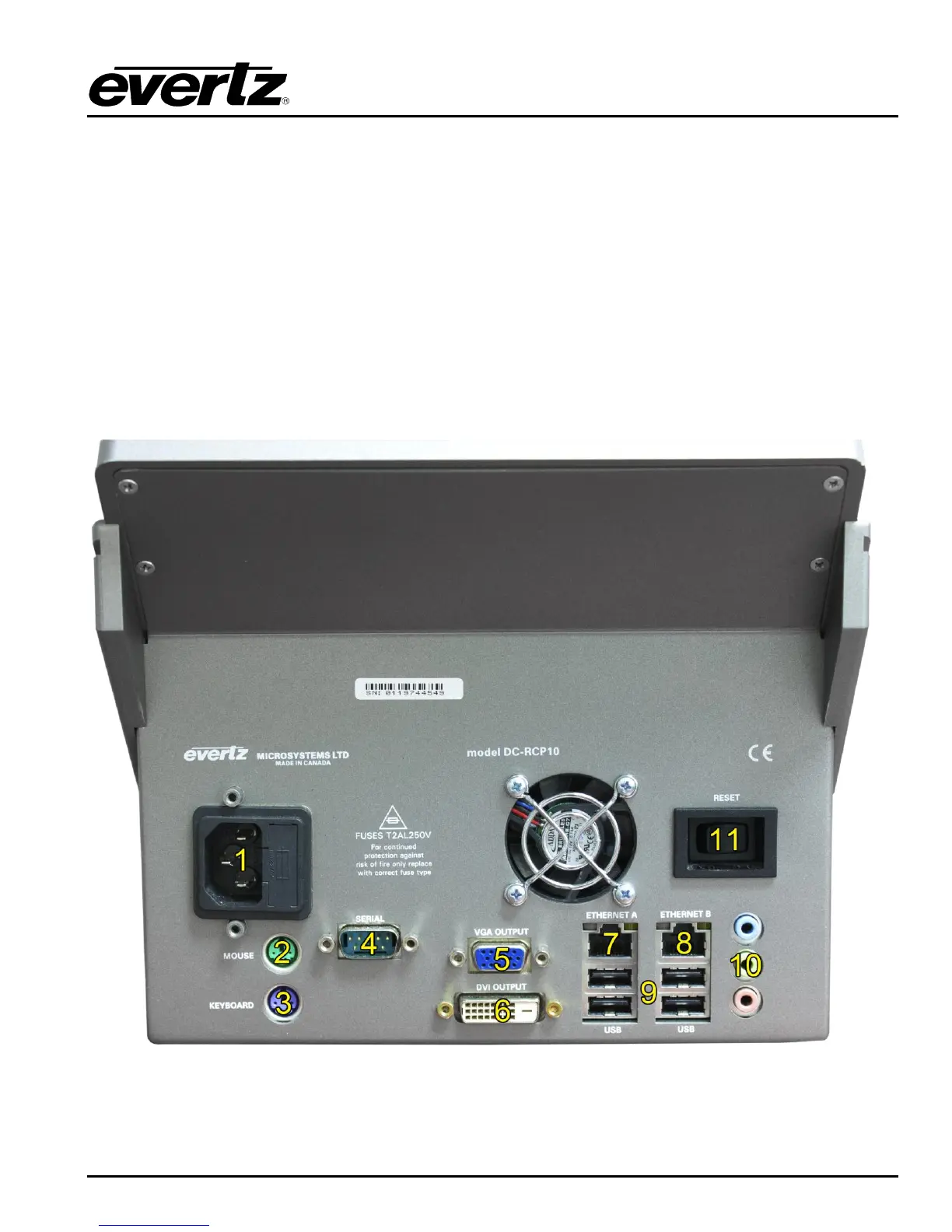

Figure 2-2 below shows the available connections for DreamCatcher‟s Controller
1. Power supply
2. PS2 Mouse
3. PS3 Keyboard
4. Serial Port – Currently unused
5. VGA Port
6. DVI Port
7. ETH A – 1G DreamCatcher Communication Network
8. ETH B – 1G Infrastructure Network
9. 4x USB 2.0
10. Audio – Currently unused
11. Reset Button
Figure 2-2: DreamCatcher Panel Connections
