2.10. TIMECODE
DreamCatcher accepts LTC over the RS422 connector in Figure 2-1. The pin mapping is detailed in
Table 2-6: LTC Pin out below.
To check the status of the LTC signal follow the setup in section 3.3.1 and section 3.4.2.1 to get to
DreamCatcher‟s Configuration page. Once on the page you should see the status of the LTC signal.

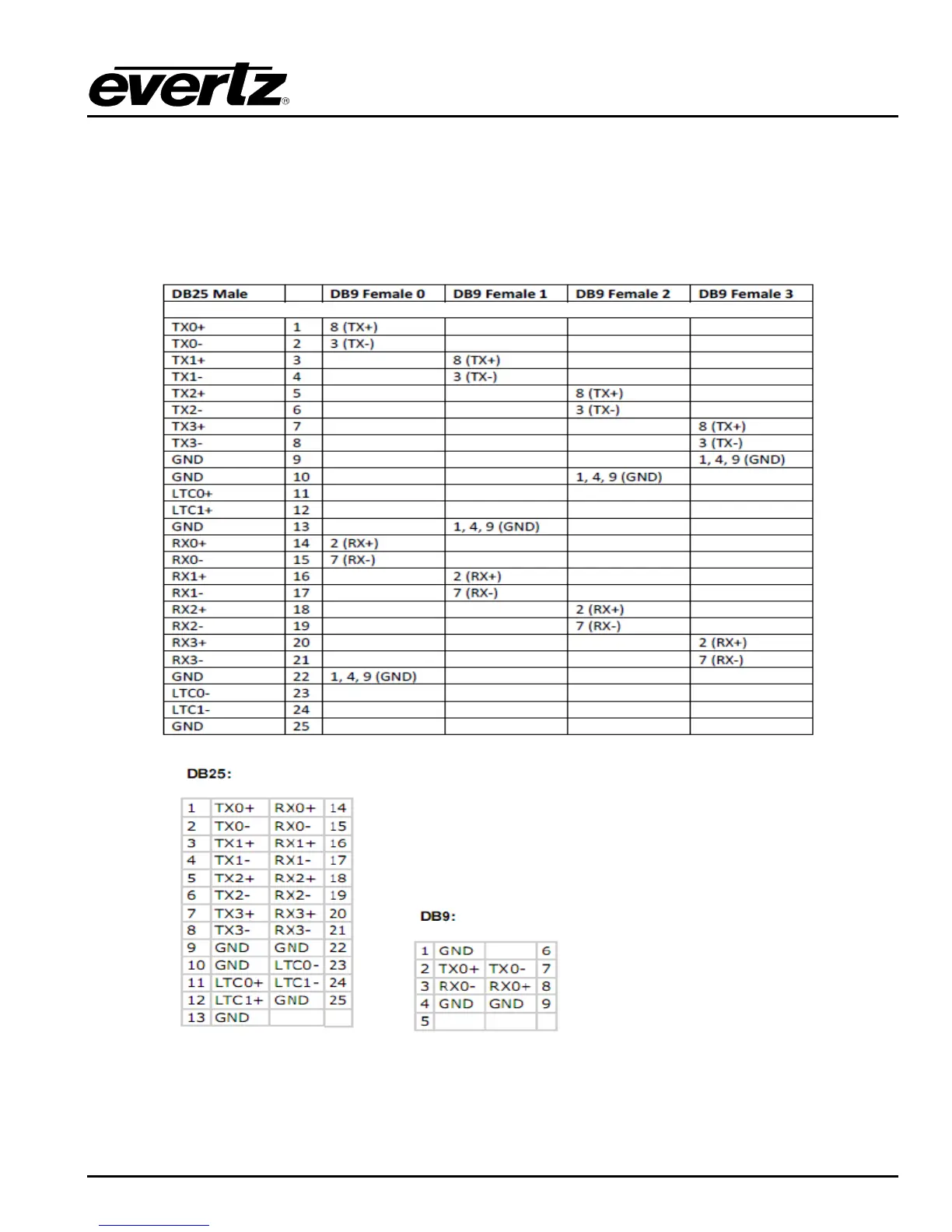

Table 2-6: LTC Pin out
