2.5. NETWORK CONNECTION

IMPORTANT: Ensure Ethernet 0 is always initialized and ONLY DreamCatcher
Servers, DreamCatcher Controllers and DC-LOGGERS are connected to this
network.
2.5.1. Single Server and Controller System Setup
Required equipment:
 DreamCatcher Server
 DreamCatcher Controller
 Optional 1G Network Switch (Control Network)
 Optional 1G Network Switch (Infrastructure Network)
 Cat5/Cat5e/Cat6 Cables
Procedure:
 Use Figure 2-1, Figure 2-2, Figure 2-3 and Figure 2-4 as reference.
 Connect Ethernet 0 on DreamCatcher to Ethernet A/0 on the Controller directly or through a 1G
Network Switch.
DreamCatcher
Server 1
DreamCatcher
Controller 1
1G Isolated
DreamCatcher
Network
ETH 0
ETH 0/A
(Optional)
DC-LOGGER
ETH 0

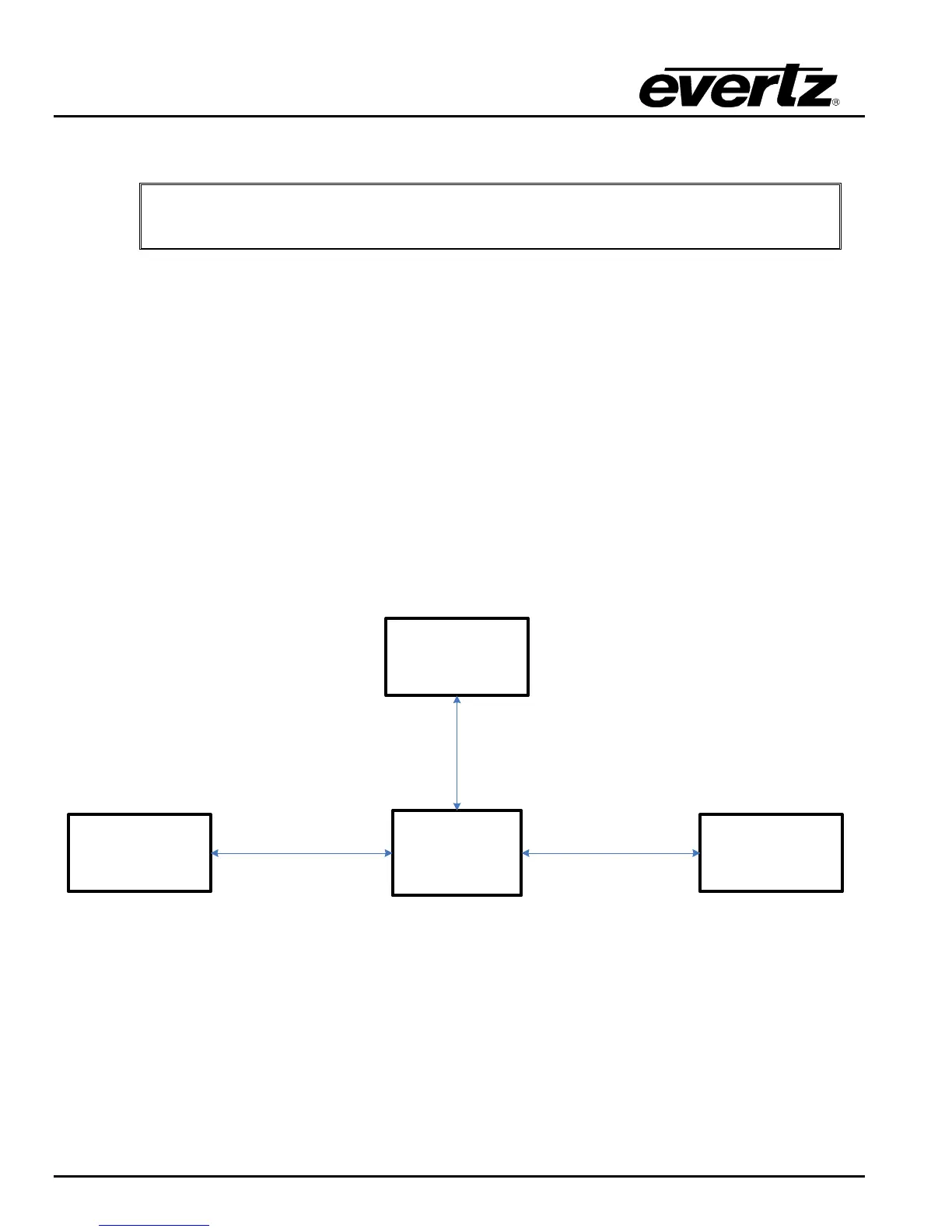

Figure 2-3: DreamCatcher Control Network
