DreamCatcher Replay System
Page 40 Revision 1.13
Set up the server, a monitor and Controller #1 (an Ethernet switch will need to be connected to Eth
0/Eth A on the server to accommodate two panels) See figure 4-1.
In a three monitor set up, MONITOR #1 (Controller #1) will feed off of the DVI slot on the Server. See
figure 4-1.
Monitor #2 (INPUT/OUTPUT VIEW) will feed off of the DISPLAY PORT on the server. See figure 4-1.
Monitor #3 will feed off of Controller #2 via DVI or VGA. See figure 4-1.
Controller #2
With Controller #2, connect a monitor through VGA connection on panel. See figure 4-1.
On the panel, under „ENGINEERING/DC-RCP10/NETWORK INTERFACES‟, set a desired IP address
(ex. 127.0.0.1) See figure 4-1.
Under DREAMCATCHER SERVER SETTINGS, make sure the IP ADDRESS is set to the IP of the
PRIMARY SERVER you are using.
To have KEYBOARD and MOUSE control set to the IP of the SECOND Controller.
On Controller #1‟s VUE INTERFACE, add another server by pressing „Ctrl + E‟ on the keyboard, and
navigating to the „Systems‟ settings.
Select „Add a New System‟.

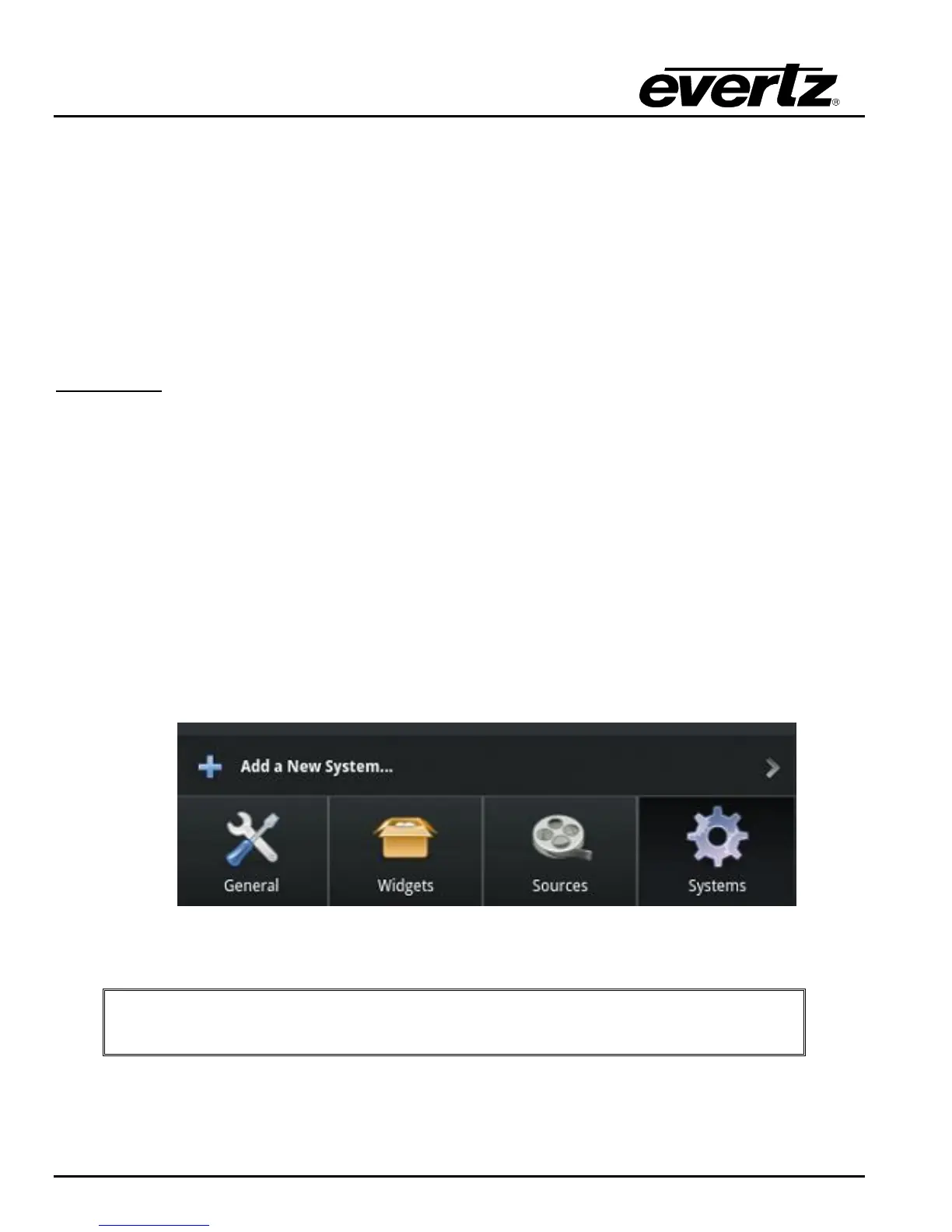

Figure 4-2: Widget Menu
IMPORTANT: On the second controller, the monitor MUST be connected before you
boot it or else Vue will not appear.
