EMC-DCP
EMC DESKTOP CONTROL PANEL
Page 34 Revision 1.1

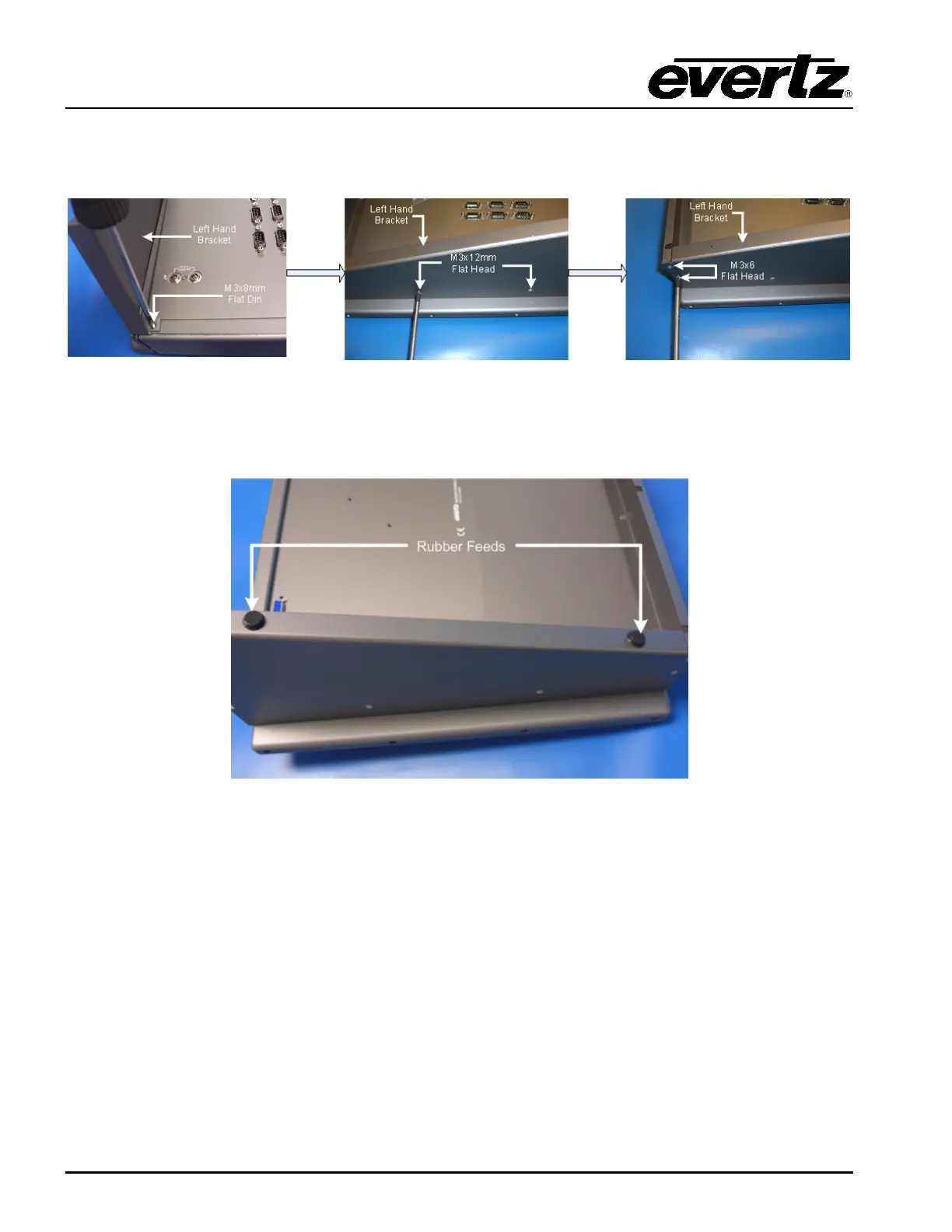

Next step is to assemble the two Desktop Mounting Brackets (Part #2 for the left side and Part #8 for
the right side). Each side needs 1X M3x8mm 2X M3x12mm and 2X M3xmm screws. In this manual,
only the left side bracket assembly will be described (see Figure 5-6).
Figure 5-6: Bracket Assembly
The last step is to place the rubber feeds (two on each side). Make sure they are centered with the
holes provided (see Figure 5-7).
Figure 5-7: Rubber Feeds
Figure 5-8 shows the fully assembled unit.
