4. TECHNICAL DESCRIPTION
4.1. SPECIFICATIONS
4.1.1. Electrical
Voltage: Autoranging 100V - 240V AC, 50/60Hz
Power: 20 Watts
Fuse Rating: 250V, 4A, time delay
Safety: ETL listed.
Complies with EU safety directive
EMI/RFI: Complies with FCC Part 15 Class A,
EU EMC Directive
4.1.2. Physical
The panel is designed for use on a desktop, for mounting in a console, mounted in a rack or on a
sliding tray in a rack. Figure 4-1 to Figure 4-5 shows the overall dimensions of the unit with and without
the Desktop mount.
Dimensions: 19” W x 5.6” H x 12.8” D.
(483mm W x 142mm H x 325mm D)
Weight: 8 lbs. (3.5Kg)

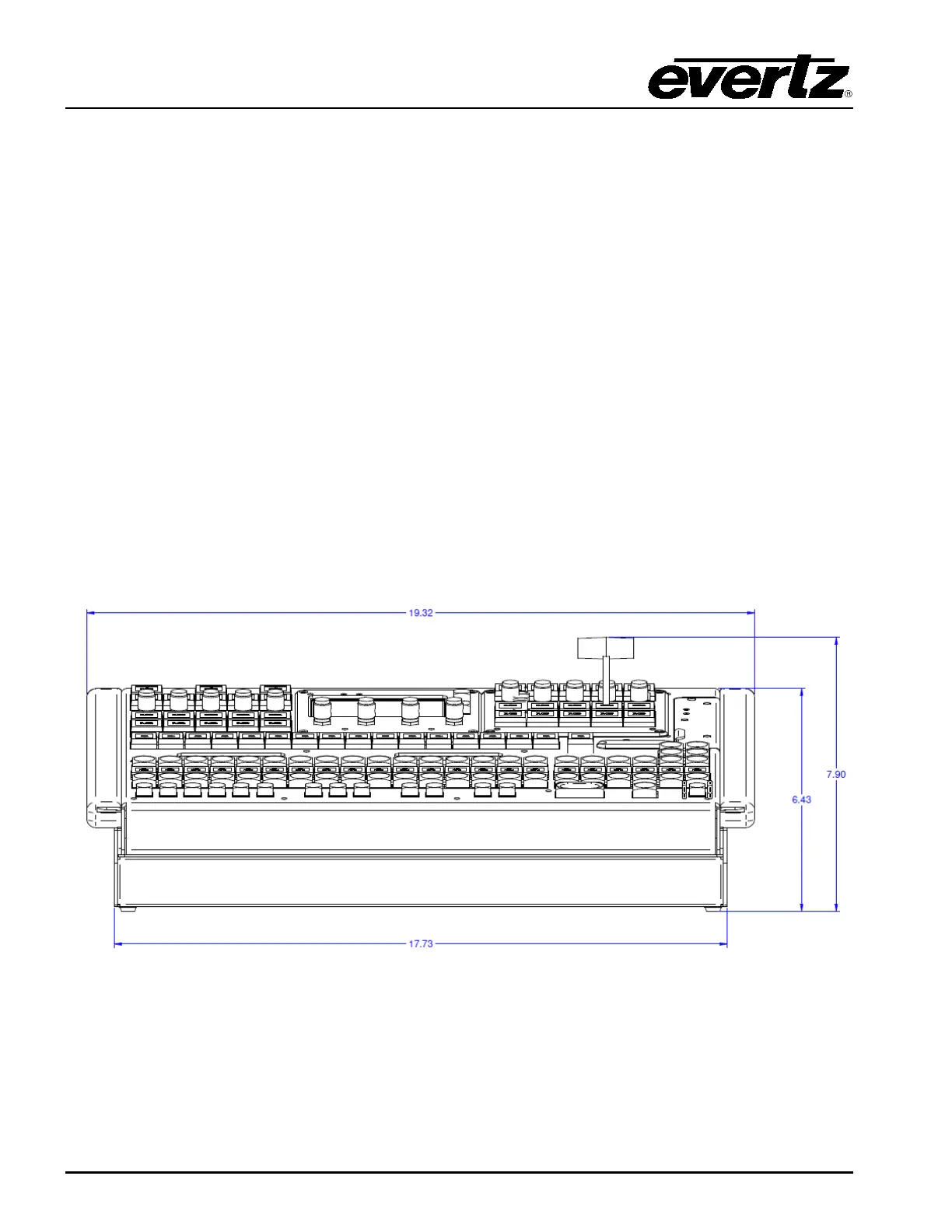

Figure 4-1: EMC-DCP Front View with Desktop Mount
