147
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
7

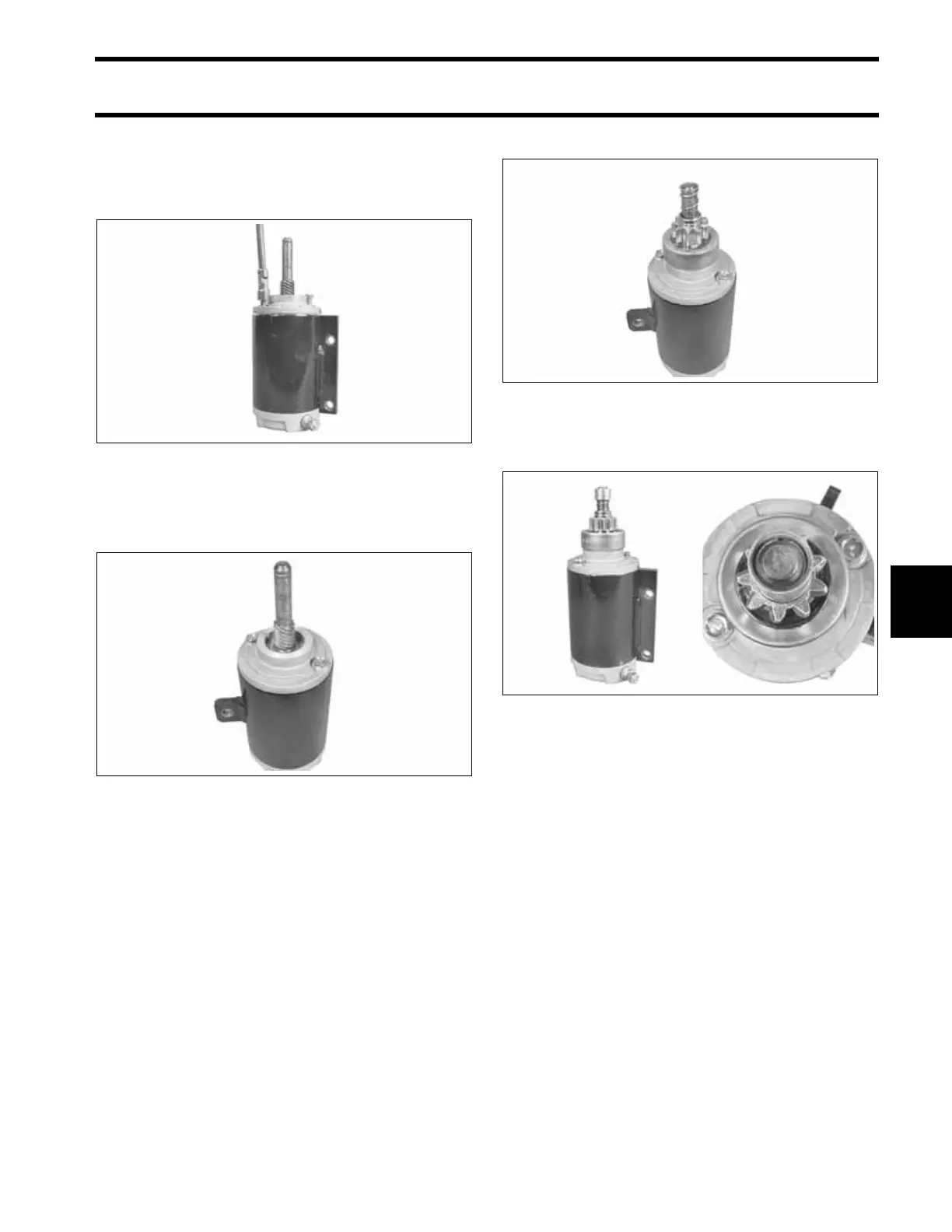

Apply Locquic Primer and Screw Lock to the
threaded portion, and install the two thru-bolts.
Tighten bolts to a torque of 100 to 110 in. lbs. (11
to 12.5 N·m).
Lubricate the splines (helix) of starter pinion shaft
with Starter Bendix Lube. DO NOT use liquid or
aerosol spray lubricants.
Install pinion, spacer and spring.
Install spacer and retaining clip. Spacer must be
raised to cover clip completely.
To test the assembly and operation of the starter,
refer to No Load Current Draw Test on p. 132.
002306
002307
002305
002297
002311
