247
MIDSECTION
STERN BRACKET –MANUAL TILT MODELS
12
STERN BRACKET –
Manual Tilt Models
Clamp Screw
Inspect clamp screw assemblies). Replace swivel
plate and retainer if bent or loose. To install a new
swivel plate, remove screw and old plate. Apply
Locquic Primer to the threads of the screw and
allow it to dry four to five minutes. Then apply
Ultra Lock to threads. Install a new swivel plate
with screw and tighten securely.

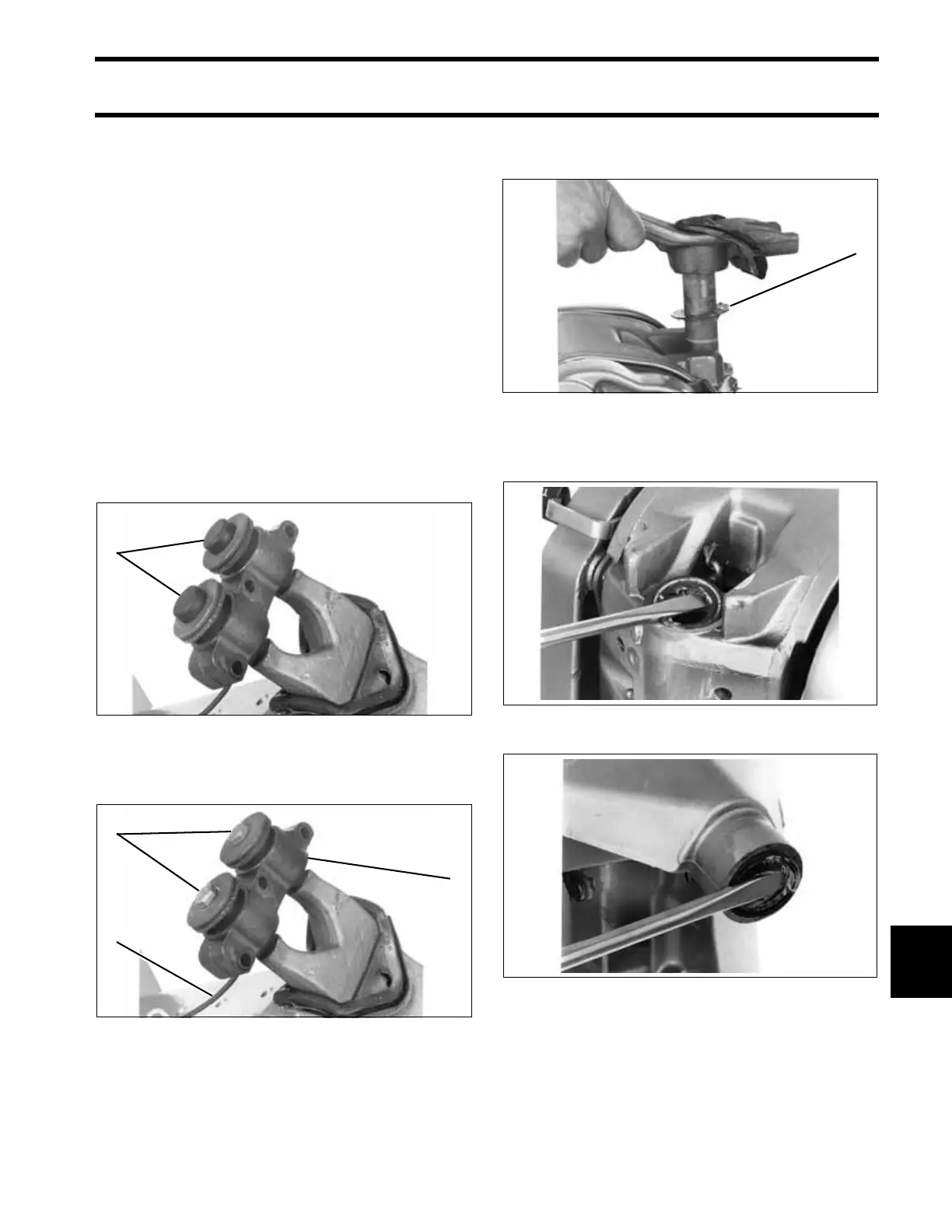

Stern Bracket Disassembly
(Manual Tilt)
Remove bumpers from the upper mount retaining
screws.
Remove screws, upper mount, and ground lead
from the bracket.
Slide the pivot shaft and upper thrust washer out
of the swivel bracket.
Using an appropriate tool, pry the upper and lower
seals from the swivel bracket.
Loosen the steering friction screw while pushing
outward on the steering friction pin. When the pin
1. Bumpers COA2949
1. Screws
2. Upper mount
3. Ground lead
COA2950
1
2
1
3
1. Upper thrust washer COA2956
COA2957
COA2958
1
