311
MANUAL STARTER

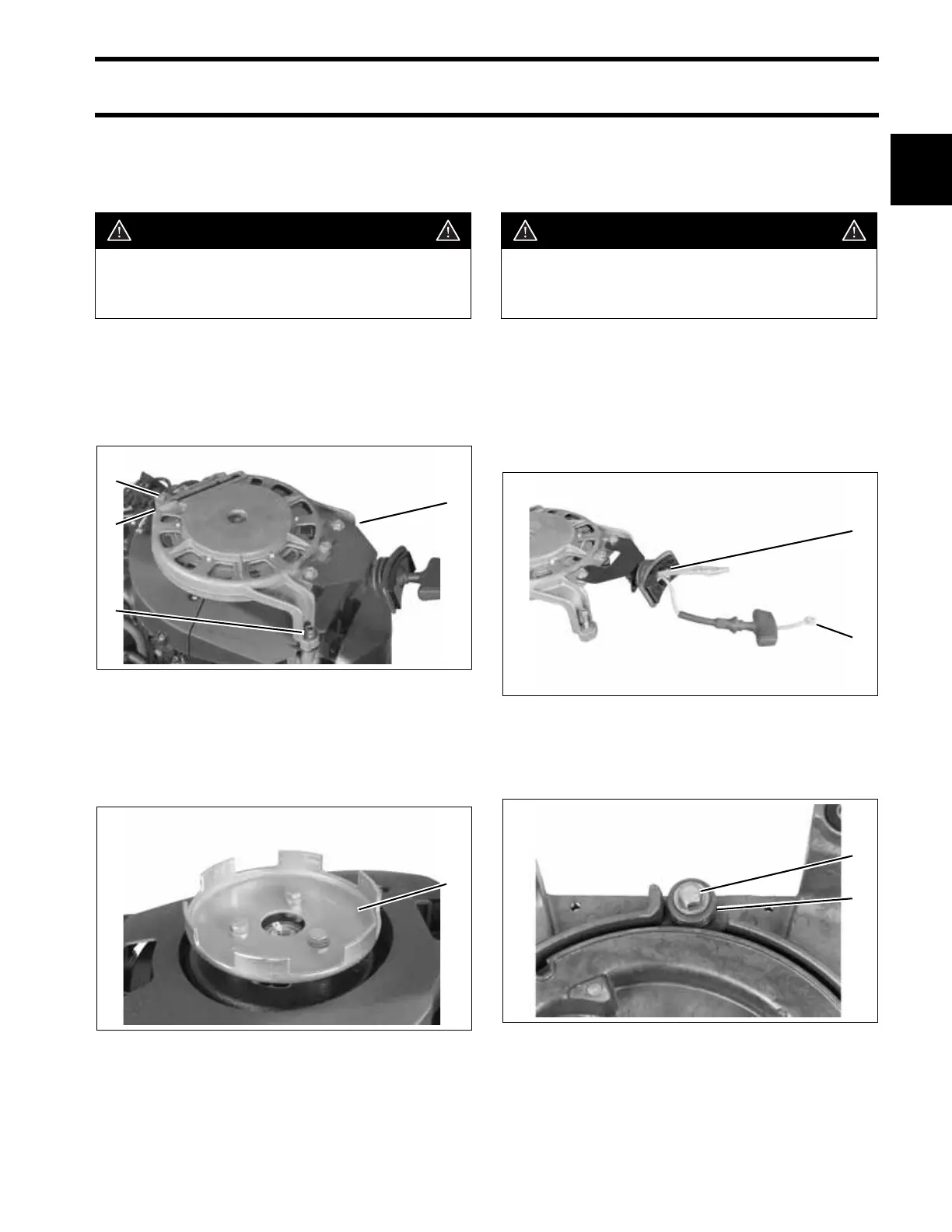

RECOIL STARTER REMOVAL
15
RECOIL STARTER
REMOVAL
Remove the clamp holding the oiling system wir-
ing harness.
Remove the three starter housing screws and
washers.
Lift starter housing from outboard.
Remove three screws and remove starter ratchet
from flywheel.
RECOIL STARTER
DISASSEMBLY
Pull the starter rope out far enough to tie a slip
knot in the rope. Untie the end knot of the starter
rope and remove the handle. Release the slip
knot and ease the rope back in until the rewind
spring is fully unwound. If necessary, remove the
starter handle bracket from the starter housing.
Remove the rope guide shoulder screw and guide
from the starter housing.
WARNING
To prevent accidental starting while ser-
vicing, twist and remove all spark plug
leads.
1. Clamp
2. Starter housing screws (3)
002515
1. Ratchet 006483
2
1
2
2
1
WARNING
Wear safety glasses while disassembling
and assembling manual starters because
of rewind spring tension.
1. Slip knot
2. Rope anchor
006484
1. Screw
2. Guide
46595
1
2
1
2
