268
MIDSECTION

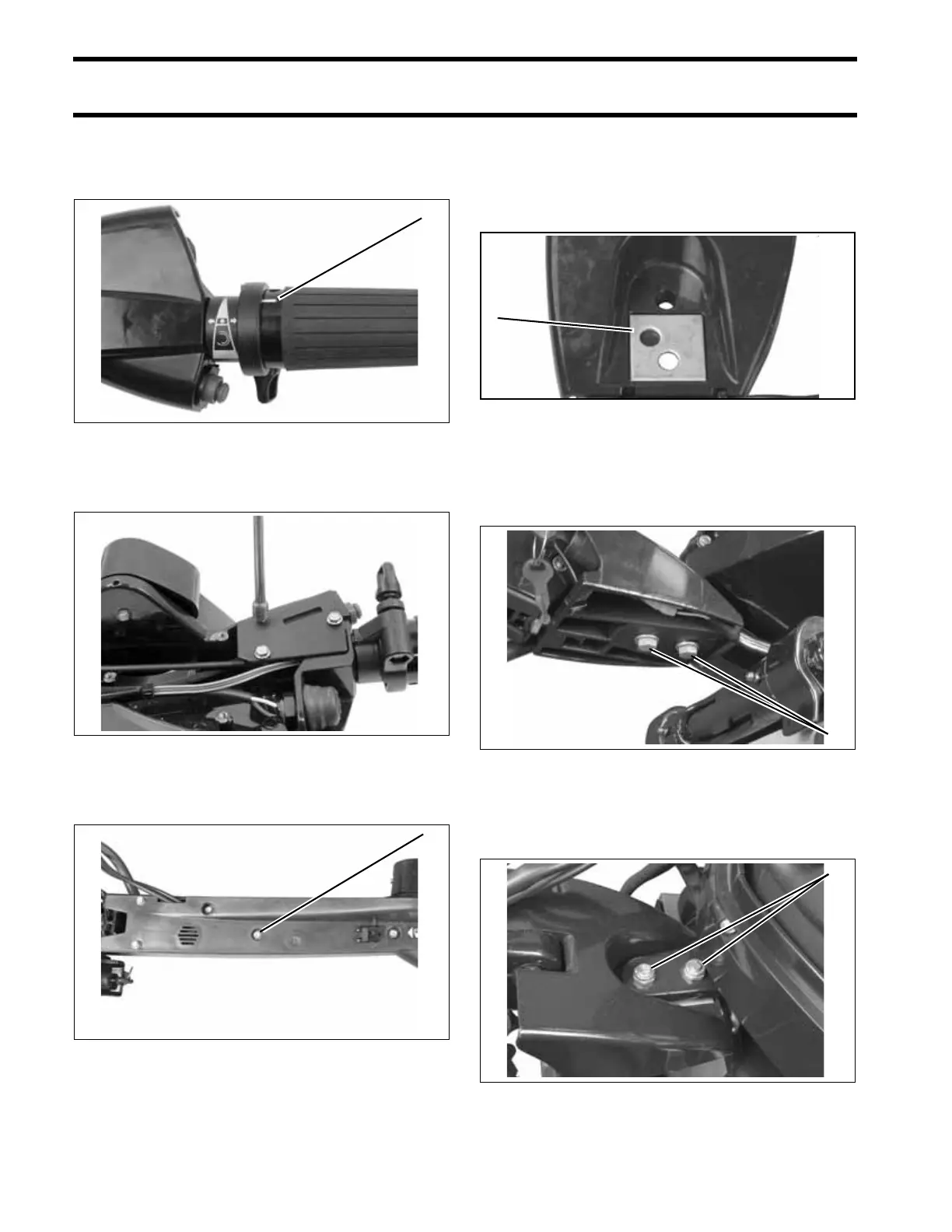

TILLER HANDLE SERVICE – LONG HANDLE
Be sure the twist-grip's speed indicator line is
positioned with the speed range symbol on the
handle. Snap the grip into place.
Install stop switch assembly and connect to har-
ness.
Install bottom cover of tiller handle with seven
screws.
Installation
The steering arm can be positioned straight, or
angled 15° port or starboard by moving the adjust-
ment plate.
Place tiller bracket on steering arm from the bot-
tom. Thread steering arm screws, with washers,
into steering arm and tighten to a torque of 18 to
20 ft.lbs. (24.5 to 27 N·m).
Install locknuts on screws on top of steering arm.
Hold screws with wrench and tighten locknuts to a
torque of 18 to 20 ft.lbs. (24.5 to 27 N·m).
1. Indicator line 006719
006713
1. Cover screw 006566
1
1
1. Plate adjustment for tiller in CENTER position. 005083
1. Screw 006361
1. Screw 006362
1
1
1
