OILING SYSTEM

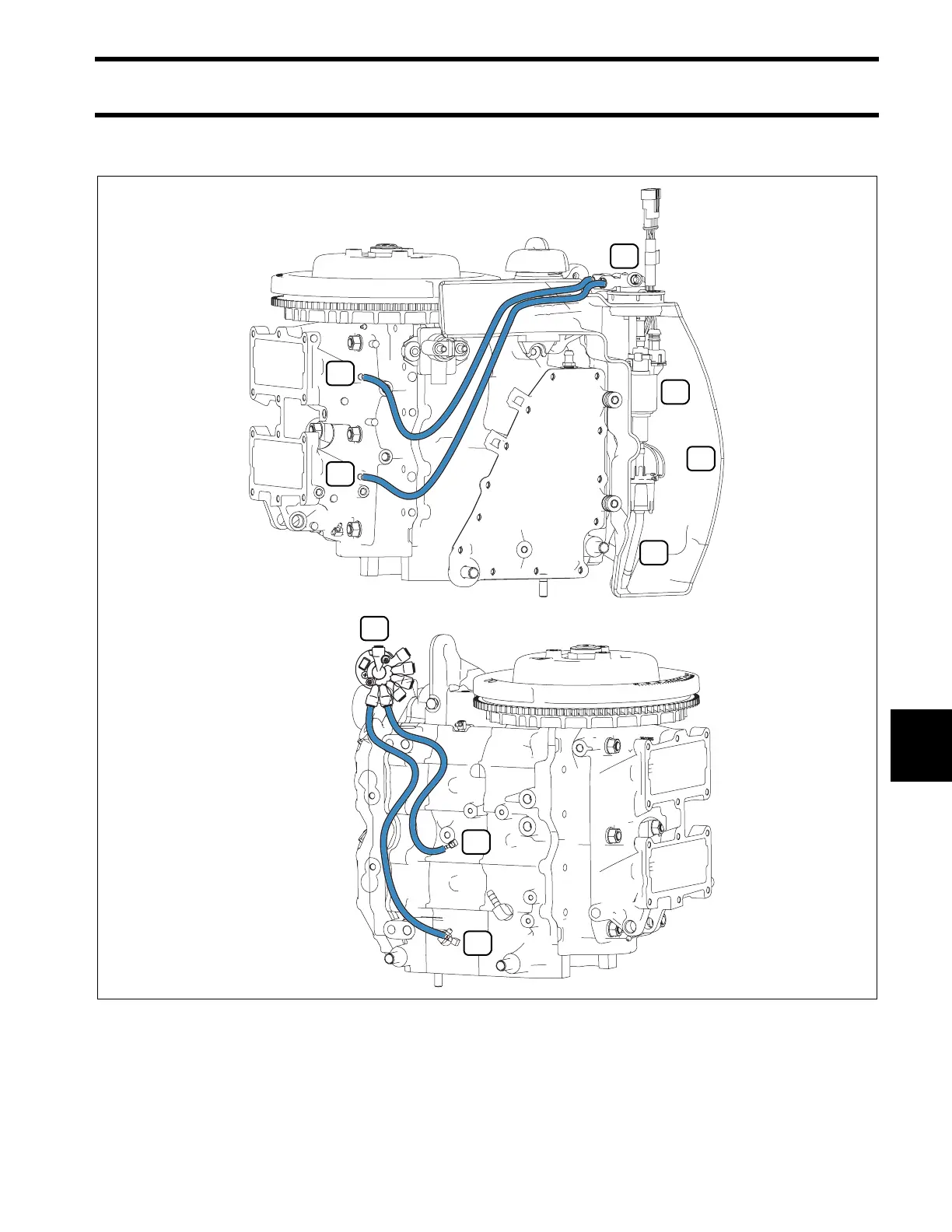

OIL SUPPLY DIAGRAMS
177
9
OIL SUPPLY DIAGRAMS
1.
2.
3.
Oil tank
Oil pick-up/filter
Oil injection pump
4.
5.
6.
Oil distribution manifold
Crankcase oil inlet (port)
Cylinder oil inlet (starboard)
1
3
4
5
6
2
4
5
6
006643
