264
MIDSECTION

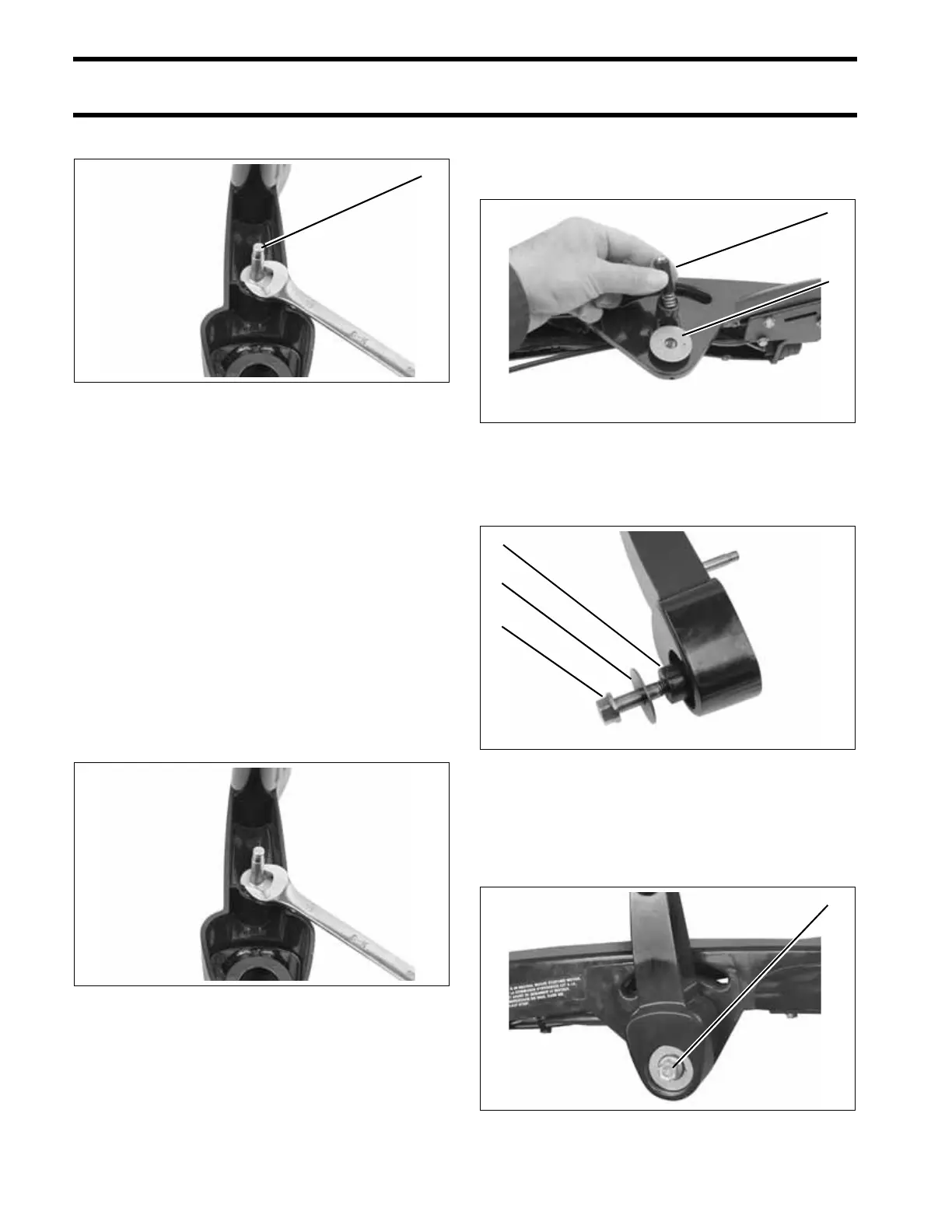

TILLER HANDLE SERVICE – LONG HANDLE
Remove the shift pin if necessary.
Inspection
Inspect the throttle cable for kinks and wear.
Replace if necessary.
Inspect the shift cable for kinks and wear. Replace
if necessary.
Inspect the steering handle components for wear,
cracks, or damage. Replace parts if necessary.
Refer to Emergency Stop Switch Test on p. 134
to test stop switch.
Assembly
Apply Nut Lock to threads of shift pin and install
shift pin into shift handle. Tighten to a torque of 18
to 22 ft. lbs. (24.5 to 29 N·m).
Coat detent ball, spring and guide with Triple-
Guard grease and install into shift handle. Place
one washer on shift handle mounting boss.
Coat bushing and washer with Triple-Guard
grease. Apply Nut Lock to threads of screw.
Install shift handle on tiller handle and tighten
screw to a torque of 18 to 20 ft. lbs. (24.5 to 27
N·m).
1. Shift pin 006716
1. Detent ball, spring and guide 006716
1
1
1. Detent ball, spring and guide
2. Washer
006715
1. Bushing
2. Washer
3. Screw
006717
1. Shift handle screw 006714
1
2
1
2
3
1
