265
MIDSECTION

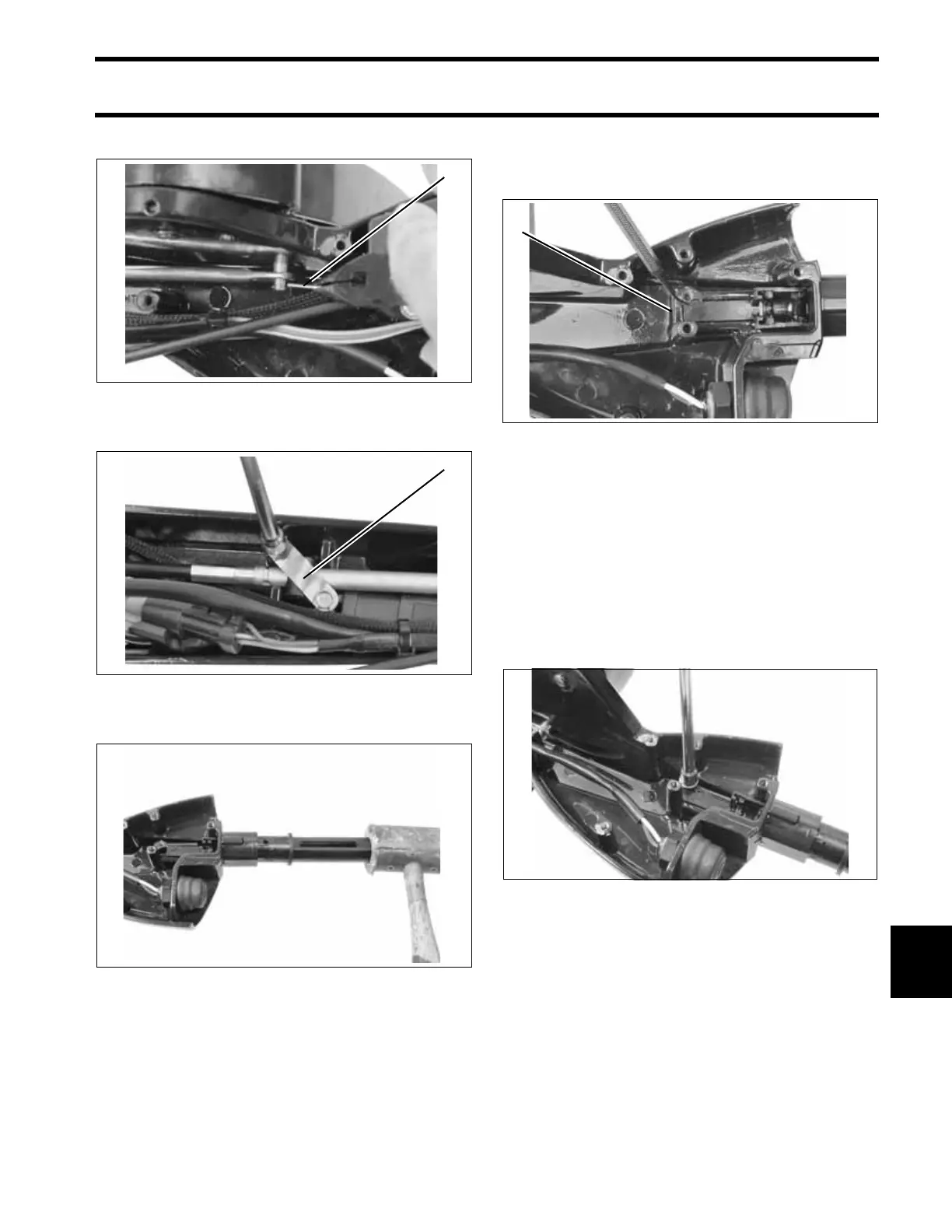

TILLER HANDLE SERVICE – LONG HANDLE
12
Install shift cable on shift pin with a new cotter pin.
Install shift cable retainer on shift cable trunnion.
Use a soft-faced mallet to install the inner handle.
Secure tab of the inner handle into the outer han-
dle. Tab must be flush with the back of the flange
and top of tab must be flush with top of flange.
Apply Nut Lock on the screw threads, install the
washer and screw.
IMPORTANT: Turn self-tapping screw counter-
clock-wise until threads of screw engage threads
of screw boss. Failure to follow this procedure will
damage the screw boss threads. Once threads
are engaged, tighten screw so that there is no
space between tab, washer and screw. Top of tab
MUST be flush with top of flange.
1. Cotter pin 006720
1. Shift cable retainer 006721
006680
1
1
1. Back of flange 006682
006681
1
