263
MIDSECTION
TILLER HANDLE SERVICE – LONG HANDLE
12

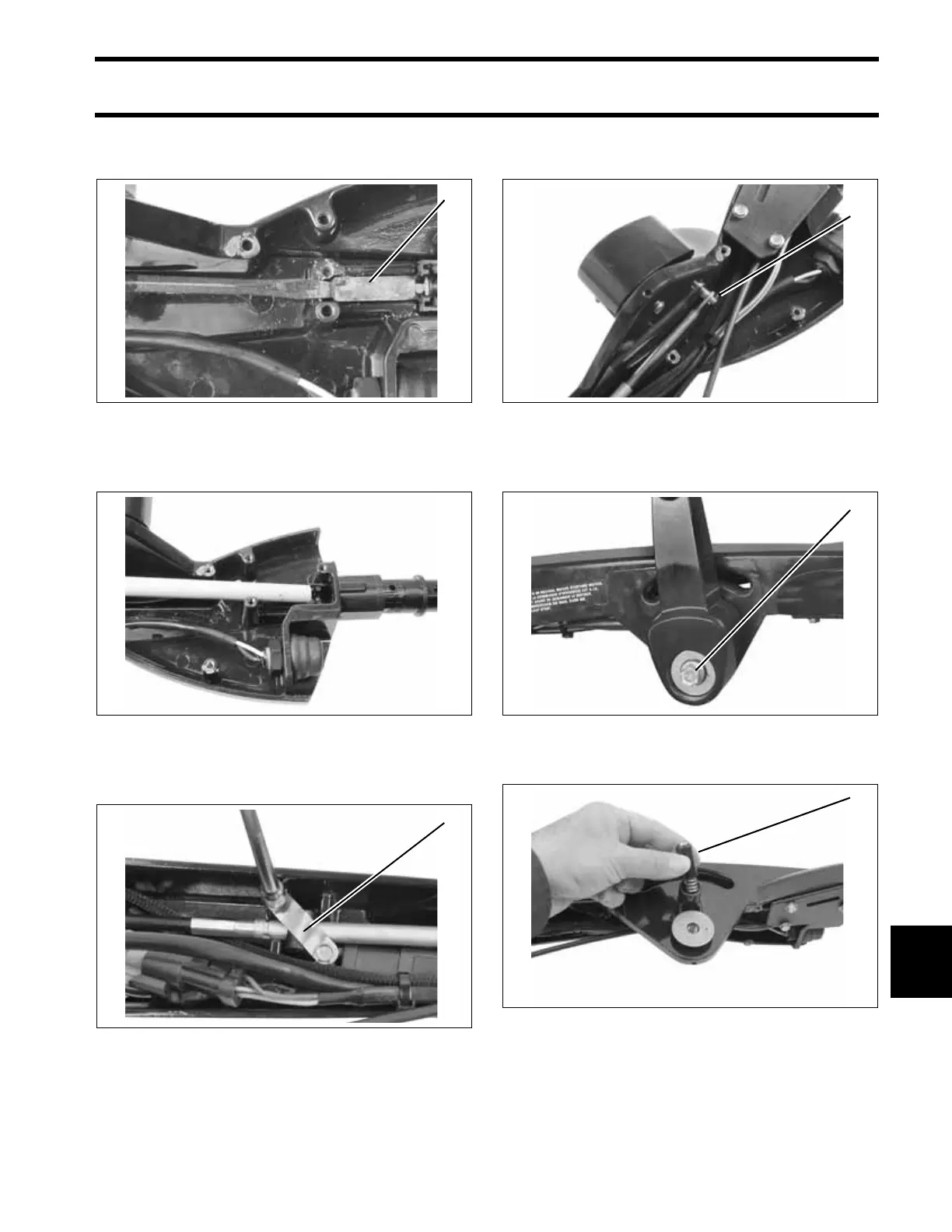

Use an appropriate tool to carefully pry up on the
inner handle retaining tab.
Use a wooden dowel and a soft mallet to remove
the inner handle.
Remove shift cable retainer from shift cable trun-
nion.
Remove cotter pin from shift handle pin. Remove
shift cable.
Remove shift handle screw and washer. Remove
shift handle, bushing and washer.
Remove shift handle detent ball, spring and guide.
1. Inner handle retainer tab 006679
006678
1. Shift cable retainer 006721
1
1
1. Cotter pin 006708
1. Shift handle screw 006714
1. Detent ball, spring and guide 006715
1
1
1
