150
ELECTRICAL AND IGNITION

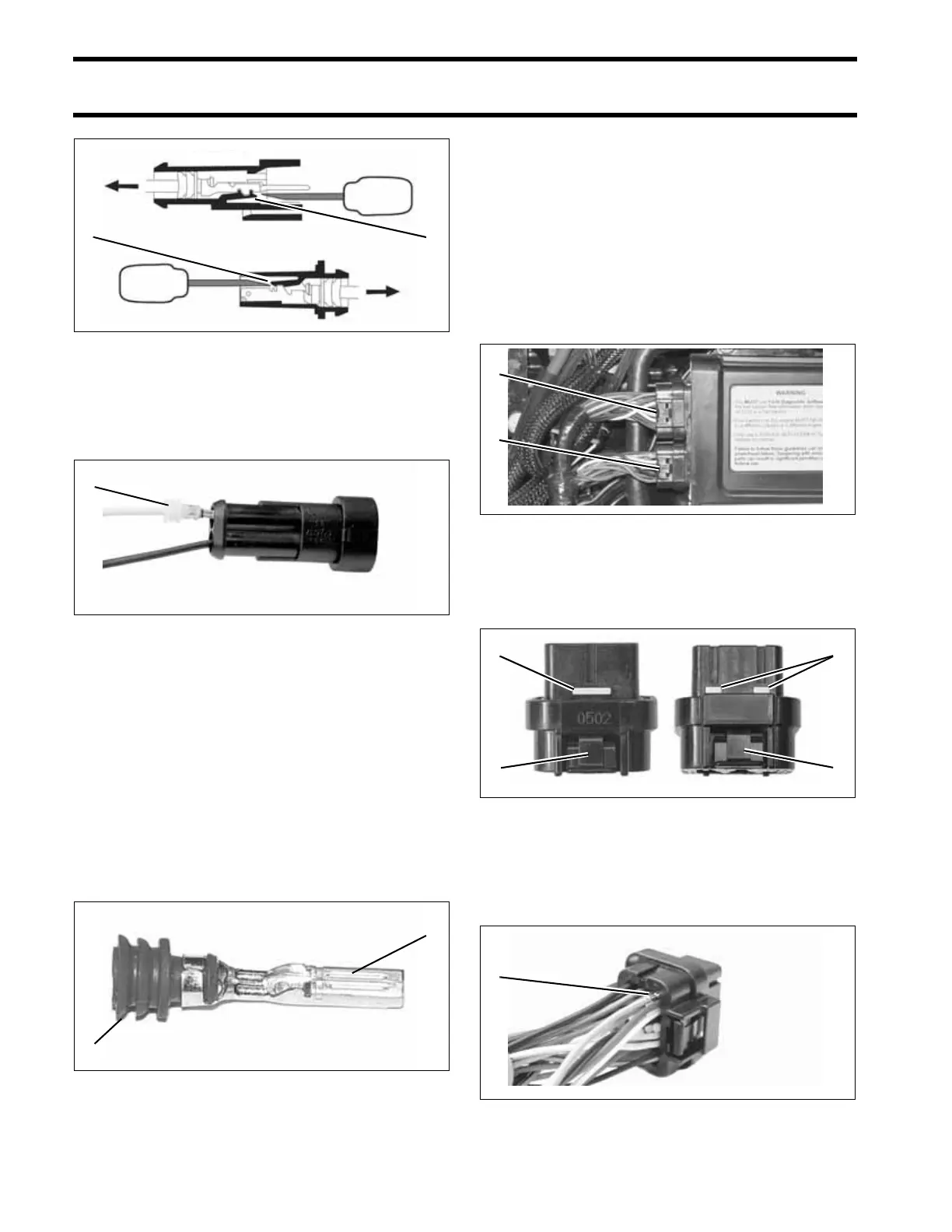

CONNECTOR SERVICING
Terminal Installation
Align terminal with connector housing. Push con-
nector and seal into housing until seated.
Align anti-backout device with connector housing
and terminals. Use Secondary Lock Installer,
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires the
PRO-CRIMPER II
†
with a specific crimping die
set.
The PRO-CRIMPER II hand tool assembly,
P/N 58583-1, comes with die assembly
P/N 58583-2.
SUPER SEAL
†
The J1-A and J1-B connectors of the EMM are
AMP Super Seal connectors.
Disconnect
Depress BOTH latches and pull connector from
plug.
Connect
Push connector into plug until latches engage.
Terminal Removal
Open lock mechanism and remove terminal from
connector housing.
Terminal Installation
Push terminal through seal until it is seated in con-
nector housing. Close lock mechanism.
1. Locking tab, plug
2. Locking tab, receptacle
002447
1. Terminal and seal 002451
1. Terminal
2. Seal
002452
21
1
1
2
1. Latch 002118
1. Latch
2. Lock mechanism
002453
1. Terminal 002454
1
1
2
1
2
1
1
