249
MIDSECTION

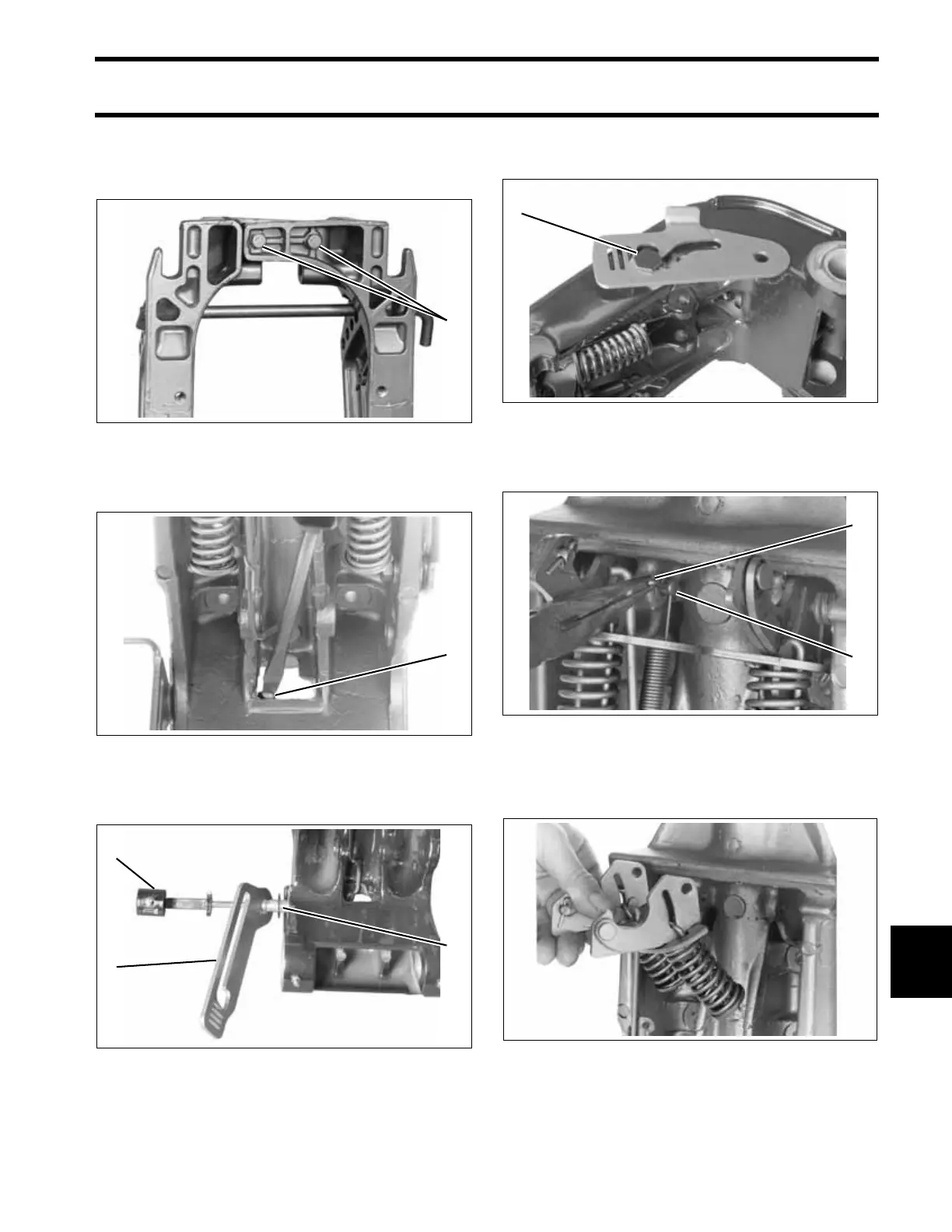

STERN BRACKET –MANUAL TILT MODELS
12
Remove the two stern bracket flange screws and
separate the stern brackets from the swivel
bracket.
Place the tilt/run lever in the RUN position.
Loosen the bellcrank setscrew.
Remove the tilt/run lever, port stop link, and bush-
ing from the swivel bracket.
Remove the starboard stop link retaining screw
and nut from the swivel bracket.
Remove the cotter pins from both reverse lock
pins. Remove the reverse lock pins and springs.
Remove the reverse lock assembly from the
swivel bracket.
1. Flange screws COA2992
1. Bellcrank setscrew COA2976
1. Tilt/run lever
2. Port stop link
3. Bushing
002204
1
1
3
1
2
1. Starboard stop link screw 002205
1. Cotter pin
2. Reverse lock pin
COA2979
COA2980
1
1
2
