251
MIDSECTION
STERN BRACKET –MANUAL TILT MODELS
12

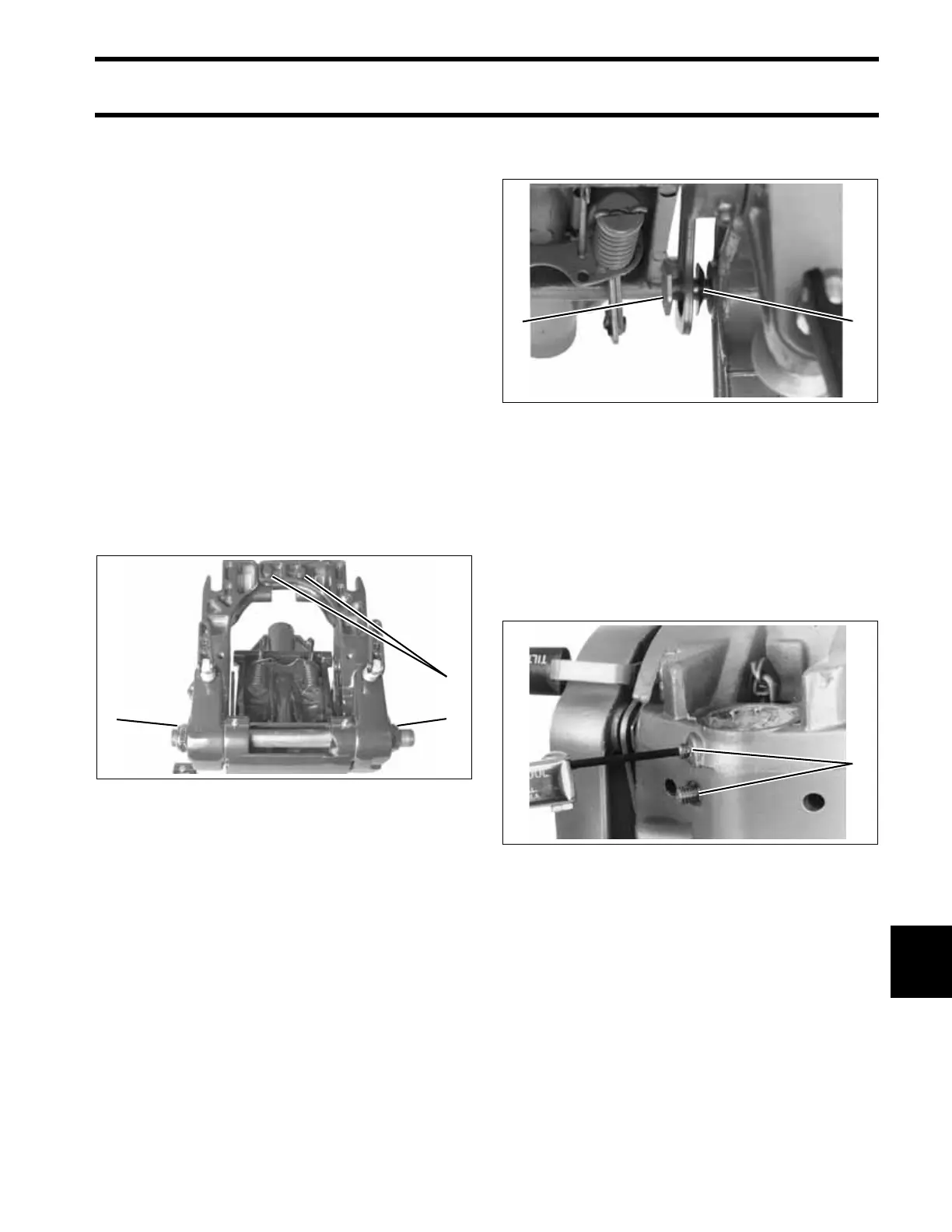

Place the swivel bracket between the stern brack-
ets.
Install the tilt tube through the following parts and
install the tilt tube nuts loosely:
• Starboard stern bracket
• Thrust washer
• Bushing
• Swivel bracket
• Bushing
• Thrust washer
• Port stern bracket
Apply Nut Lock to threads of the two flange
screws. Install the two screws through the star-
board stern bracket flange into the port stern
bracket flange. Tighten the screws to a torque of
144 to 168 in. lbs. (16 to 19 N·m).
Tighten the tilt tube nuts to a torque of 45 to 50 ft.
lbs. (61 to 68 N·m).
Install the thrust rod in the stern brackets.
Install the larger shoulder screw through the port
stop link, wave washer, and port stern bracket.
Install and tighten the nut to a torque of 144 to 168
in. lbs. (16 to 19 N·m).
Install the smaller shoulder screw through the
starboard stop link and stern bracket. Install and
tighten the nut to a torque of 144 to 168 in. lbs. (16
to 19 N·m).
Apply Ultra Lock to threads of large setscrews.
Install the screws in the swivel bracket so that one
thread remains outside the casting.
1. Tilt tube nuts
2. Flange screws
002206
2
11
1. Port stop link screw
2. Wave washer
COA2984
1. Setscrews COA2961
21
1
