TILLER HANDLE SERVICE – STANDARD
12

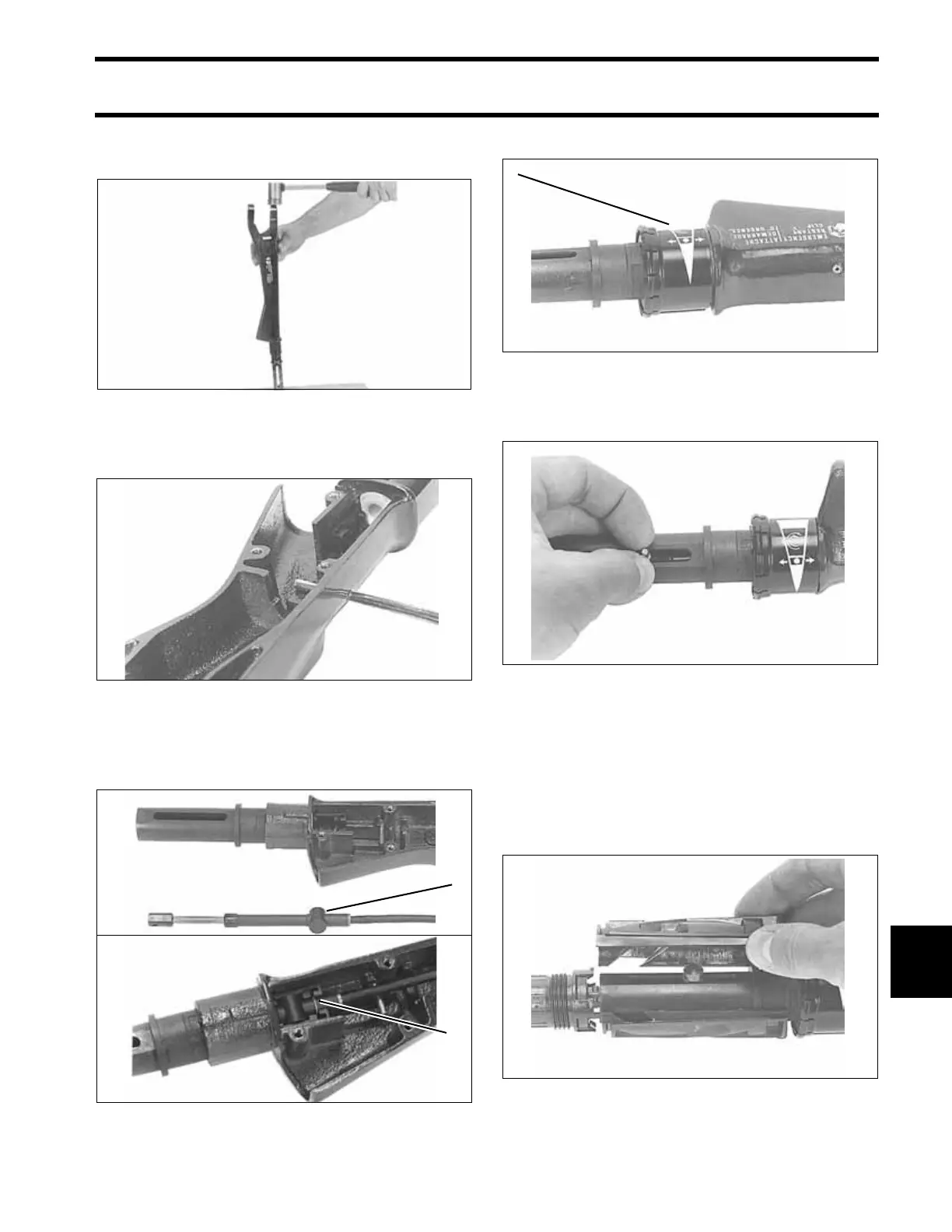

Install the metal outer handle over the plastic inner
handle and drive the outer handle into place.
Secure tab of the inner handle into recess of the
outer handle with the steel pin.
Install the handle end of the throttle cable. Snap
the throttle cable trunnion into the recess in the
handle. Install the retainer clip.
Install the throttle control plate on outer handle.
Push the throttle cable pin through the end of the
throttle cable.
Lubricate end of the pin, guides, rollers, helix
grooves, and inner handle guide slot with Moly
Lube. Place the guides over the roller pin and into
the slots of the inner handle. Place the rollers on
the ends of the roller pin. Assemble the helix
halves on the handle and slide the grip over the
helix.
31202
24285
1. Throttle cable trunnion
2. Retainer clip
24282
24286
1
2
1. Throttle control plate 24295
24294
24293
1
