47
INSTALLATION AND PREDELIVERY
OUTBOARD INSTALLATION
2
MANUAL TILT MODELS

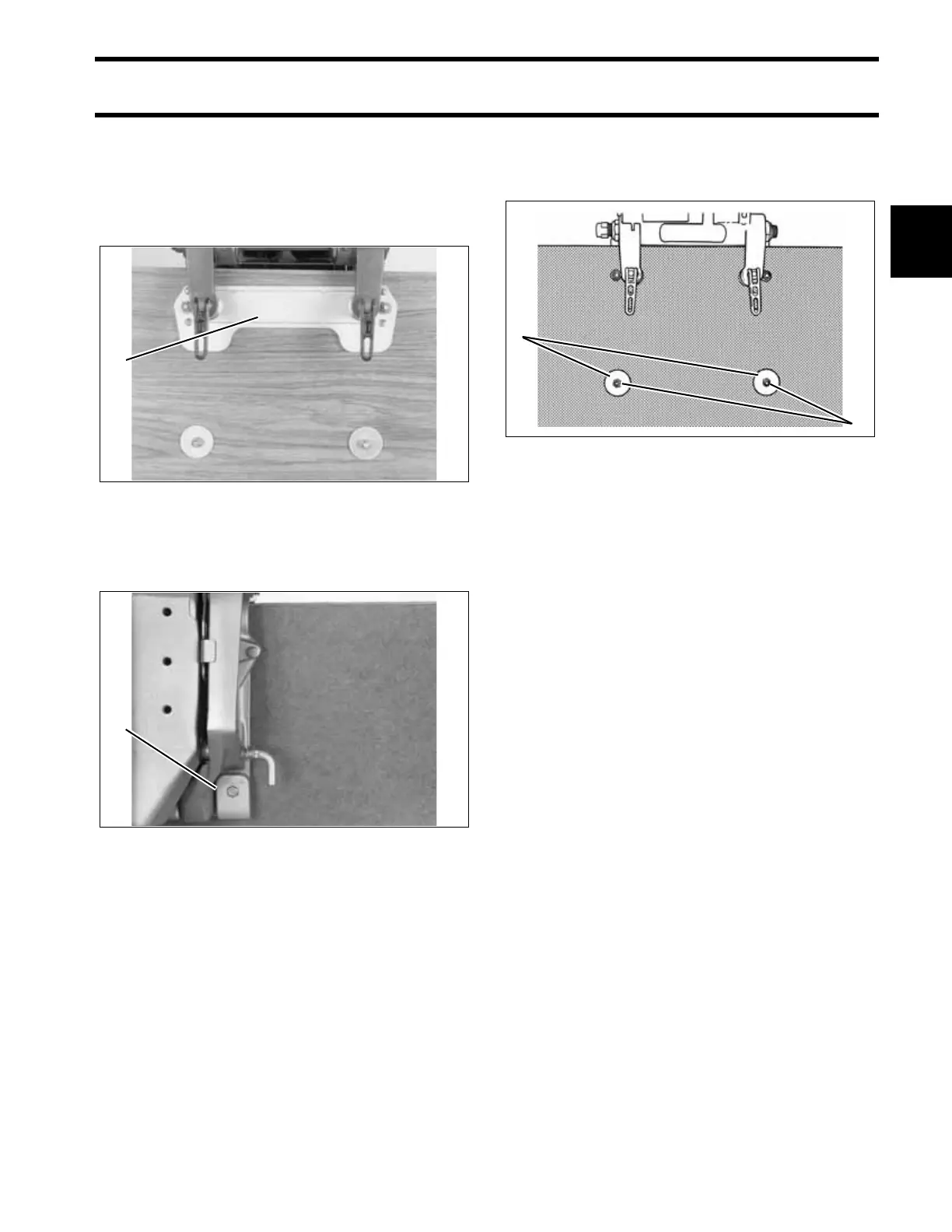

Manual tilt models require Transom Mounting Kit,
P/N 394219. The kit includes a transom mounting
plate and hardware for fastening outboard to tran-
som.
The kit also includes clamp pads, P/N 315774,
which must be used to secure mounting bolts in
slots at the bottom of the outboard stern brackets.
Install the mounting bolts through the stern brack-
ets and transom. Install round backing plates and
locknuts onto bolts and tighten securely.
1. Transom mounting plate 18961
1. Clamp pad COB2505
1
1
1. Round backing plates
2. Locknuts
DR26499
2
1
