Evolveo DoorPhone AP1 - Connection Diagram of 2 Monitors - Intercom Function; Product Information

60
PRODUCT INFORMATION
▶
Our station ID (SW4 Dip setting).
DIP SWITCH
Station ID ourdoor
DIP SWITCH
Station ID ourdoor
1
5
2
6
3
7
4

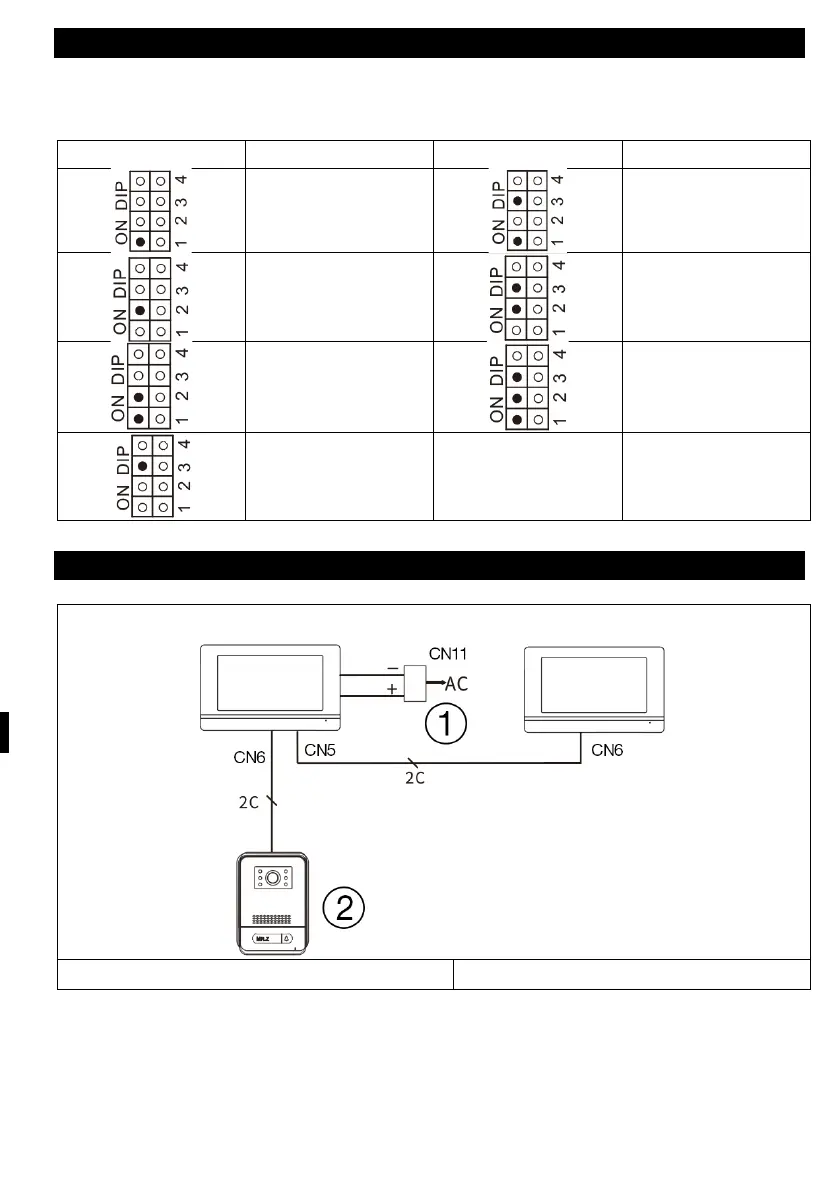

CONNECTION DIAGRAM OF 2 MONITORS - INTERCOM FUNCTION
(1 outdoor station for max. 2 indoor monitors)
1) power adapter
2) outdoor stations
Remark: 18V1A adapter as central power supply:
1. Diameter 0,2 mm 2 wires max length 20 meters.
2.
D
iameter 0,5 mm 2 wires max length 50 meters.
3
. D
iameter 0,75 mm 2 wires max length 100 meters
