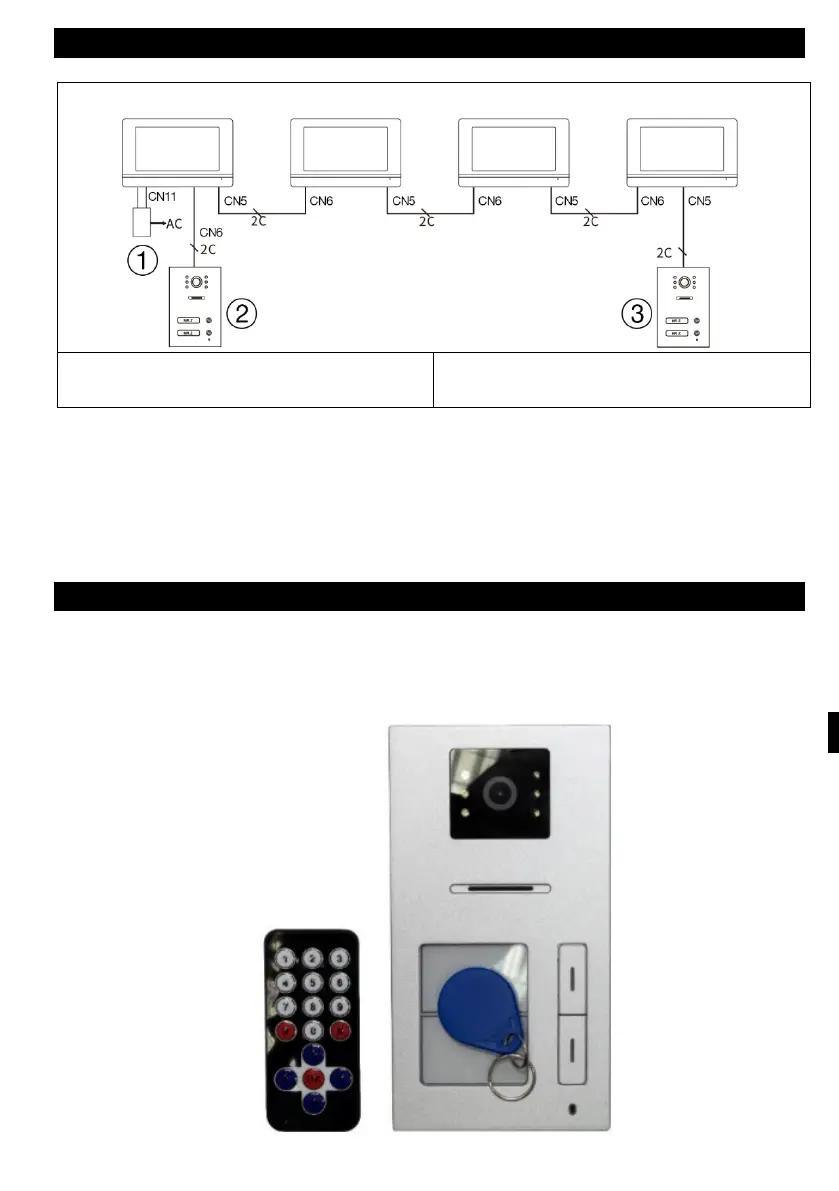

MULTI-MONITOR CONNECTION SCHEME - INTERCOM FUNCTION
(2 outdoor stations for max. 4 indoor monitors)
1) power supply
2) outdoor stations
3) outdoor stations
Remark: 18V1A adapter as central power supply:
1.
D
iameter 0,2 mm 2 wires max length 20 meters.
2.
D
iameter 0,5 mm 2 wires max length 50 meters.
3.
D
iameter 0,75 mm 2 wires max length 100 meters.
RFID CARD READER - SETTINGS
Steps for setting up access control to the outdoor station:
2 zones for learning RFID cards, zone 1 for 500 contactless cards, zone 2 for 100
contactless cards.
