EVS Multicam LSM User Manual

Color Code for Memory Block Status

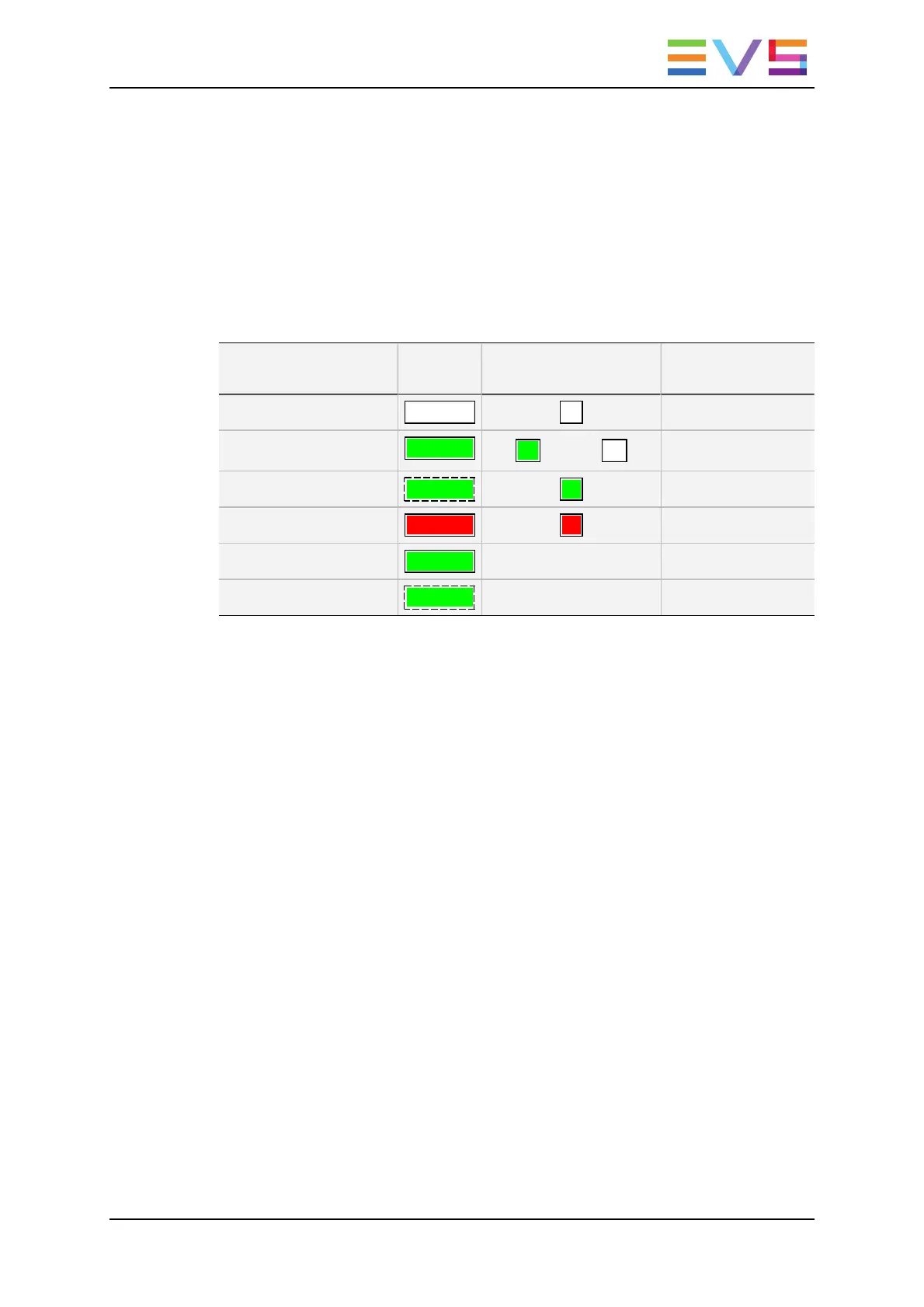

The memory blocks status are displayed using a common color code both directly on the
corresponding CAM keys on the LSM Remote Panel, and on the OSD monitoring of the
recorder corresponding to the hypermotion camera.
On the OSD monitoring, the block system is displayed as a suite of 4 squares, nnnn,
each corresponding to a memory block.
The common color code is as follows:
Color CAM Key Block Symbol
Memory Block
Status
Steady white
Block 1 1
Empty block
Steady green
Block 1
or 2
Recorded block
Blinking green
Block 1
Block in PLAY
Steady red
Block 1
Block in REC
Steady green
Block 1
<key> Block in REC
Blinking green
Block 1
<key> Block in REC
1
Empty transparent square.
2
White square for the Hi-Motion I Camera only.
Working with Single-Block Memory
The general recording and playback process when controlling the camera using a single-
block memory is the following:
1. Start the recording on the camera by pressing RECORD on the remote controlling the
hypermotion camera.
2. During the recording, you can set cue points (up to 255) on the recorded material by
pressing Mark.
3. Stop the recording in one of the following ways:
◦ Press Last cue to position the camera on the previous cue, taking the preroll into
account.
◦ Jog the dial to position the camera on the requested image.
◦ Press TAKE to stop the recording.
4. Press PLAY to start the playback.
During the playback, the material played on the hypermotion camera is recorded into the
server via the SDI connection.
