EVS Multicam LSM User Manual

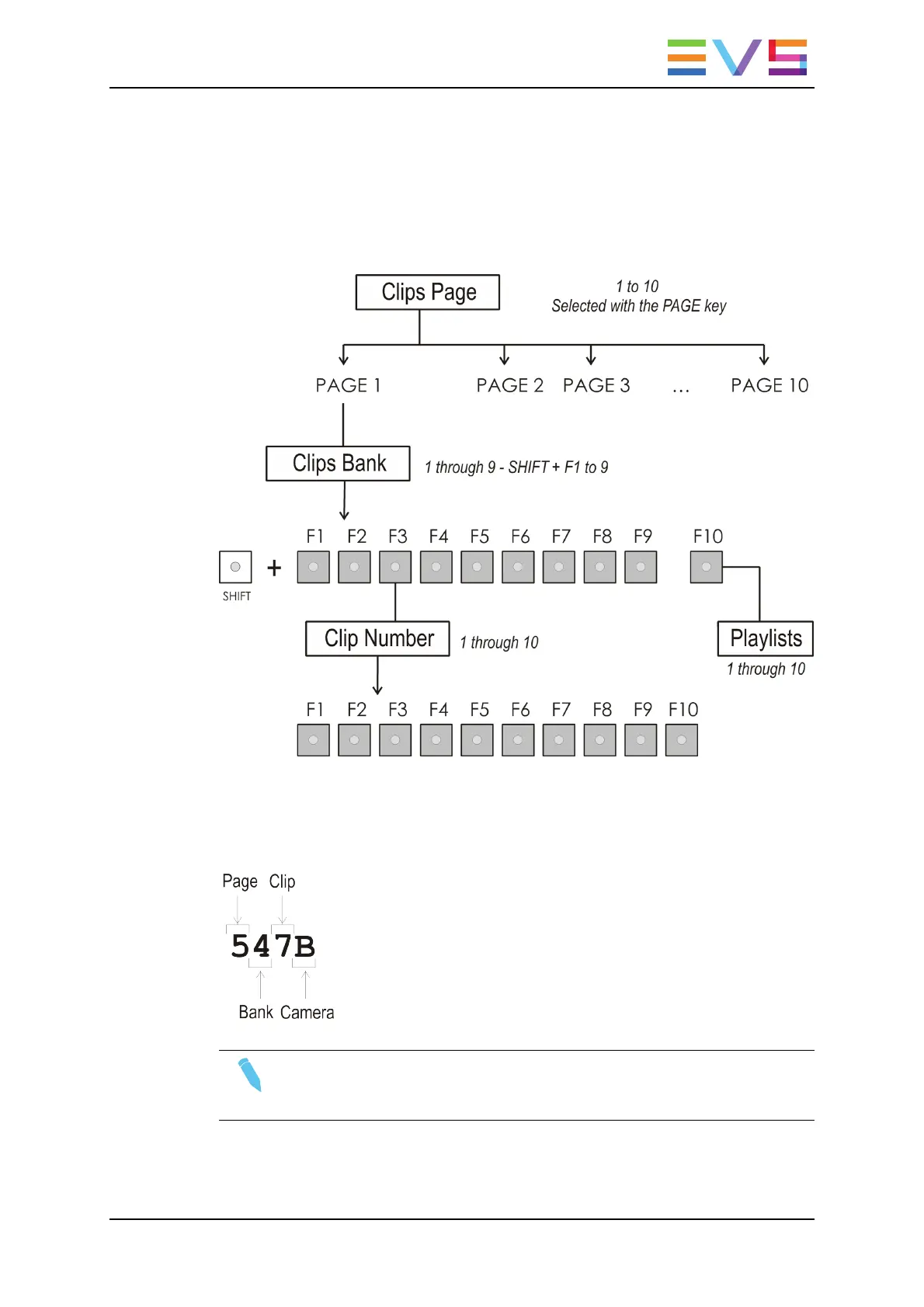

Clip Hierarchy Diagram
The following diagram represents the hierarchy of the Multicam clip numbering system.
As an example, clip number “112” is used:
Clip LSM ID
The clip numbering system is as follows:
In the example, the digits have the following meaning in the
numbering system:
• “5” refers to the clip page number (1 to 10).
• “4” refers to the clip bank (1 to 9)
• “7” refers to the clip number (1 to 10) inside the bank
• "B" refers to the camera name.
Note
To identify remote clips when using the XNet SDTI network, the number of the
clip is followed by the number of the machine on the network. i.e. Clip 547B/04
OPERATION MANUAL Multicam LSM 12.05
