Inspecting Fiber Ends
64 FIP-400B
Inspecting Fiber Ends (Single Fiber and Transceiver - Fiber Receptacles)

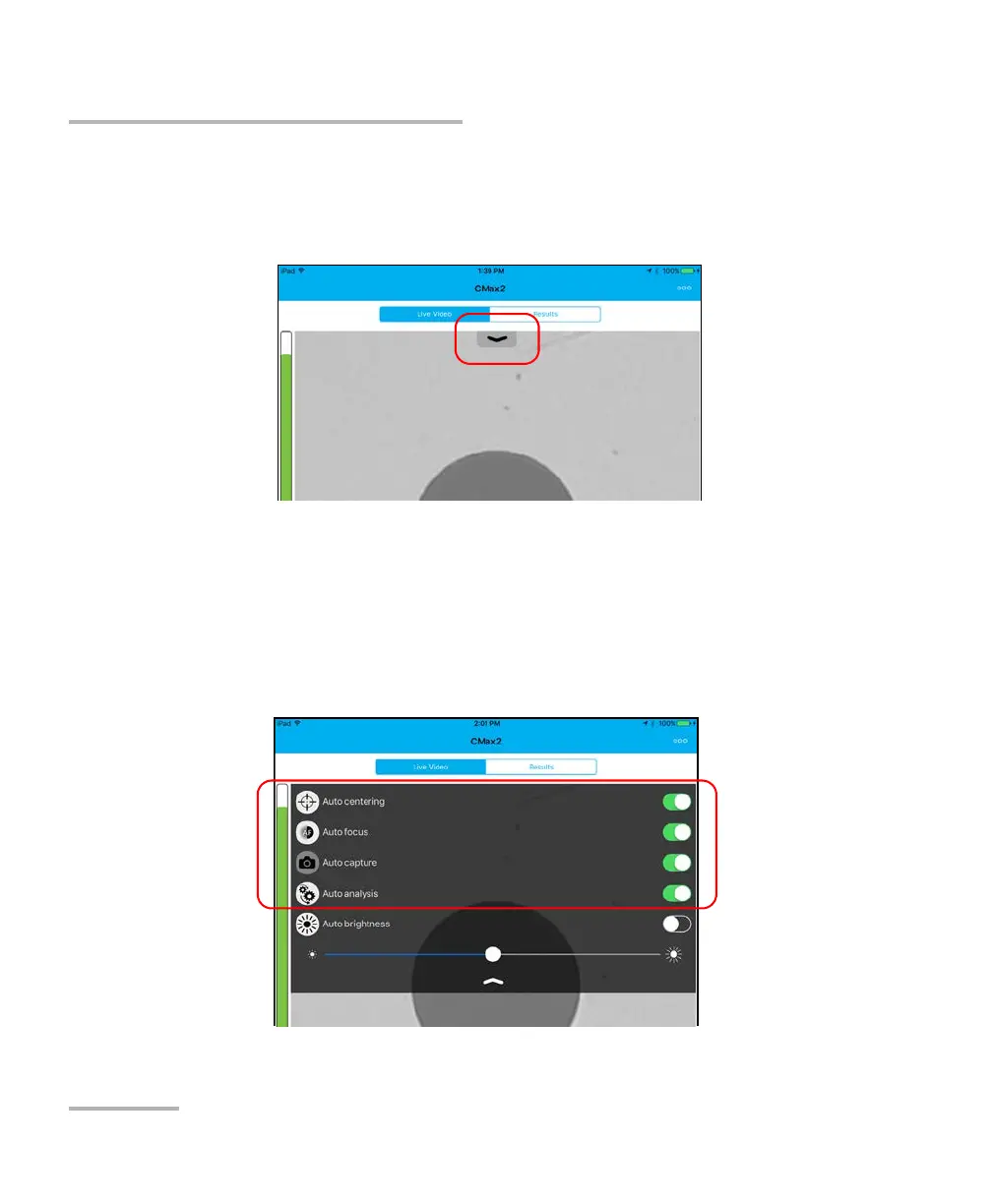

8. In Live Video mode, depending on the probe you are using, proceed as
follows:
8a. Touch the arrow.
8b. If you have an FIP-425B, select the auto analysis and the auto
centering by activating the button.
OR
If you have an FIP-435B, select the auto analysis, the auto
centering, the auto focus, and the auto capture by activating the
button.
For more information, see Analyzing Captures on page 83.
