Inspecting Fiber Ends
84 FIP-400B
Analyzing Captures
Auto capture: is possible with an acceptable focus level. It is enabled if
the auto centering and auto focus are activated. The auto capture is
possible only in high magnification. For more information, see Setting
up Auto Capture on page 40.
Note: The auto capture feature is not available for FIP-425B and FIP-435B
MF-Ready probes when testing multifiber connectors.
Auto analysis: displays 4 inspection zones: core, cladding, adhesive,
and contact. It is enabled only in high magnification and with a good
focus.
The results are available as an image or in a detailed table.

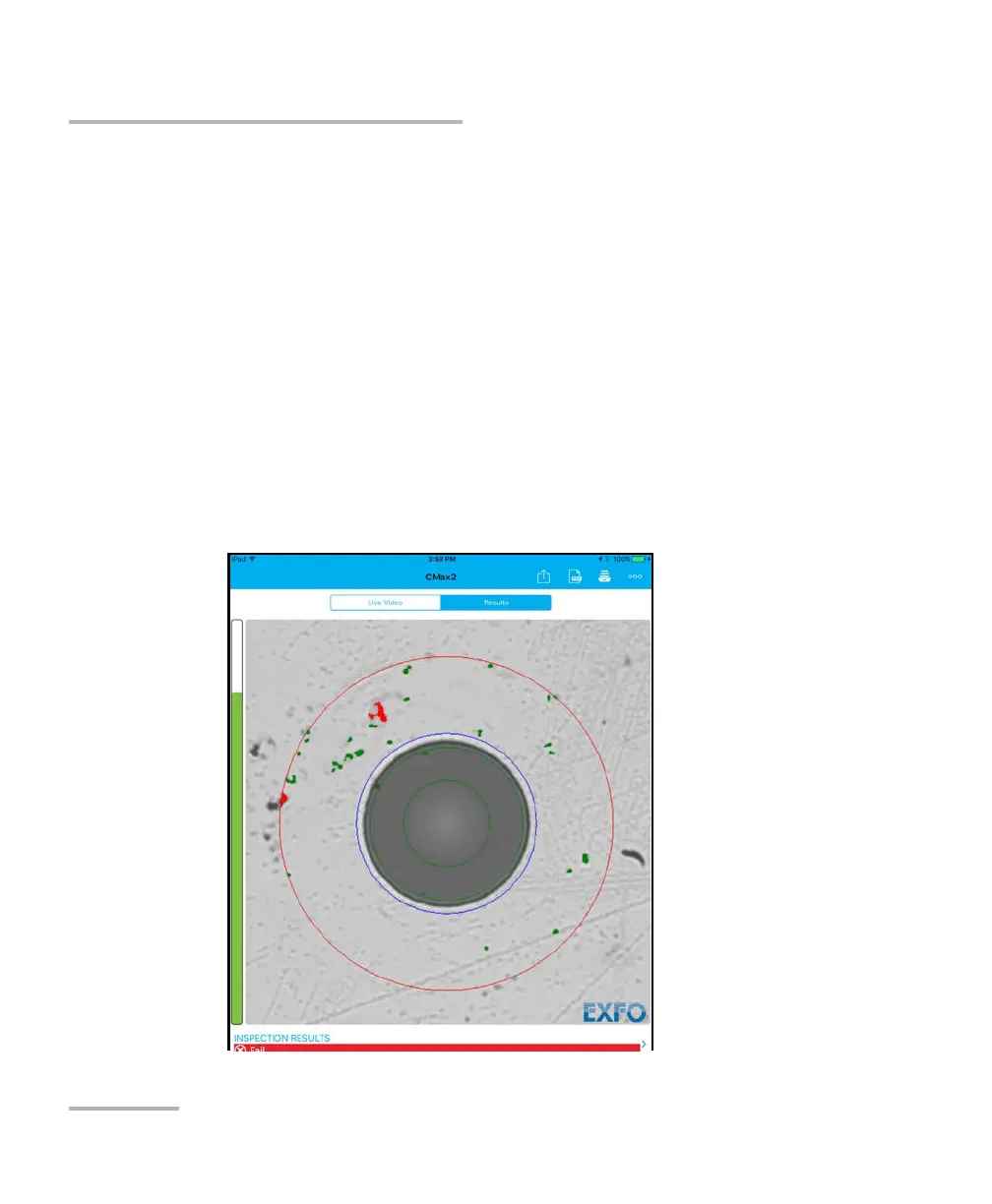

The Image shows the snapshot of what has been captured. You can
see all the anomalies that have been detected.
