Inspecting Fiber Ends
Fiber Inspection Probe 87
Analyzing Captures
To view the results (multifiber connector):
1. Perform the three captures. See Inspecting Multiple Fiber Ends
(MF-Ready Probes Only) on page 65 for details.
2. In the Results window, tap the number of the fiber you want to view.
OR
Swipe directly on the screen to make your selection.

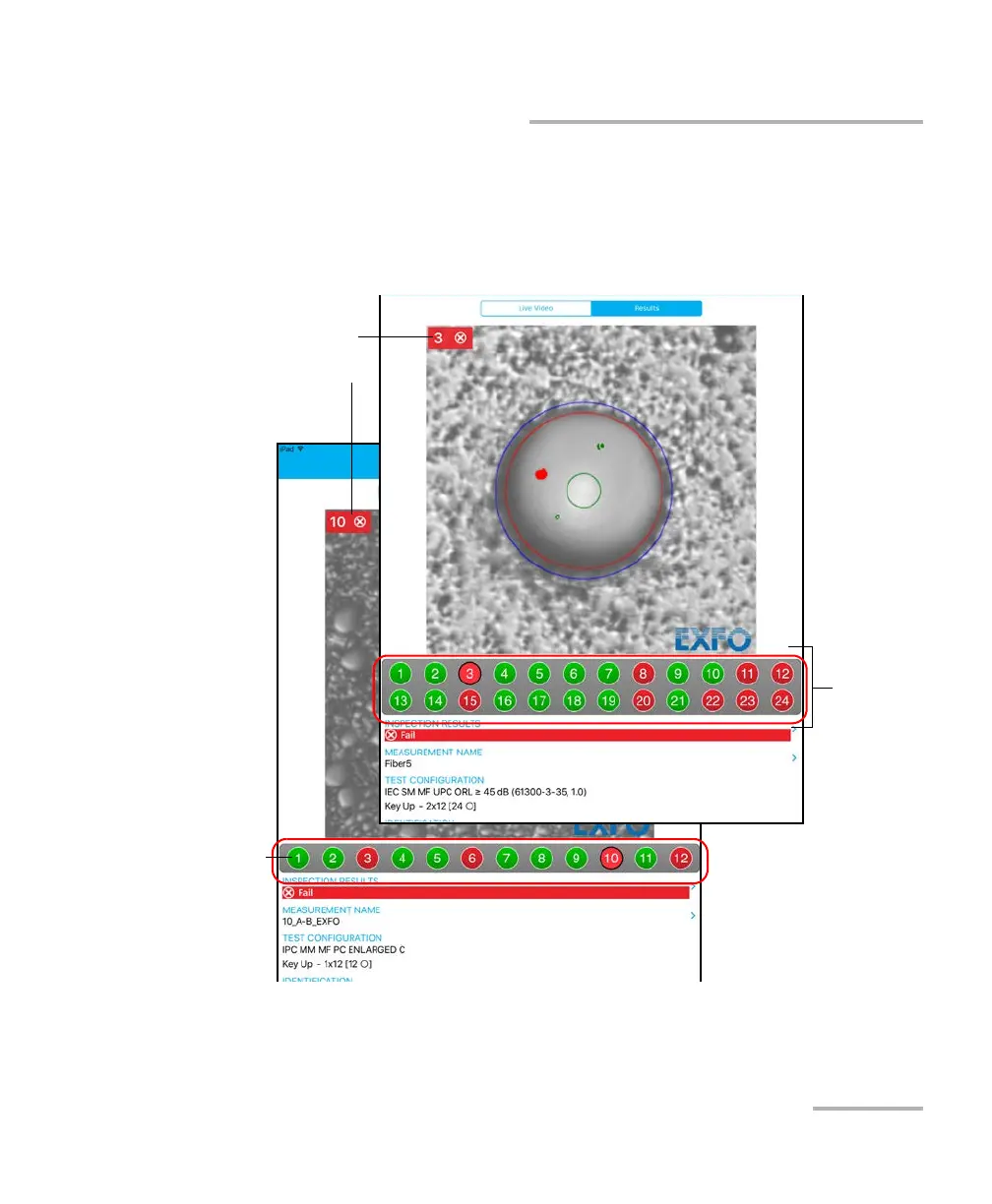

The color in the background
indicates the global status of
the connector.
Single-row
multifiber
connector
Dual-row
multifiber
connector
