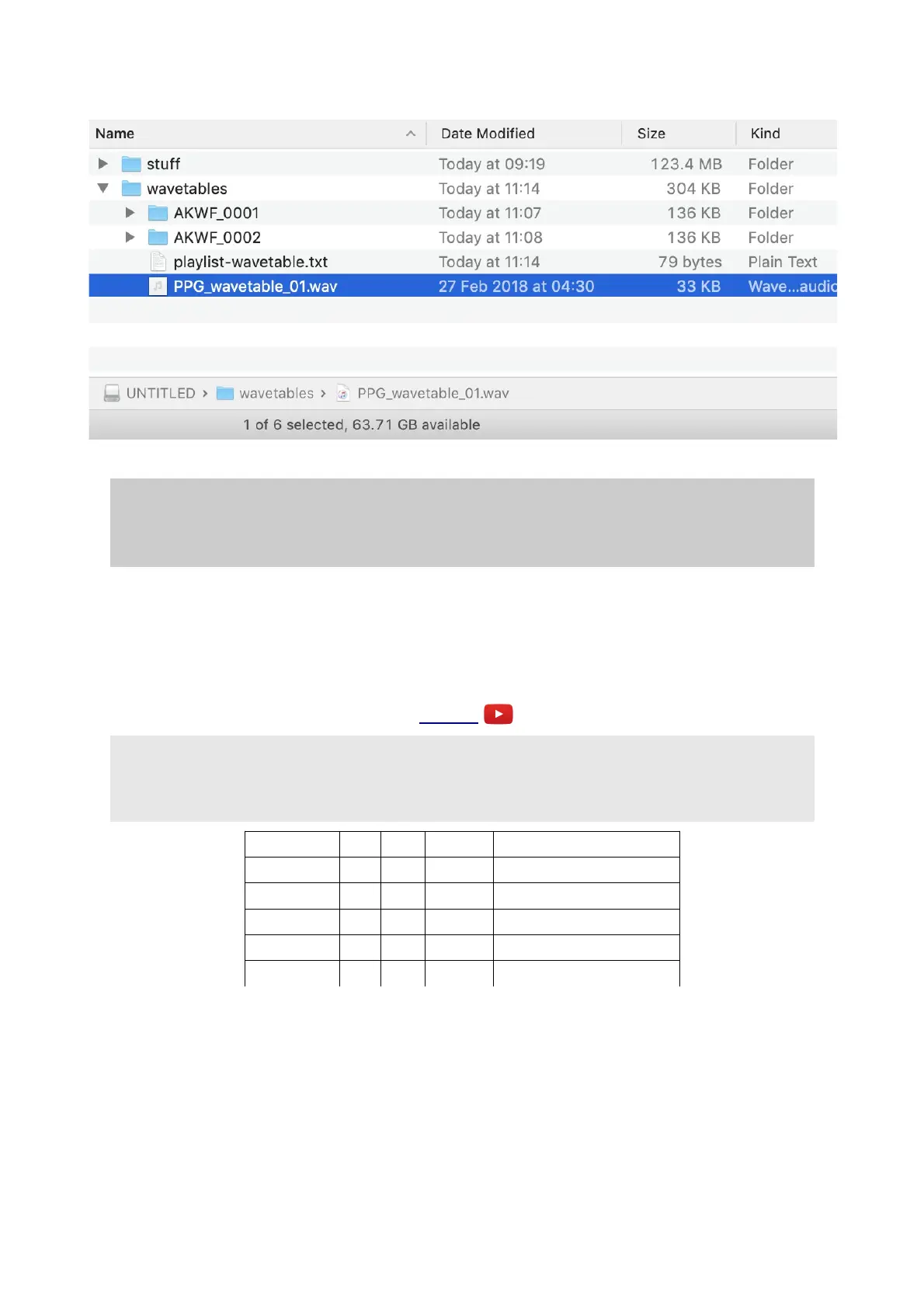

An example using a concatenated wavetable file would look like this:
where "playlist-wavetable.txt" contains
disting playlist v1
PPG_wavetable_01.wav
-wavelength=256
AKWF_0001
AKWF_0002
The first entry 'PPG_wavetable_01.wav' is used as a single WAV file containing concatenated wave
cycles, each of length 256 frames. The remaining entries are taken as folders of individual wave
samples.
K-2 Clockable Wavetable LFO
Video
X is clock input
Y is wavetable input
Z is integer multiplier/divider
A & B are wavetable output
Parameter Min Max Default Description
0 0 99 0 Chooses the wavetable.
1 -32 32 0 Y Offset.
2 -32 32 32 Output A attenuverter.
3 -32 32 -32 Output B attenuverter.
4 -15 8 0 LFO time multiplier.
This algorithm offers a wavetable oscillator intended for LFO use, though with an audio rate clock
it can also be used at audio frequencies. Consider it a combination of the Wavetable VCO and the
Clockable LFO.
See 'Loading wavetables' above for a description of how to load wavetables onto the SD card.
Input X is the clock input. Any clock pulse in excess of 1V can be used. The time between rising
trigger edges is used to set the cycle time.
The Y input controls the lookup point in the wavetable, with a range of ±5V covering the whole
Page 92
