Turntable control SmartTurn
Installation and commissioning
Dok-ID:EXPERT-0003-EN-2011 47
Continuous mode
The following diagram shows the signal exchange with the PLC as
an example.
Switch S1 in position 1-4
Function Signal Pin
Operating mode
E4
7
Forward on
E1
1
Forward start
A1
2
Backward on
E2
3
Backward start
A2
4
Slow on
E3
5
0-position
A3
8
Position forward
A8
14
Position back
A9
15
In the lock angle
A10
17
System fault
A6
11
Motor is turning

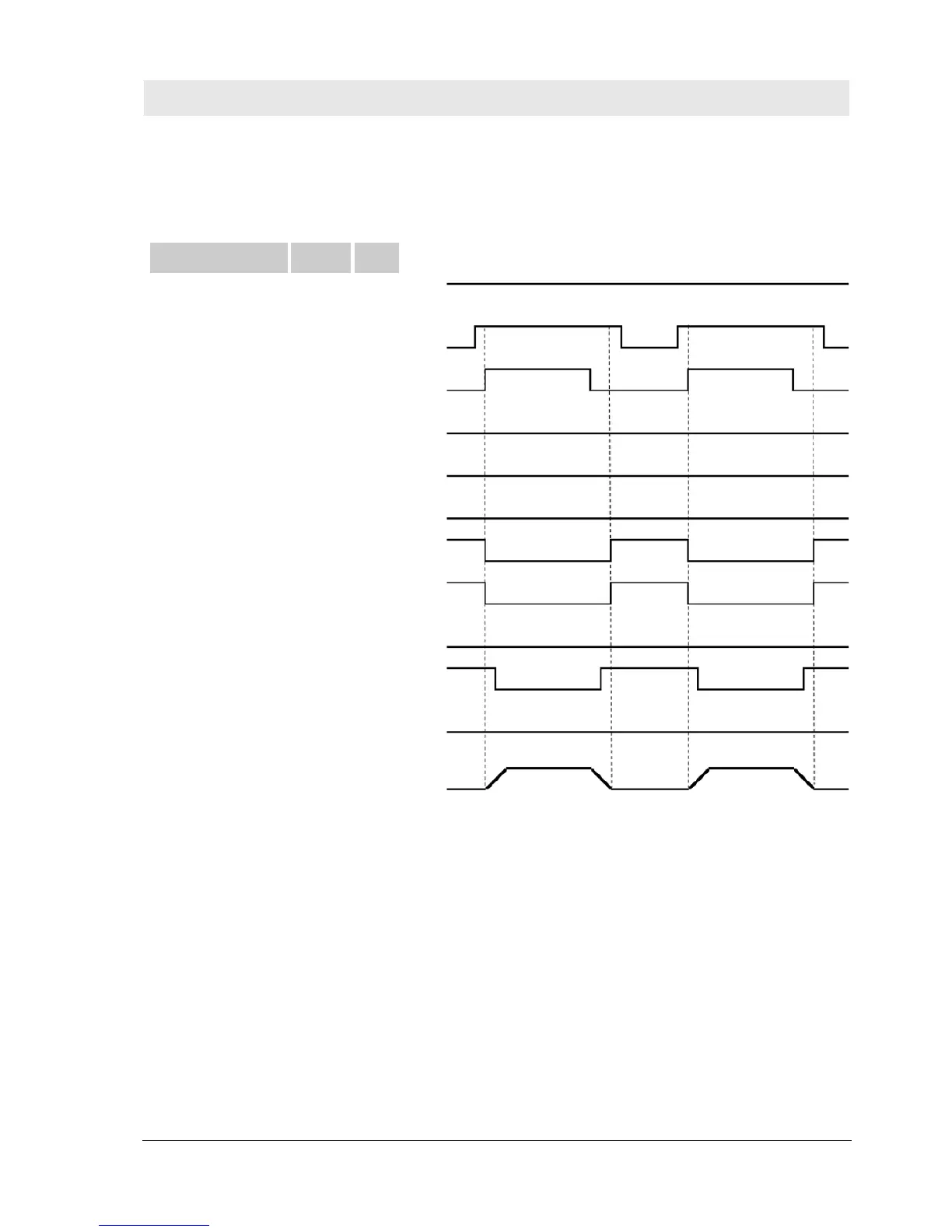

Fig. 21 Sequence graphic – continuous mode
