Quantum Series Videowall Processing Systems • Installation and Maintenance 31

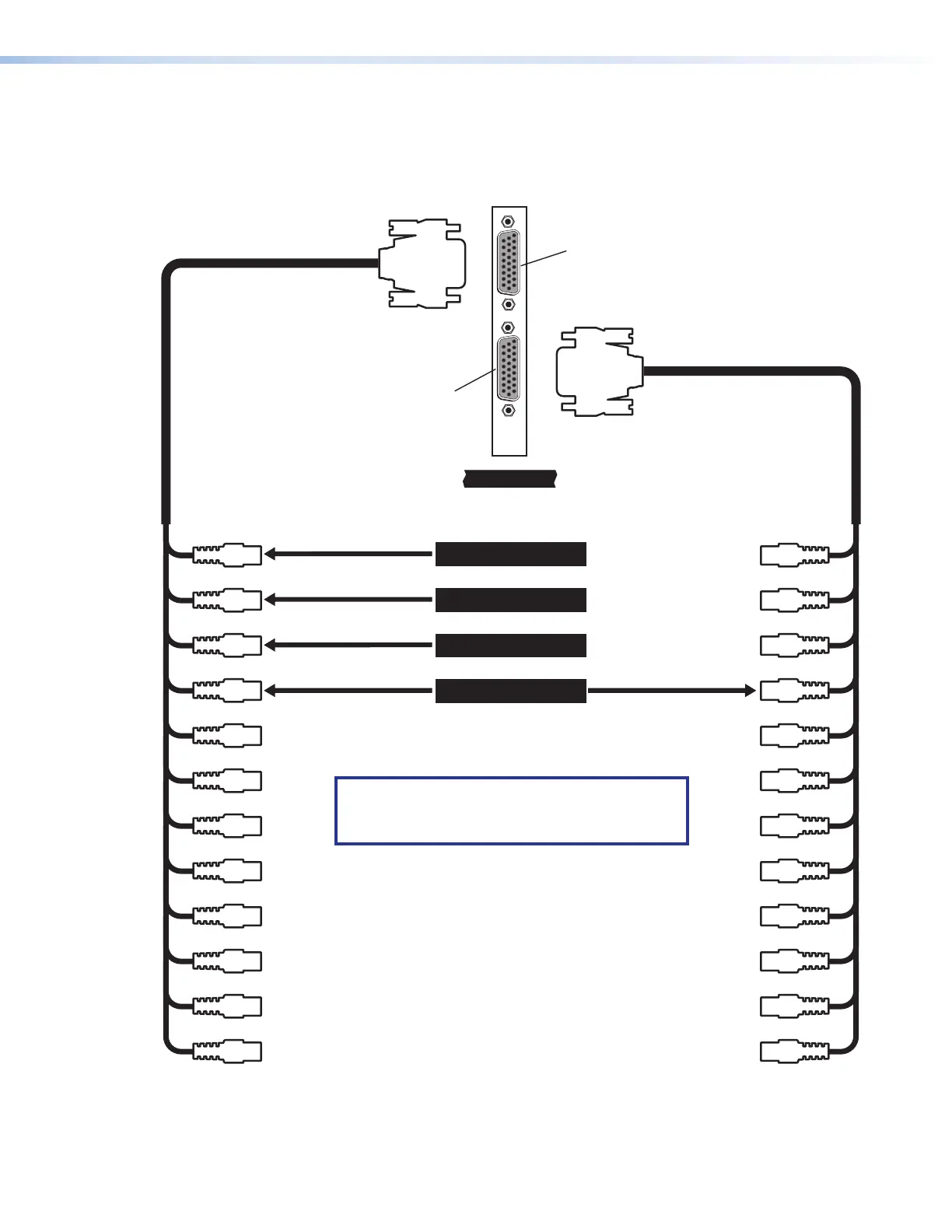

Video and S-video connection example
The diagram below shows an example of composite and S-video sources connected to
the Video/S-video input card via breakout cables.
8
IN
DVD
Composite
Breakout Cable
Breakout Cable
TUNER
Composite
CAMERA
Composite
S-VIDEO DEVICE
Y
C
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
Composite Video
or Y of S-video
C of S-video Only
Video Input Card
NOTE: The Y and C outputs of an S-video
source must be connected to the same input
number on both cables.
Figure 21. Video/S-video Input Card Connection Example
