Quantum Series Videowall Processing Systems • Installation and Maintenance 43
Connection and mapping examples
All of the display layout examples in figures 32 (below) and figure 33 (on the next page)
show channel numbering as seen from a viewing position in front of the screen. The digits
to the left of the decimal point are the slot number of the card, and the digit to the right of
the decimal point is the output channel number. Note that the actual slot numbers may
vary between systems, but Extron recommends that you start with the lowest numbered
card slot in the top left corner.

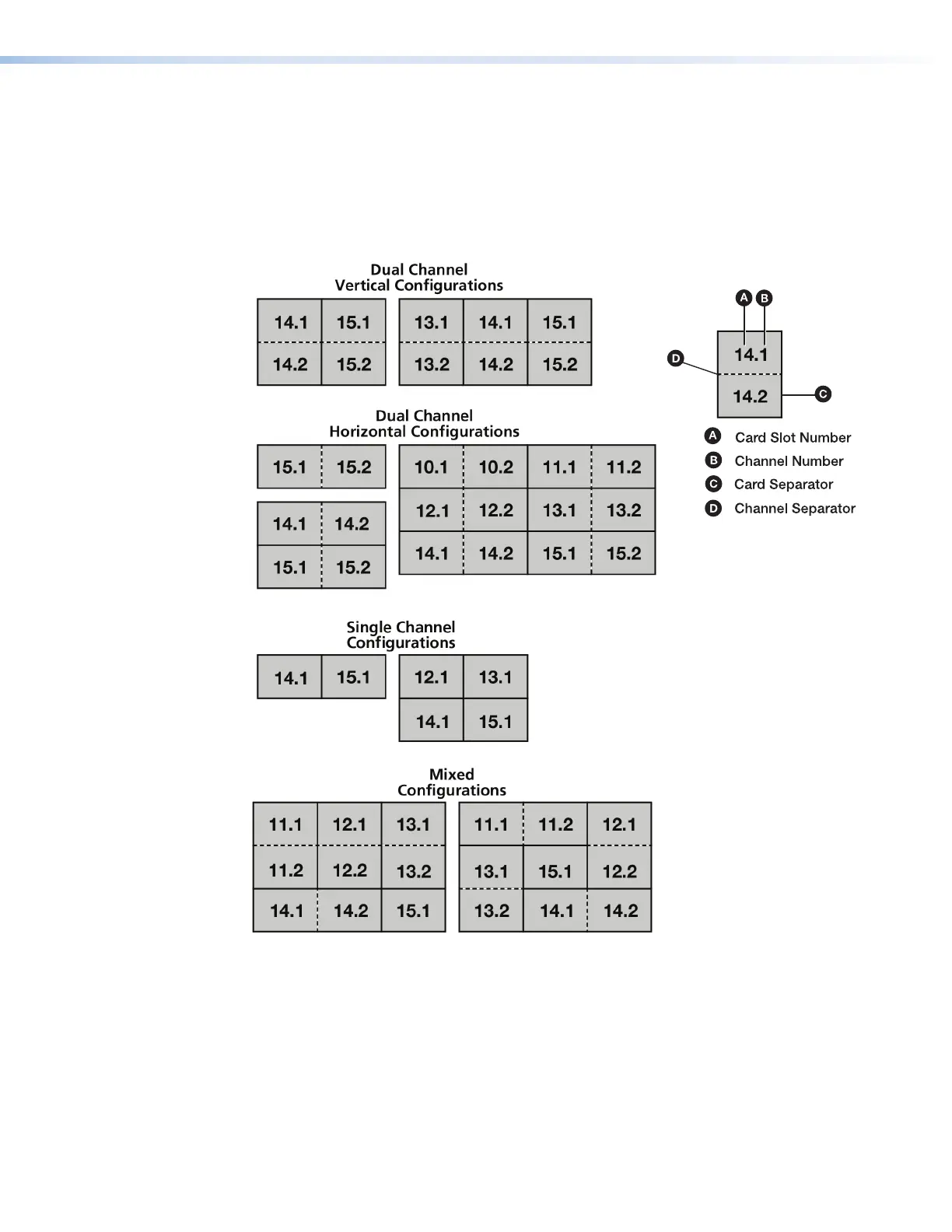

Figure 32. Channel Mapping Examples for Quantum Elite 615
