Quantum Series Videowall Processing Systems • Installation and Maintenance 53
Front panel — Quantum Elite 615
The following front panel features are located behind the upper and lower access panels.
POWER

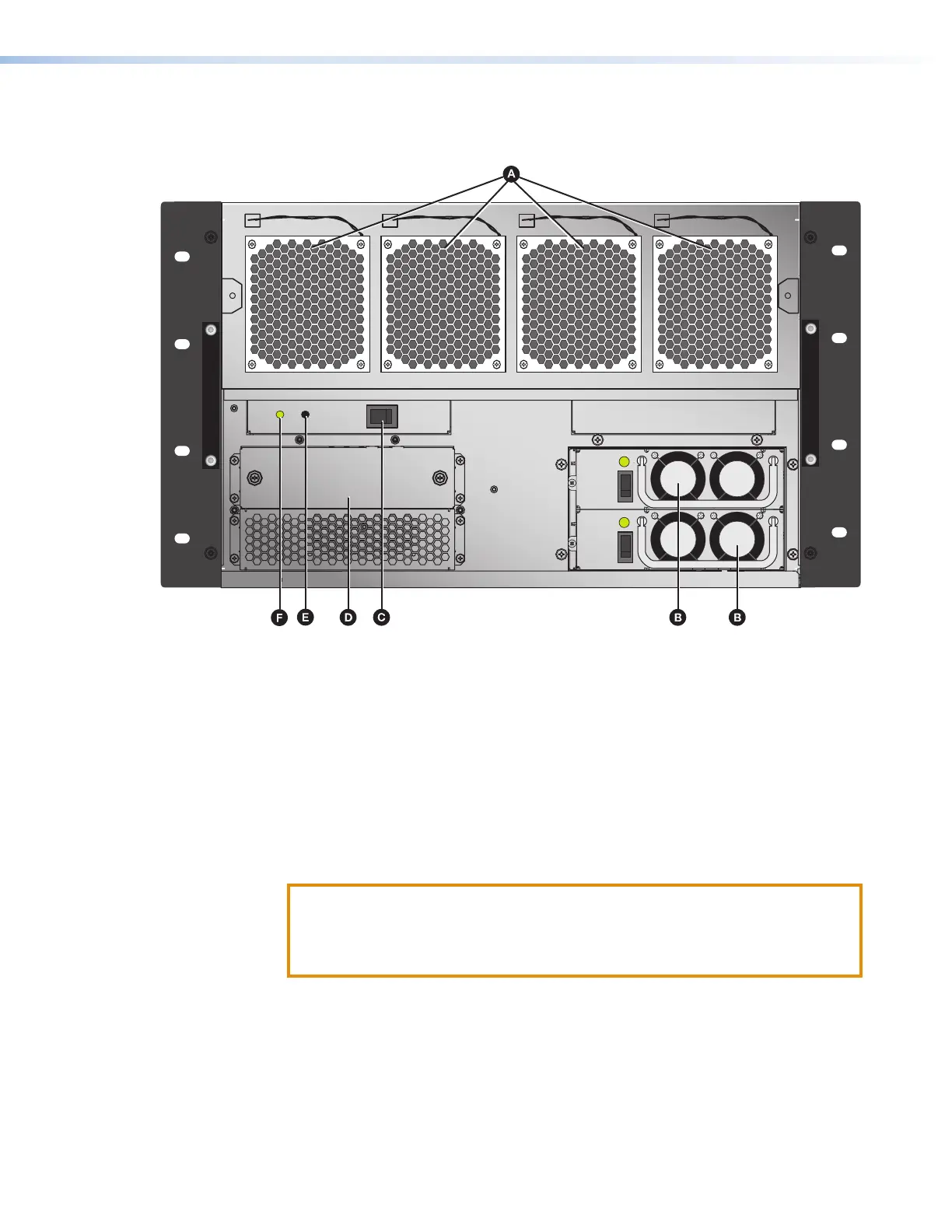

Figure 43. Quantum Elite 615 Front Panel
A
Fans
D
Flash drive bay
B
Power supply units (PSUs)
E
Data LED
C
Power switch
F
Power indicator LED
A
Fans — These four cooling fans, located behind the upper access panel, provide
forced-air ventilation, drawing air in through the upper access panel and exhausting
via the rear panel vents. The fan modules are hot-swappable — if a fan fails, it can be
replaced while the unit is powered on (see Replacing a fan on page 57).
These fans may need to be cleaned periodically (see Cleaning Ventilation Grilles
and Filters on page 57).
ATTENTION:
• If a fan fails, replace it as soon as possible to avoid overheating.
• Si un ventilateur tombe en panne, remplacez-le dans les plus brefs délais afin
d’éviter la surchauffe.
