15
ENGLISH

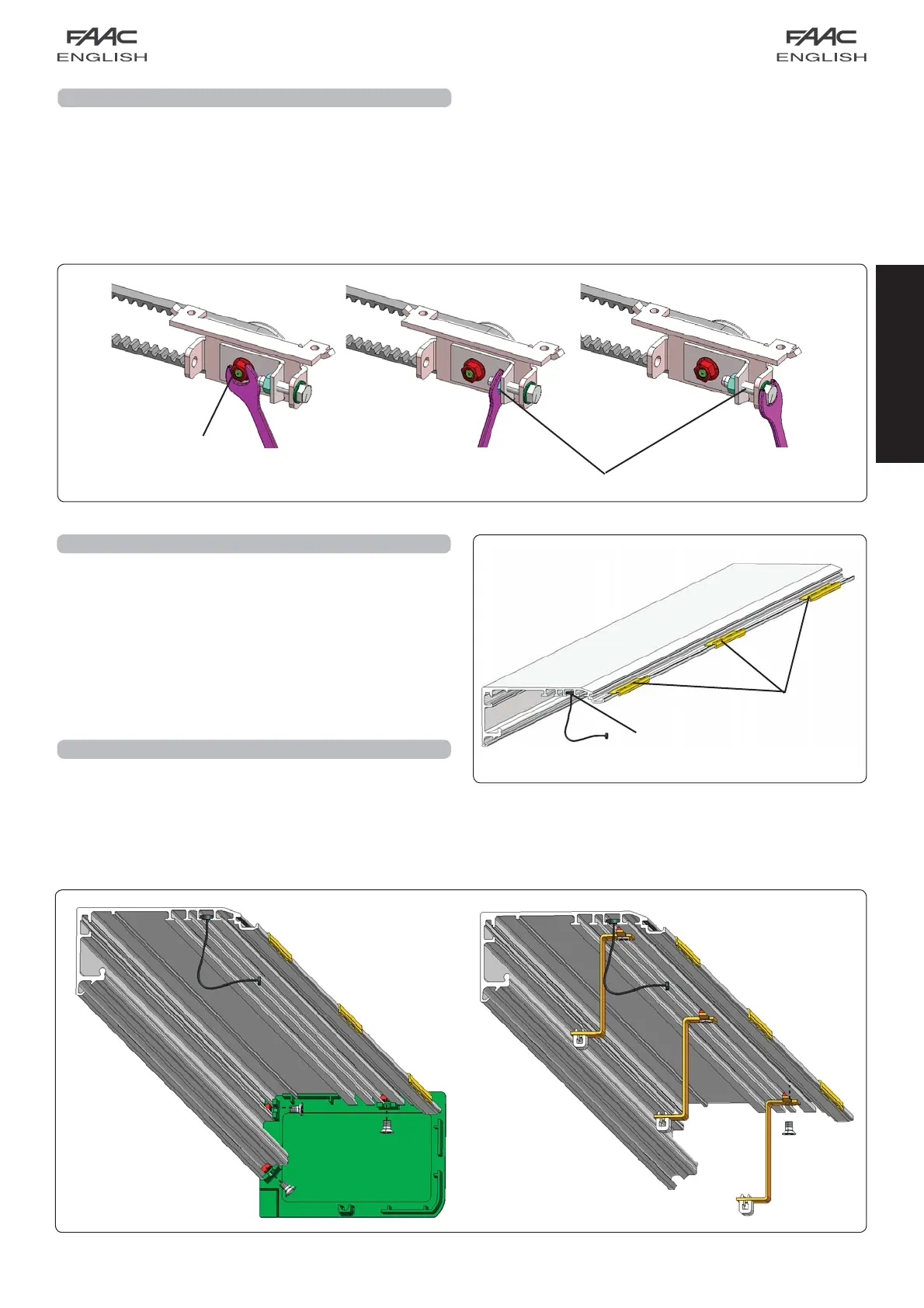

8A ADJUSTING BELT TENSION
Make sure that the belt is not too loose or too taut.
Belt tensioning procedure:
• Loosen the nut (Fig. 23 ref. ).
• Turn the screw and bolt (Fig. 23 ref. ) to tighten or loosen
the belt.
• After controlling tension, tighten the nut (Fig. 23 ref. )
Check if the parachute cables are present, and, if necessary,
secure them on the two ends of the support profile, housing the
bigger end of the cable in the seats (Fig. 24 ref. ).
Check if the three anti-vibration spacers (Fig. 24 ref. ) are
present, and, if necessary, insert them on the outer edge of the
support profile, positioning them at the ends and centrally (for
profiles of over 3 meters).
9A INSTALLING THE PARACHUTE AND THE SPACERS
10A INSTALLING THE SIDE PANELS
Fit the side panels as shown in Fig. 25. ref.. The figure shows the
installation of the right hand side panel - proceed in the same
way for the left panel.
If you do not wish to install the side panels, install 3 brackets to
secure the housings - two at the sides and one in the centre (for
profiles of over 3 meters) as shown in Fig. 25 ref. .
fig. 23
fig. 24
fig. 25
