14
ENGLISH

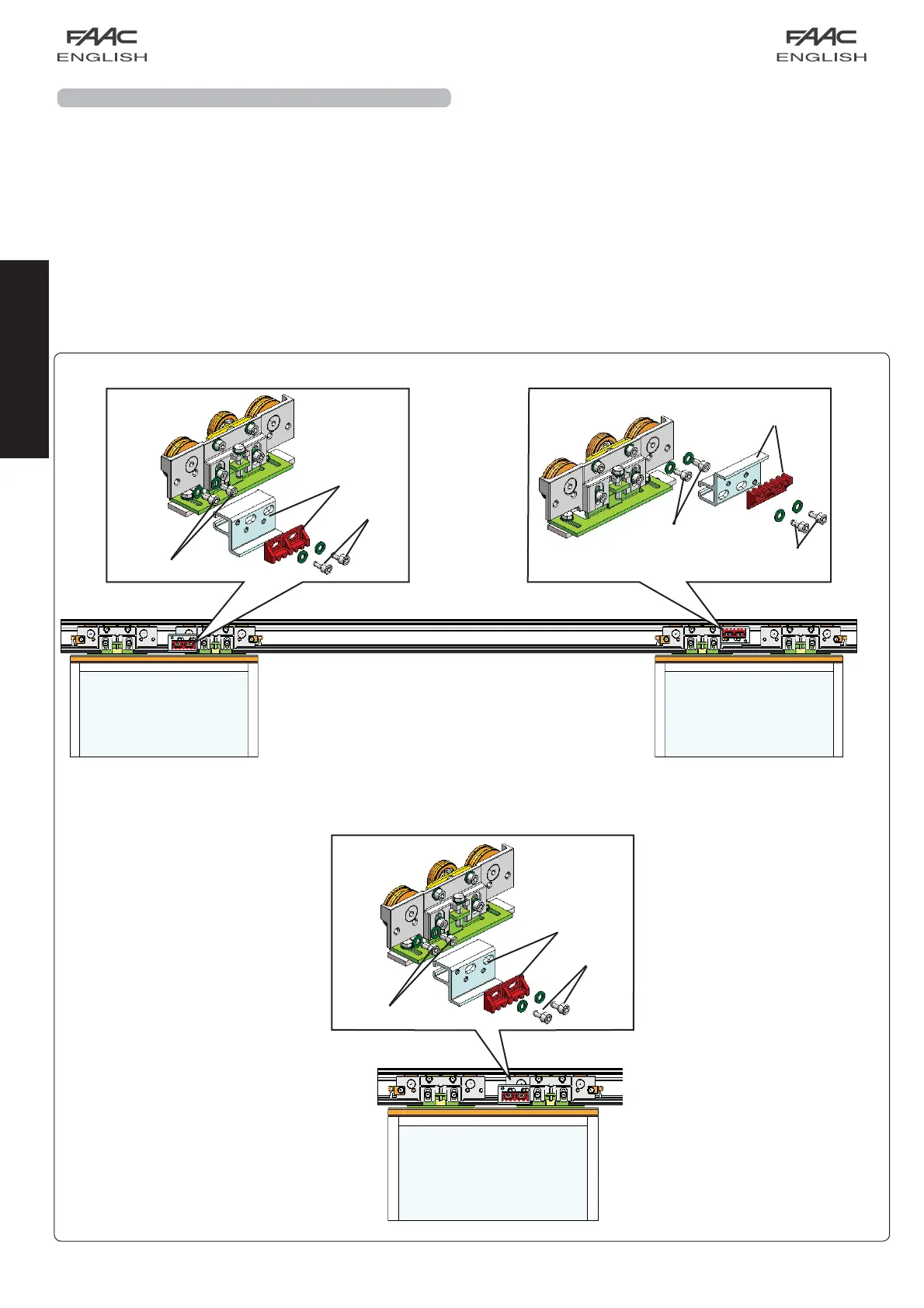

7A ADJUSTING THE BELT FASTENING ON CARRIAGES
The automated system is supplied with the belt fastened to the
carriages by the fastening fittings (Fig. 22 ref. ) It is usually
unnecessary to modify this fastening, but, if it is necessary to
adjust finely, proceed as follows:
• Take the automated system into closing position.
• Turn the two pairs of screws (Fig. 22 ref. and ) of each
carriage to obtain the required adjustment.
• Tighten the screws (Fig. 22 ref. and ) .
• Check if the closing contact point between the two leaves
corresponds to the support profile mid-point and if the leaves
are able to open and close completely.
Transit space
Transit space
Transit space
LH opening single leaf
RH opening single leaf
fig. 22
