50
ENGLISH
A
B
C
B
C
C
B
A
MOTOR LOCK SUPERVISION
This accessory (Fig. 51 ref. C) makes it possible to verify correct
operation of the motor lock and, if it stays locked while open,
signals an error via the control board or SD-Keeper.
To activate motor lock surveillance, the function must be set with
the control board or SD-Keeper.
BATTERY KIT
Instructions to connect and install the battery kit:
• cut out mains power supply;
• insert the connector of the battery pack in connector J16
of board E100;
• power up the mains supply again;
• using SD-Keeper+Display, activate the “Battery Kit” and set
the operating parameters you require (refer to the dedicated
section in this manual);
IMPORTANT: TO AVOID DAMAGING THE BATTERY BOARD,
THE BATTERY BOARD MUST ALWAYS BE ACTIVATED AND
DISABLED WHILE NO MAINS POWER IS SUPPLIED
MOTOR LOCK
Motor lock installation procedure:
• cut out mains power supply;
• connect the motor lock connector to J5 of board E100;
• power up.
TO AVOID DAMAGING THE MOTOR LOCK, ALWAYS
ACTIVATE OR DISABLE IT WHEN NO POWER IS SUPPLIED.
In the standard configuration:
The motor lock locks the leaves only in “Night” operating function;
- if operating on batteries in the Night mode, if the batteries
discharge, the motor lock continues to lock the leaves.
With SD-Keeper+Display or E100, you can change the operation
of the motor lock.
ACCESSORIES
BROWN
BROWN
WHITE
YELLOW
WHITE
GREEN
PINK
Connect to J5
E100 board
motor lock release microswitch
motor lock monitoring microswitch
ANTI-PANIC BY BREAK-OUT
This accessory enables the leaves to be opened by pressure; to
install it, refer to the specific instructions.
If installing the anti-panic by break-out facility, a sensor or
photocell must be connected to the EMERG1 input (via SD-
Keeper+Display) configured for commanding immediate stop
of the movement (STOP).

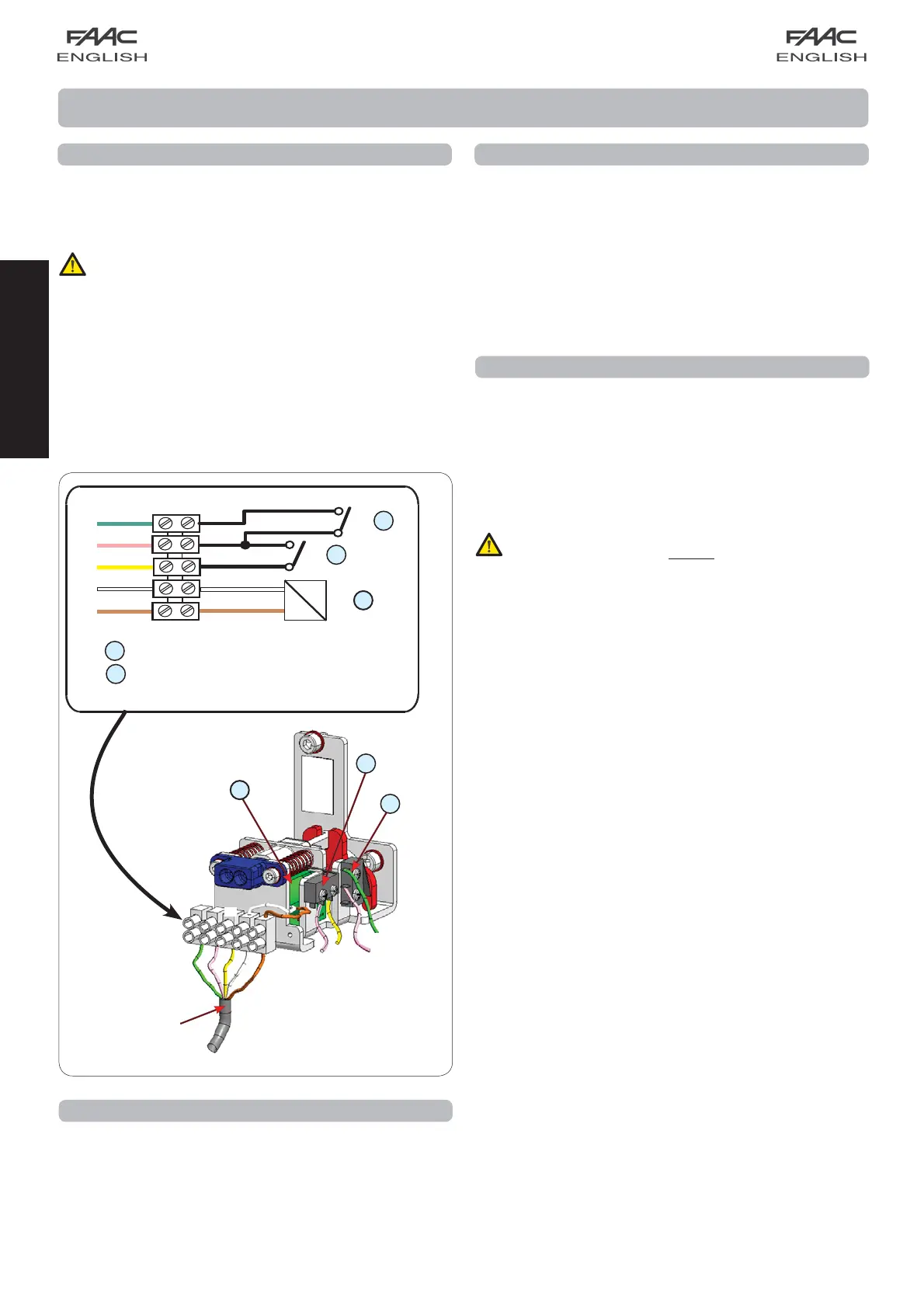

Connection of
microswitches
fig. 51
