5
A100 COMPACT
2
100
150
LH max. 2500
6
20
HA
24 ± 7,5
15
43.6
24
ENGLISH

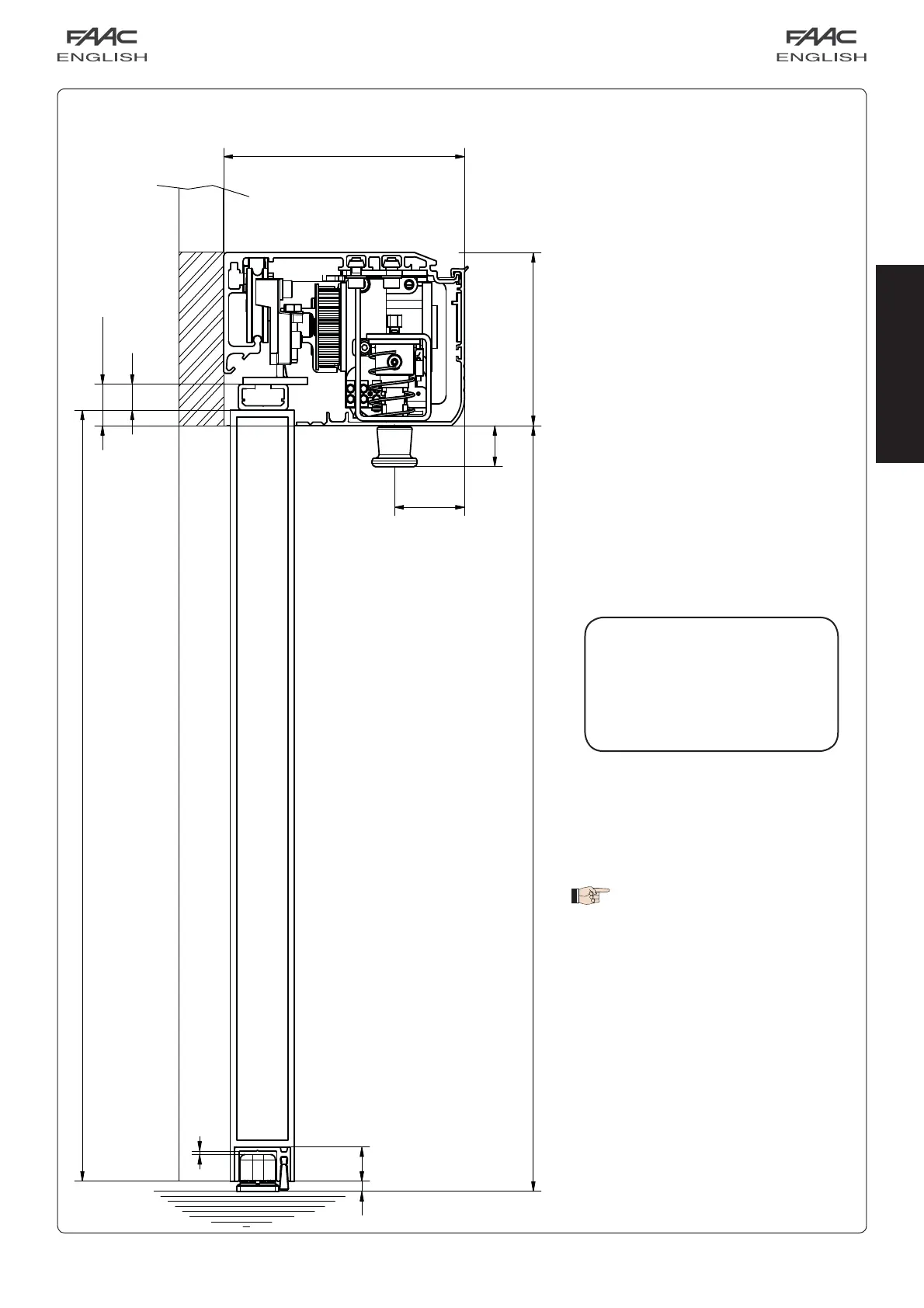

HA = (LH + 3) ± 7,5mm
HA = Leaf height
LH = height off the floor, level with
lower housing side
The calculation of leaf height refers
to the articulated sliding block. If
using the fixed sliding block, refer
to the specific instructions
fig. 3
