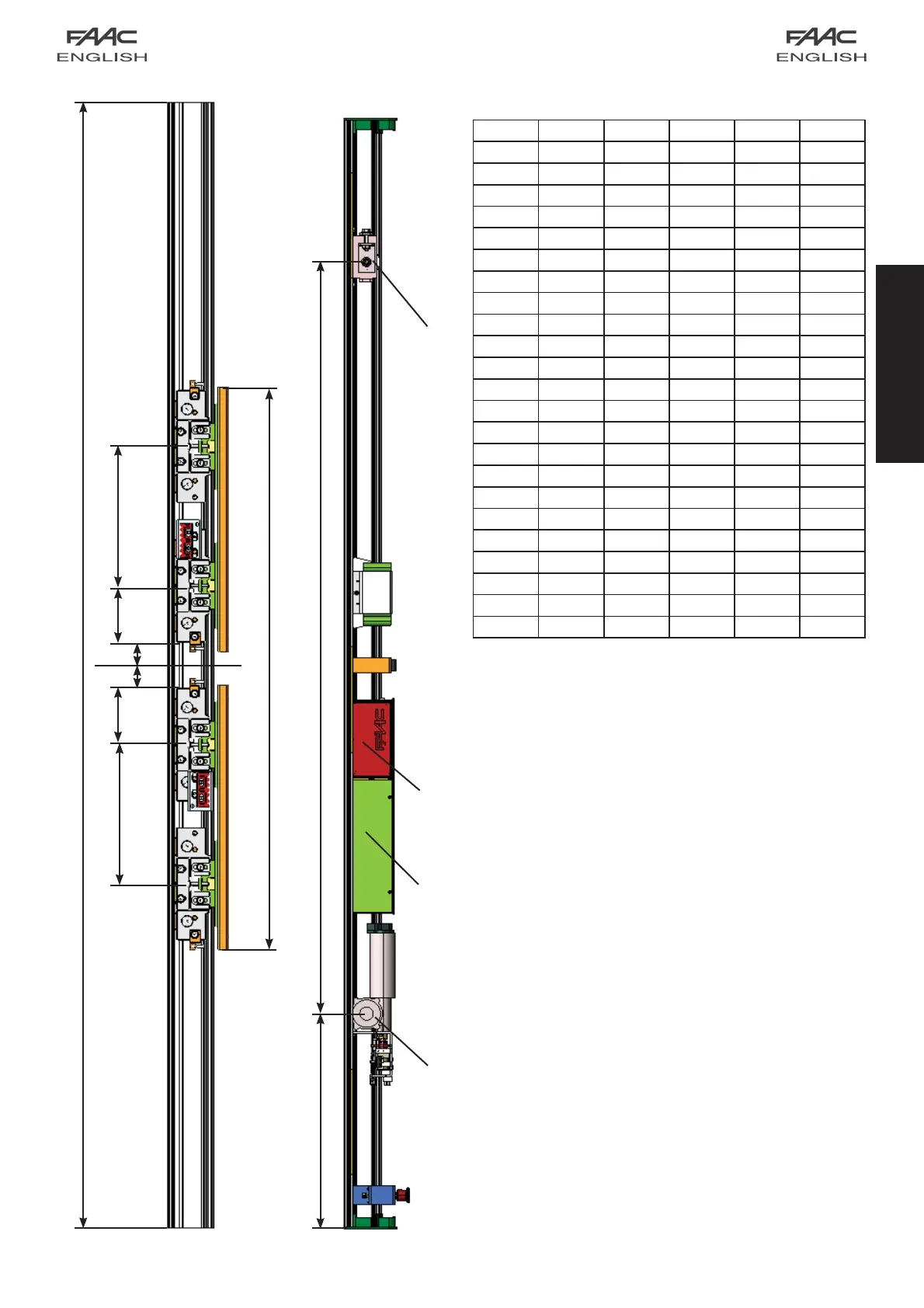

A100 COMPACT Double Leaf
Lt = Vp X 2 + 100
B = Securing distance of carriages on sliding leaf
C = Motor position dimension
D = Transmission belt length
I = Between centres distance: motor/transmission unit
Lt = Cross beam length
Vp = Transit space
100 = mm of overlap between leaves (see par.1.1B)
Vp Lt B C D I
800 1700 210 205 2742 1300
900 1900 260 255 2942 1400
1000 2100 310 305 3142 1500
1100 2300 360 355 3342 1600
1200 2500 410 405 3542 1700
1300 2700 460 455 3742 1800
1400 2900 510 505 3942 1900
1500 3100 560 555 4142 2000
1600 3300 610 605 4342 2100
1700 3500 660 655 4542 2200
1800 3700 710 705 4742 2300
1900 3900 760 755 4942 2400
2000 4100 810 805 5142 2500
2100 4300 860 855 5342 2600
2200 4500 910 905 5542 2700
2300 4700 960 955 5742 2800
2400 4900 1010 1005 5942 2900
2500 5100 1060 1055 6142 3000
2600 5300 1110 1105 6342 3100
2700 5500 1160 1155 6542 3200
2800 5700 1210 1205 6742 3300
2900 5900 1260 1255 6942 3400
3000 6100 1310 1305 7142 3500
Motor
Control
board
Power feeder
Transmission
pulley
fig. 7
