Motor Control
board
Power feeder
Transmission
pulley

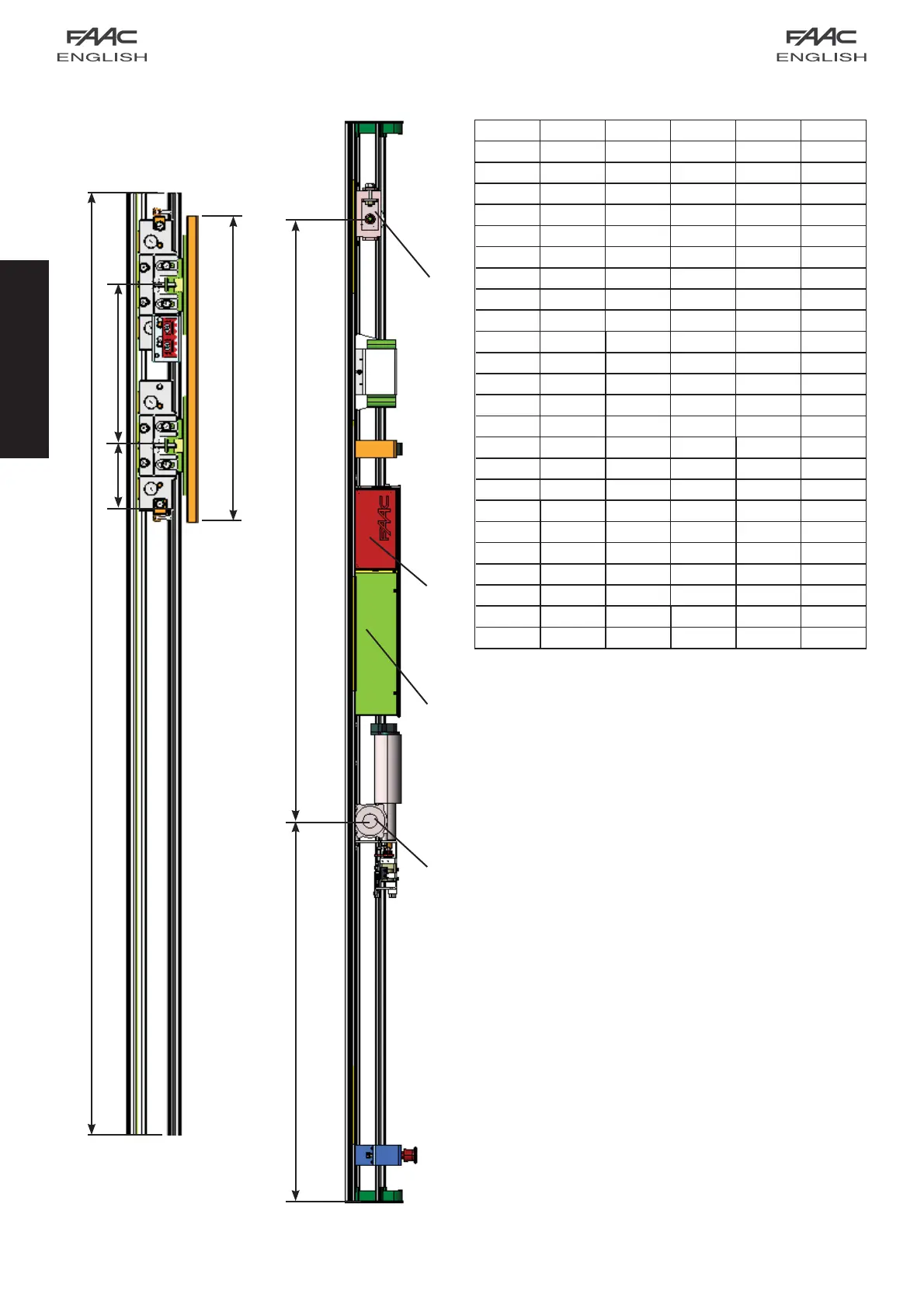

A100 COMPACT Left Opening Single Leaf
Lt = Vp X 2 + 100
B = Securing distance of carriages on sliding leaf
C = Motor position dimension
D = Transmission belt length
I =
Between centres distance: motor/transmission unit
Lt = Cross beam length
Vp = Transit space
100 = mm of overlap between leaves (see par.1.1B)
Vp Lt B C D I
700 1500 459 425 1892 875
800 1700 559 525 2092 975
900 1900 659 625 2292 1075
1000 2100 759 725 2492 1175
1100 2300 859 825 2692 1275
1200 2500 959 925 2892 1375
1300 2700 1059 1025 3092 1475
1400 2900 1159 1125 3292 1575
1500 3100 1259 1225 3492 1675
1600 3300 1359 1325 3692 1775
1700 3500 1459 1425 3892 1875
1800 3700 1559 1525 4092 1975
1900 3900 1659 1625 4292 2075
2000 4100 1759 1725 4492 2175
2100 4300 1859 1825 4692 2275
2200 4500 1959 1925 4892 2375
2300 4700 2059 2025 5092 2475
2400 4900 2159 2125 5292 2575
2500 5100 2259 2225 5492 2675
2600 5300 2359 2325 5692 2775
2700 5500 2459 2425 5892 2875
2800 5700 2559 2525 6092 2975
2900 5900 2659 2625 6292 3075
3000 6100 2759 2725 6492 3175
fig. 6
