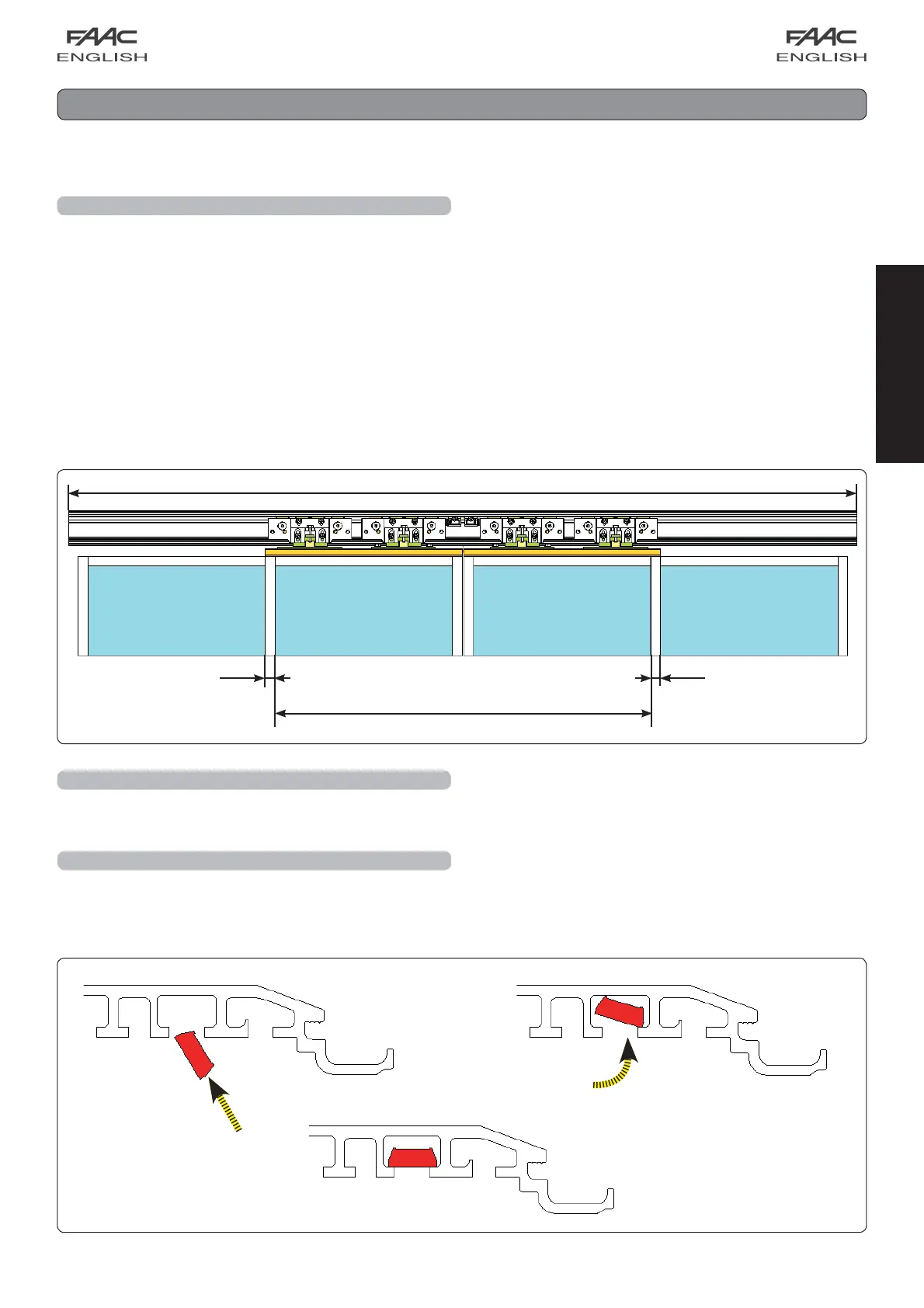

B. ASSEMBLY OF IN-KIT AUTOMATED SYSTEMS
1B PREPARING THE SUPPORT PROFILE
Support profiles are available in two sizes:
4300 mm or 6100 mm.
Cut the support profile to measure using the following formula:
LT = Vp x 2 + 100
Where:
• Lt is the length of the support profile
• VP is the transit space
• 100 are the overlap millimeters between the leaves (50 + 50)
This section describes the assembly of the in-kit automated systems. After you have prepared the necessary profiles, we advise you
to assemble and install at the same time.
The accessories are secured to the profile by using the supplied
plates. They can be fitted into their seats both laterally and on
any point of the profile (fig. 31).
1.2B SECURING COMPONENTS TO THE PROFILE
1.1B SECURING THE ON-WALL SUPPORT PROFILE
Refer to chapter 1.1A of the assembled automated system
installation.
fig. 30
fig. 31
