Fagor CNC 8058elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
4.
RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
RIOW-8DI module. Module of 8 digital inputs.
ꞏ70ꞏ
REF. 2107

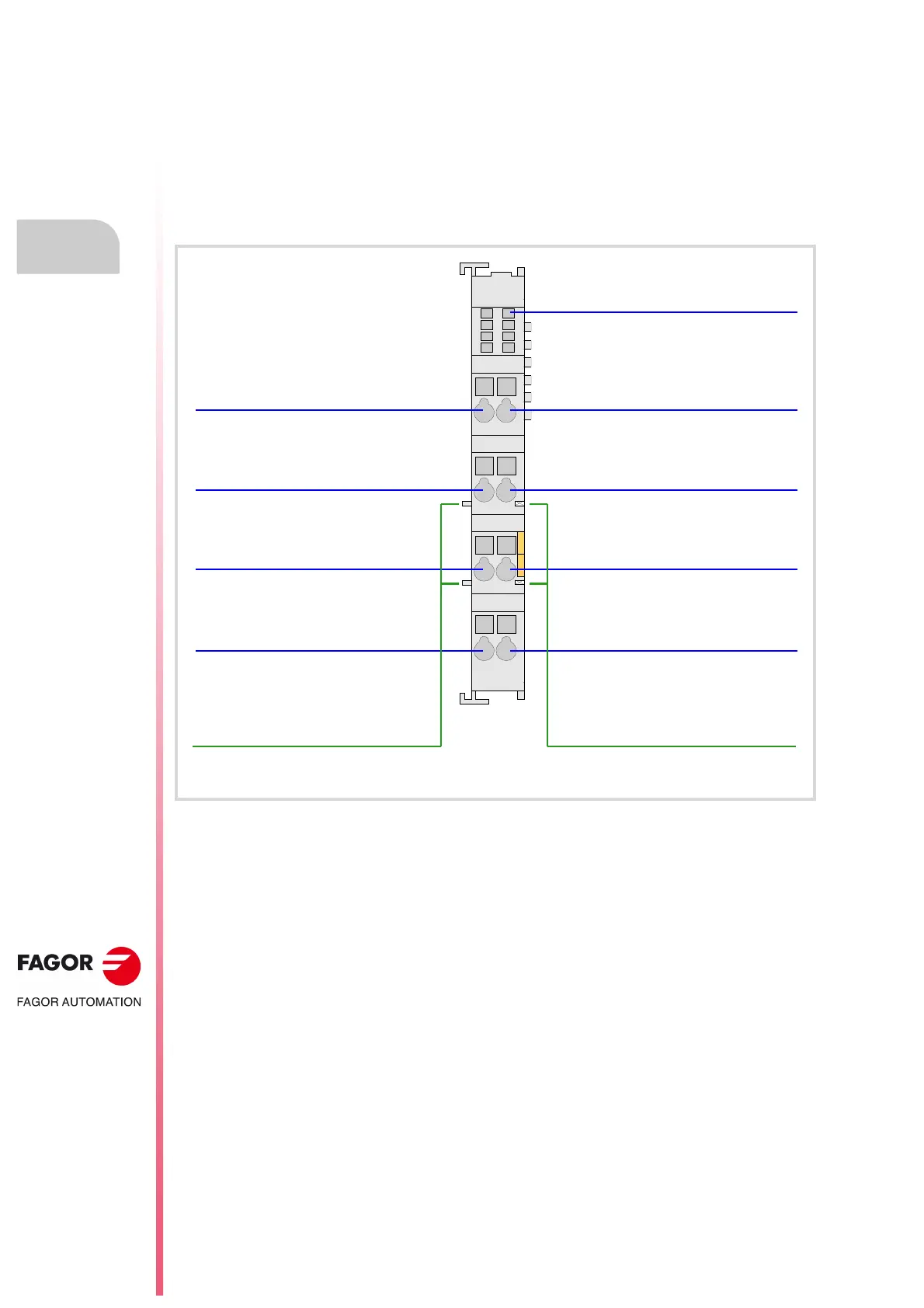

4.7 RIOW-8DI module. Module of 8 digital inputs.
Expansion module with eight 24V DC digital inputs. The module has an LED indicating the
status for each input.
The 24 V DC needed to power the module comes from the previous module (inputs, outputs
module or power supply module) through the side power supplying jumpers). Likewise, this
module can also power the next module through the same jumpers. This module, by itself,
does not generate any voltage; it just receives the voltage generated by the previous RIOW-
PS24 module and passes it on to the next module.
48
15
26
37
A
B
C
D
E
F
G
H
Digital input ꞏ3ꞏ.
Digital input ꞏ5ꞏ.
Digital input ꞏ7ꞏ.
Digital input ꞏ1ꞏ.
Digital input ꞏ4ꞏ.
Digital input ꞏ6ꞏ.
Digital input ꞏ8ꞏ.
Digital input ꞏ2ꞏ.
LED's indicating the activity of
the digital inputs.
Jumpers to power the next module.Jumpers to power the module.
