Fagor CNC 8058elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
5.
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (CANOPEN).
Connection of the digital inputs and outputs.
ꞏ98ꞏ
REF. 2107
5.6 Connection of the digital inputs and outputs.

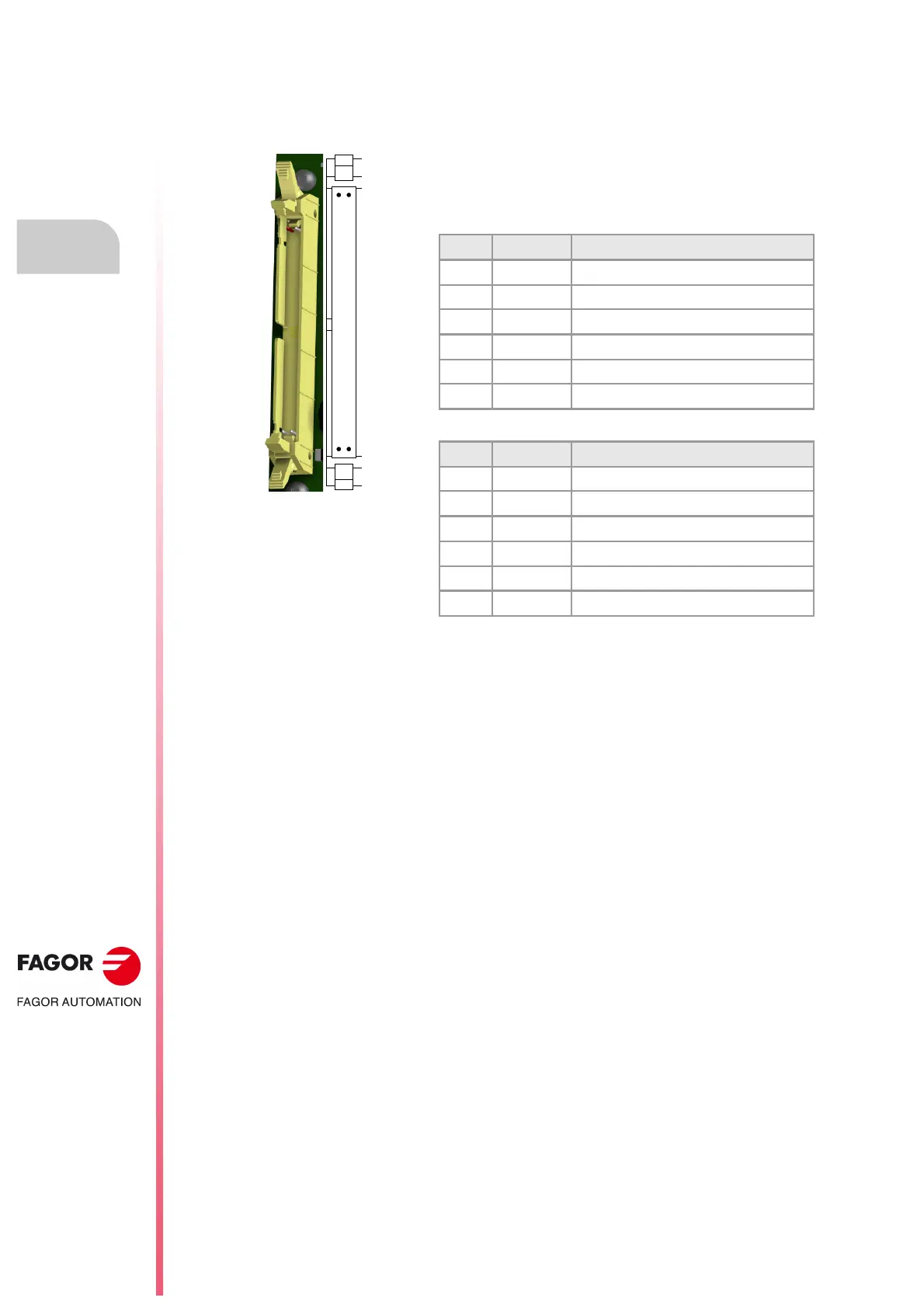

ꞏI44Aꞏ/ꞏI44Bꞏ connector pinout.
50-pin male IDC connector with a latch. Use a female
connector for ribbon cable. Maximum height of the connector,
14.5 mm.
• Connector ꞏI44Aꞏ.
• Connector ꞏI44Bꞏ.
Pin. Signal. Description.
1 GND 0 V reference signal.
2 24V_OUT 24 V output for digital inputs.
3ꞏꞏꞏ26 I1 - I24 Digital inputs.
27ꞏꞏꞏ30 - - -
31ꞏꞏꞏ46 O1 - O16 Digital outputs.
47ꞏꞏꞏ50 24V 24 V supply for digital outputs.
Pin. Signal. Description.
1 GND 0 V reference signal.
2 24V_OUT 24 V output for digital inputs.
3ꞏꞏꞏ26 I25 - I48 Digital inputs.
27ꞏꞏꞏ30 - - -
31ꞏꞏꞏ46 O17 - O32 Digital outputs.
47ꞏꞏꞏ50 24V 24 V supply for digital outputs.
2 1
50 pins
