RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.
RIOW-4AO module. Module of 4 analog outputs.
ꞏ77ꞏ
REF. 2107

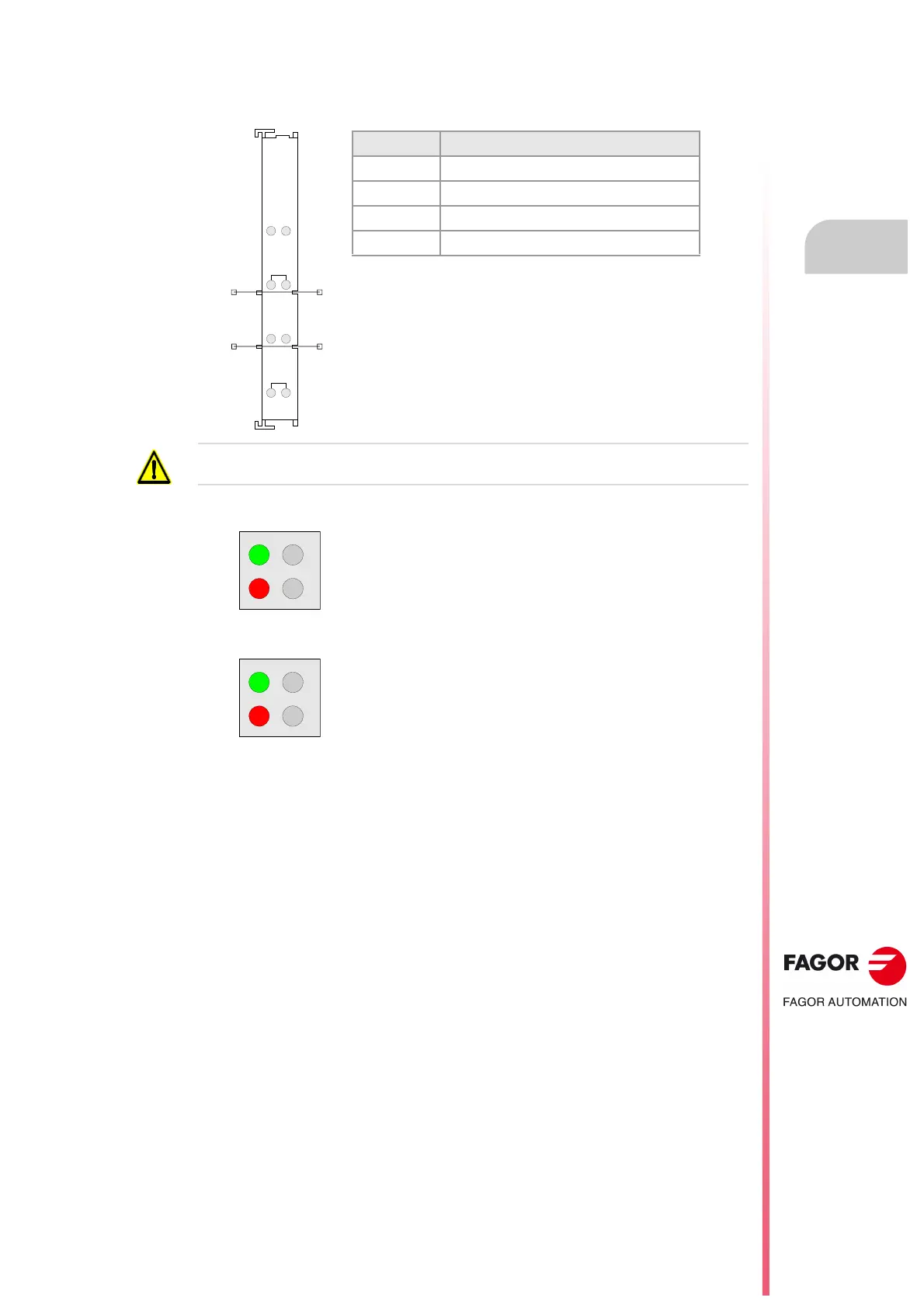

4.10.1 Elements (connectors).
Analog outputs (4 outputs).
Led ꞏBUSꞏ. Data bus status.
Led ꞏERRꞏ. Error at the outputs.
AO1
GND
AO3
GND
AO2
GND
AO4
GND
24 V
0 V
Signal Function
AO1 - AO4 Analog outputs.
GND Ground connection.
0 V Power supply.
24 V Power supply.
All ꞏGNDꞏ connectors are joined together internally.
Always connect the shield of the cable to the ground plate using a metallic clamp.
Green LED's. The LED turns on when transmission at the bus is
OK.
Red LED's. The LED turns on if there is an overload or a short-
circuit to ground at any of the outputs.
