Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
3.
RIO5 REMOTE MODULES. (CANOPEN PROTOCOL).
Digital inputs and digital outputs (single module).
ꞏ38ꞏ
REF. 2107

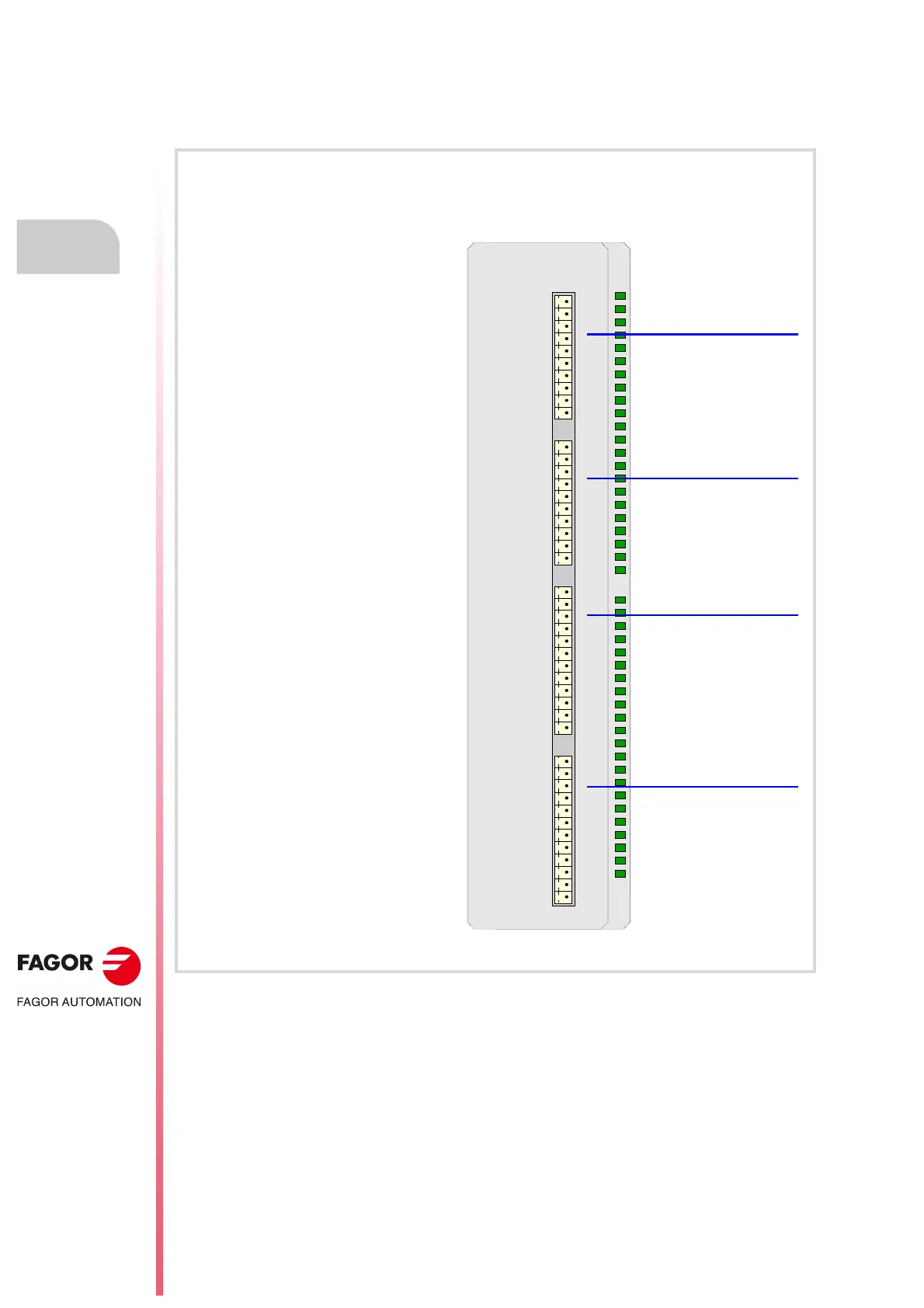

3.3 Digital inputs and digital outputs (single module).
This module is used to expand the digital inputs and outputs (remote I/O). Each module has
24 digital inputs and 16 digital outputs.
DIGITAL IN/OUT
X1
X2
X3
X4
I13
I24
I1
I12
GND
O16
O9
+24V
GND
O8
O1
+24V
Digital inputs and digital outputs
(single module).
Connector ꞏX1ꞏ.
8 digital outputs.
Connector ꞏX2ꞏ.
8 digital outputs.
ꞏX3ꞏ connector.
12 digital inputs.
Connector ꞏX4ꞏ.
12 digital inputs.
